Atlas Automotive Equipment

Atlas Air Force AF13 13HP 30-Gallon Gas Air Compressor

In stock

SKU: ATEMPAF13G

$3,499.00

Delivery Option

Warehouse Pickup Ship to My Address

Why Shop With Us?

✓ Authorized Dealers
✓ FREE & FAST Shipping: In Stock and Ready to Ship
✓ No Sales Tax (Exl MO Residents)
✓ Questions? Call Team Member: (620)202-7711

Description

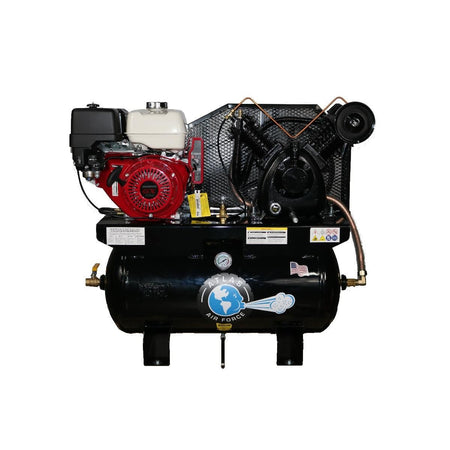

The Atlas Air Force AF13 is a gas-powered, two-stage truck-mount air compressor built around a Honda GX390 13-HP electric-start engine and a 30-gallon horizontal tank made in the USA. It is designed for mobile service work where shop power is not available and where the tools on the truck still need to run all day.

The compressor operates between 145 and 175 PSI and delivers 25 CFM at 90 PSI and 19 CFM at 175 PSI through a 3/4" NPT outlet, paired with a two-stage, two-cylinder pump and a heavy-duty metal belt guard. The Honda engine is EPA / CARB emission compliant, 4-cycle air-cooled single-cylinder, and starts on a keyed electric switch with a recoil pull-handle as backup. A finned tank-inlet tube is used to reduce water accumulation in the tank.

Atlas AF13 component callouts: Honda electric-start motor, two-stage pump, air filter, pressure gauge, air outlet, water drain valve — Component layout on the Atlas Air Force AF13.

Features

Honda GX390 13-HP engine with keyed electric-start switch and recoil pull-handle backup
Two-stage, two-cylinder pump rated at 145–175 PSI working pressure
30-gallon horizontal tank, made in the USA
Heavy-duty metal belt guard over the flywheel and belt drive
Finned tank-inlet tube for reduced tank water accumulation
EPA / CARB emission-compliant 4-cycle air-cooled single-cylinder engine
Set of vibration-isolation pads included (four pads, anchor-through design)

Honda GX390 electric-start engine on the Atlas AF13 with keyed switch and 1.6-gallon fuel tank — Honda GX390 13-HP electric-start engine with keyed switch.

What's Included

Atlas Air Force AF13 air compressor unit (engine + pump + 30-gallon tank assembly)
Heavy-duty metal belt guard (installed)
Finned tank-inlet tube (installed)
Set of vibration-isolation pads (four pads, 4" × 4" × 7/8", anchor-through design; anchors not included)
Owner's manual and parts list

Four 4-inch square by 7/8-inch rubber vibration dampers included with the Atlas AF13 — Vibration-isolation pads included — one per tank foot.

Specifications

Atlas AF13 air compressor dimensions: 46 inches length, 19 inches width, 37 inches height — Overall dimensions: 46" × 19" × 37".

Atlas Air Force AF13 Specifications
Engine	Honda GX390, 4-cycle air-cooled single cylinder, EPA / CARB emission compliant
Engine output	13 HP running
Starting	Keyed electric-start with recoil pull-handle backup
Compressor pump	Two-stage, two-cylinder
Pressure setting	145–175 PSI
Delivered CFM @ 90 PSI	25
Delivered CFM @ 175 PSI	19
Tank capacity	30 gallons, horizontal, made in the USA
Air outlet	3/4" NPT
Belt guard	Heavy-duty metal, installed
Tank inlet	Finned tube for reduced water accumulation
Overall dimensions	46" L × 19" W × 37" H
Shipping weight	627 lbs
Package dimensions	48" × 24" × 44" (palletized)
Vibration pads	Four pads, 4" × 4" × 7/8" (included; anchors not included)

Warranty

1-year parts-only warranty through Atlas Automotive Equipment.

FAQ

Is the AF13 truck-mountable for mobile service work?

Yes. The AF13 is built on a single horizontal-tank skid and is sized for service-truck deck mounting. Package footprint on the pallet is 48" × 24" × 44" and total shipping weight is 627 lbs.

Is the 30-gallon tank made in the USA?

Yes. Atlas specifies the AF13 tank as a 30-gallon horizontal steel tank made in the USA.

Does the engine have both electric-start and recoil backup?

Yes. The Honda GX390 on the AF13 has a keyed electric-start switch with a recoil pull-handle as backup; both are visible on the engine.

What is included with the compressor?

The AF13 ships with the assembled compressor unit, an installed heavy-duty metal belt guard, an installed finned tank-inlet tube, a set of four vibration-isolation pads (4" × 4" × 7/8"), and the owner's manual and parts list.

How does the AF13 ship?

The AF13 ships freight on a 48" × 24" × 44" pallet at 627 lbs. Contact MGS at sales@mygaragesupplies.com or 307-381-1810 for delivery scheduling.

Atlas Air Force AF13 shrink-wrapped on a 48 by 24 inch pallet, 44 inches tall, ready to ship or be picked up — AF13 palletized for freight or warehouse pickup.
