Atlas Edge TD6000CNAK2 Mobile 2 Heavy-Duty Truck & Trailer Alignment System

In stock
SKU: ATEATEDGE-TD6000CNAK2
Regular price $40,999.00
Delivery Option
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Why Shop With Us?

✓ Authorized Dealers
✓ FREE & FAST Shipping: In Stock and Ready to Ship
✓ No Sales Tax (Exl MO Residents)
✓ Questions? Call Team Member:  (620)202-7711

Description

The Atlas Edge TD6000CNAK2 is a portable heavy-duty truck alignment system built around the Ravaglioli "Sprint" Mobile 2 platform. The full kit lives in two industrial-grade cases on casters with built-in calibration plates, so the same tools that align a fleet truck in your bay can be wheeled out to a customer site without breaking the kit down. It handles trucks, trailers, buses, and coaches across 2, 3, 4, and 5 axle configurations.

Measurement is wireless. The four FastClamp wheel heads send data to the included rugged Windows 10 tablet over Wi-Fi and Bluetooth, and the system supports no roll-back alignments — useful when you're working on a parked trailer or in a bay with limited rolling clearance. Two-Head Steer Axle Mode lets a single technician complete a steer-axle measurement without repositioning sensors mid-job, and the included TEQ-LINK app exports printouts and reports by email.

The Sprint Mobile 2 is made in Europe and ships with a 2-year limited parts warranty, free software updates, and remote technical support. Software updates do not include the vehicle specifications database.

Features

  • Ravaglioli "Sprint" Mobile 2 heavy-duty truck alignment platform
  • No roll-back alignment for trucks and trailers
  • Handles 2, 3, 4, and 5 axle configurations

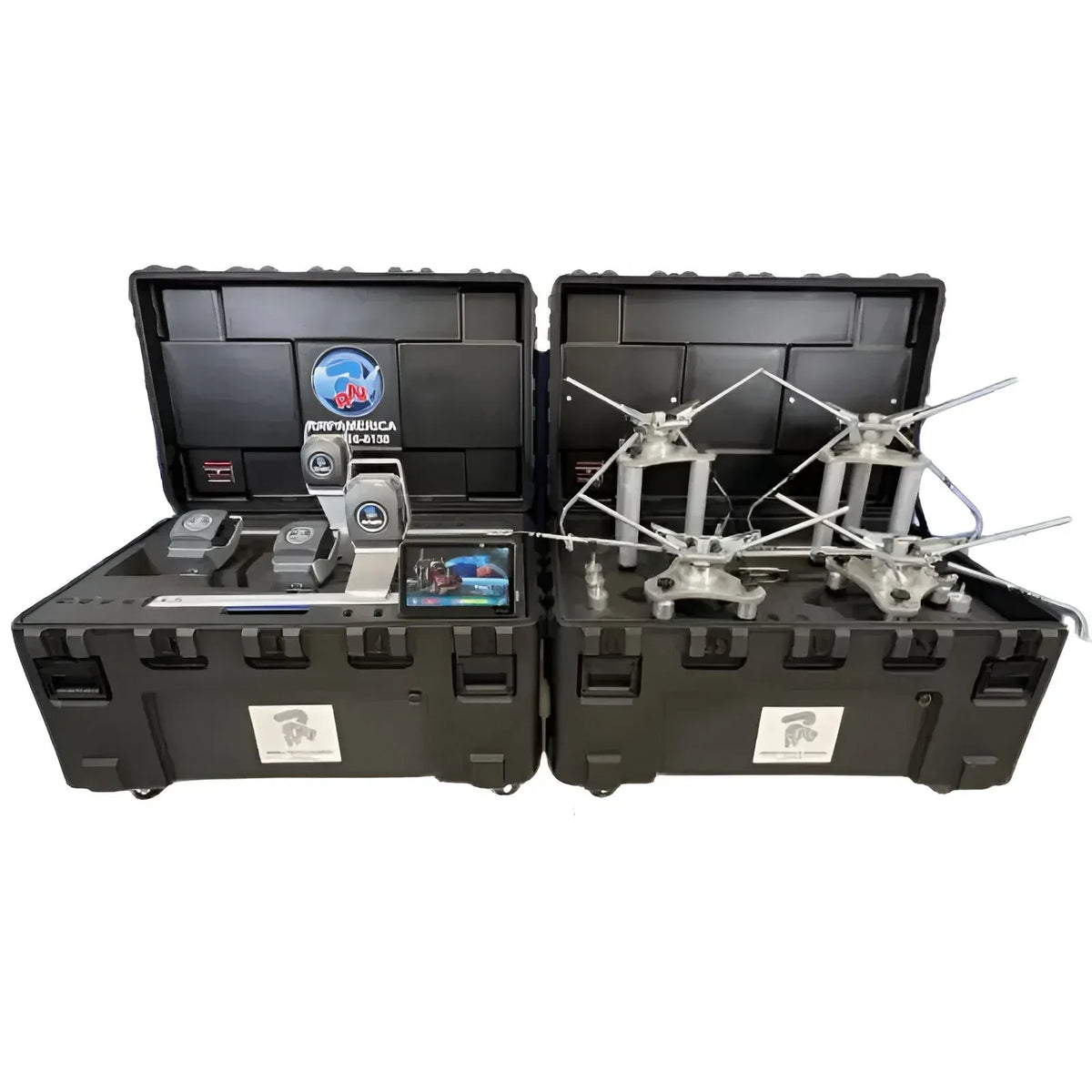

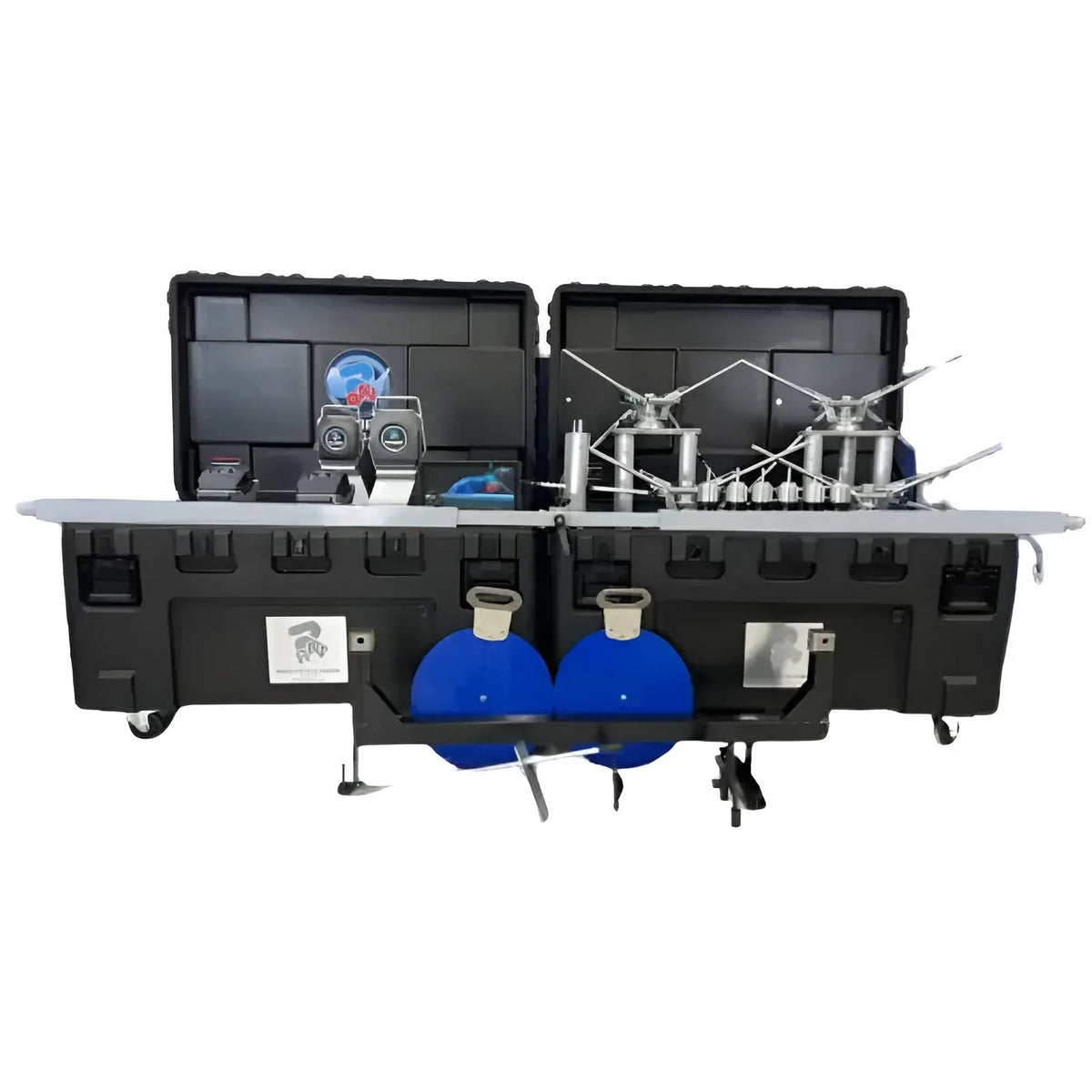

  • Two custom heavy-duty cases on casters with built-in calibration plates
  • Wi-Fi operation with Bluetooth data transmission
  • TEQ-LINK app for exporting printouts and reports by email
  • Two-Head Steer Axle Mode for single-technician steer-axle alignments
  • Rugged Windows 10 tablet with hand strap, included
  • Four non-runout FastClamp wheel clamps, included
  • Twelve-piece standoff tube kit (six short, six long), included
  • Pair of superlight alloy alignment turn tables, included
  • Trailer alignment package and calibration package, included
  • Brake pedal depressor and steering wheel lock, included
  • Vast vehicle database with free software updates (vehicle specifications not included)
  • Remote technical support
  • Made in Europe
  • 2-year limited parts warranty

Specifications

Atlas Edge TD6000CNAK2 Mobile 2 Specifications
System type Portable heavy-duty truck alignment
Vehicle range Trucks, trailers, buses, coaches
Axle configurations 2, 3, 4, and 5 axle
Wireless Wi-Fi and Bluetooth
Software TEQ-LINK app on Windows 10 tablet
Wheel clamps 4 non-runout FastClamp
Roll-back required No
Steer axle mode Two-Head
Cases Two industrial cases on casters with built-in calibration plates
Origin Made in Europe
Weight 400 lbs
Warranty 2-year limited parts
2-year limited parts warranty does not cover damage from abuse, neglect, wear items, consumables, or onsite visits. Free software updates do not include vehicle specifications.

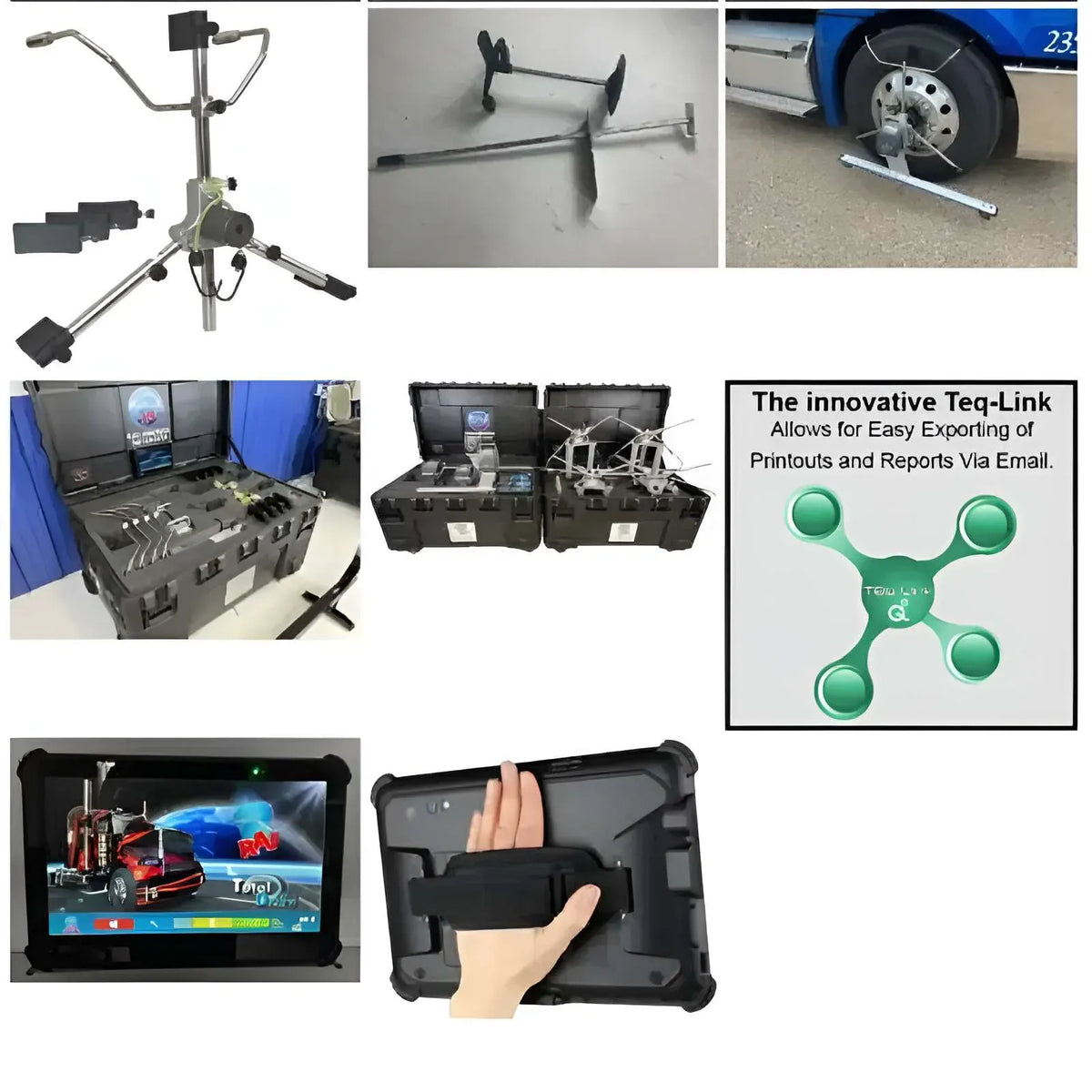

What's Included

  • Two custom industrial cases on casters with built-in calibration plates
  • Rugged Windows 10 tablet
  • 4 non-runout FastClamp wheel clamps
  • 12-piece standoff tube set (6 short, 6 long)
  • Pair of superlight alloy alignment turn tables
  • Trailer alignment package
  • Calibration package
  • 1 brake pedal depressor
  • 1 steering wheel lock
  • TEQ-LINK app

Shipping & Logistics

The TD6000CNAK2 ships via freight at approximately 400 lbs total system weight. Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53' truck.

Documents

Manual and technical documents available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
