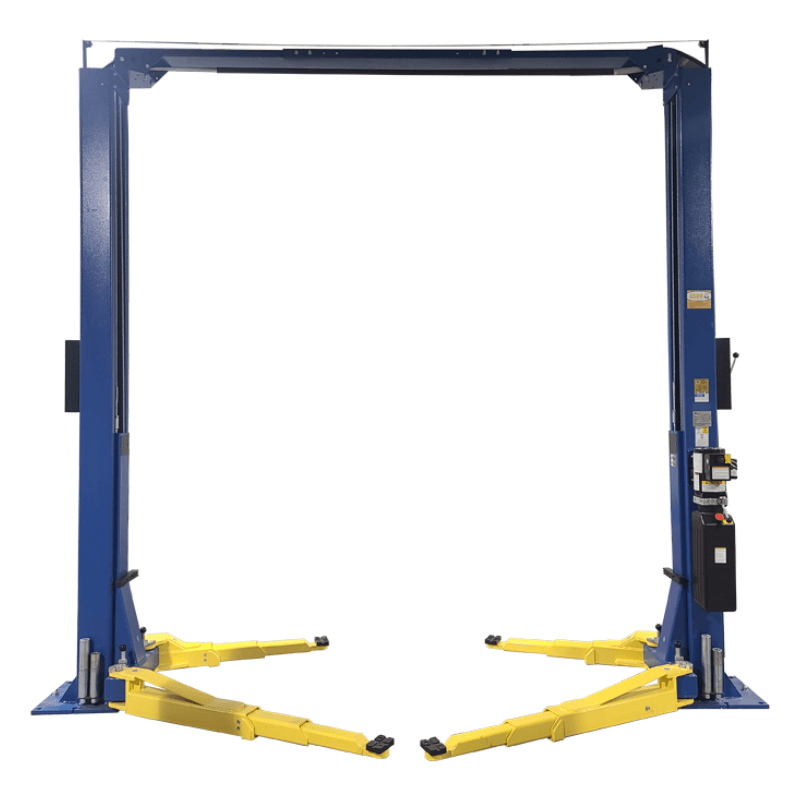

BR10-20H-33 ALI Certified 2 Post Lift
The BR10-20H-33 10,000lb ALI Certified 2-Post Overhead Lift is a top-tier lifting solution designed for professional automotive service shops that demand safety, versatility, and certified performance. With a 10,000 lb lifting capacity and dual direct drive hydraulic cylinders, this lift delivers smooth, efficient, and powerful lifting for a broad range of vehicles. Whether you're performing general maintenance, heavy repairs, or bodywork, this lift accommodates both symmetric and asymmetric lifting thanks to its compact three-stage arm design.
Built for convenience and durability, the BR10-20H-33 comes equipped with automatic safety locks, single-point lock release, and automatic arm restraints to ensure secure lifting with minimal user input. The matte powder coat finish offers a sleek look and enhanced resistance against shop wear and corrosion. Height extension adapters (1.5", 3", and 6") are included, and the lift is compatible with an optional 2-foot height extension kit for taller ceiling installations. With ALI certification and a 1-year warranty, this lift is ideal for serious shops looking for reliability and peace of mind.
BR10 20H 33 Specification
-
Max Capacity: 10,000 lbs
-
Maximum Lifting Height: 78.0"
-
Minimum Lifting Height: 4.3"
-
Overall Height (Adjustable): 155.9" – 162.8"
-
Overall Width (Adjustable – 3 Settings): 140.4" – 152.2"
-
Drive-Thru Clearance (Adjustable – 3 Settings):
-
Narrow: 88.15"
-
Medium: 94.06"
-
Wide: 99.96"
-
Inside Column Width (Adjustable): 111.42" – 123.23"
-
Outside Column Width (Adjustable): 140.9" – 152.7"
-
Maximum Arm Reach: 41.9"
-
Front Clearance: 15.5"
-
Base Plate Thickness: 0.8"
-
Power / Motor: 220V, 3 HP, 12A, Single Phase, 60Hz
-
Shipping Weight (Lift): 2,100 lbs
-
Shipping Dimensions (Lift): 142" × 23" × 44"
-
Optional Height Kit Shipping Dimensions: 31" × 18" × 17"
-
Optional Height Kit Weight: 200 lbs
- Concrete Requirements: Minimum of 8"-3000psi
BR1020H33 10,000 lb 2-Post Lift Special Features
-
ALI Certified for safety and reliability
-
10,000 lb lifting capacity suitable for cars, trucks, and SUVs
-
Dual direct drive hydraulic cylinders for powerful lifting
-
Automatic safety locks with single-point lock release
-
Automatic arm restraints for secure load holding
-
Compact 3-stage front and rear arms for symmetric/asymmetric lifting
-
Matte powder coat finish for corrosion resistance
-
Includes 1.5”, 3”, and 6” height extension adapters
-
Two-stage drop-in pads for flexible lifting points
-
Optional 2-foot height extension kit available (BR10-2OH-33-EXT)
- Daytona 5-2-1 Warranty
- 5 Year Structural
- 2 Year Electric, Cylinders, Seal Kits
- 1 Year Defective Parts
