Daytona LFPP9 9,000lb 4 Post Parking Lift
Couldn't load pickup availability
Why Shop With Us?
✓ Authorized Dealers
✓ FREE & FAST Shipping: In Stock and Ready to Ship
✓ No Sales Tax (Exl MO Residents)
✓ Questions? Call Team Member: (620)202-7711
LFPP9 9,000lb 4-Post Parking Lift

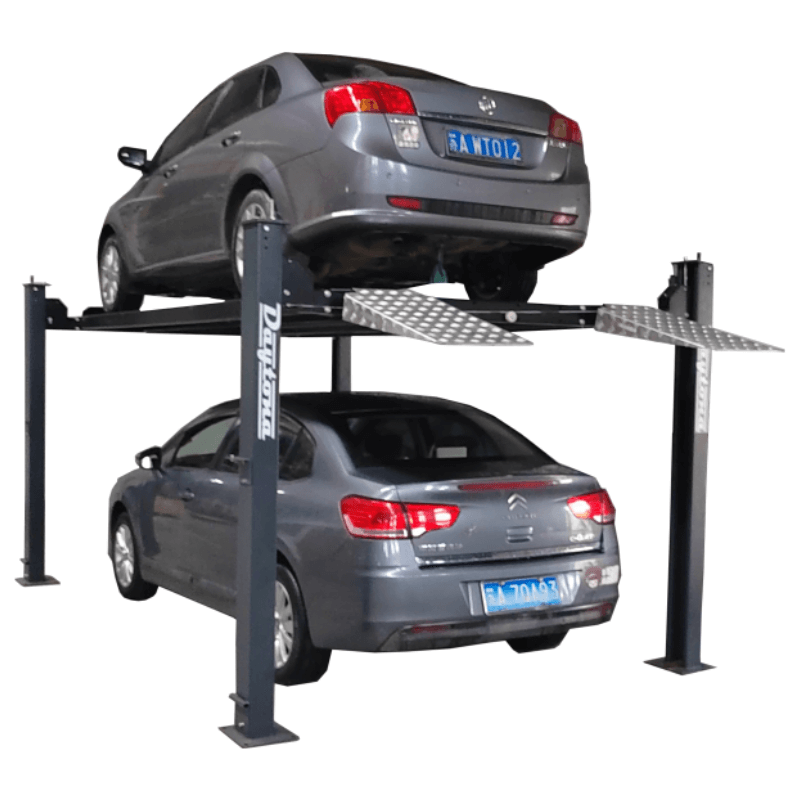

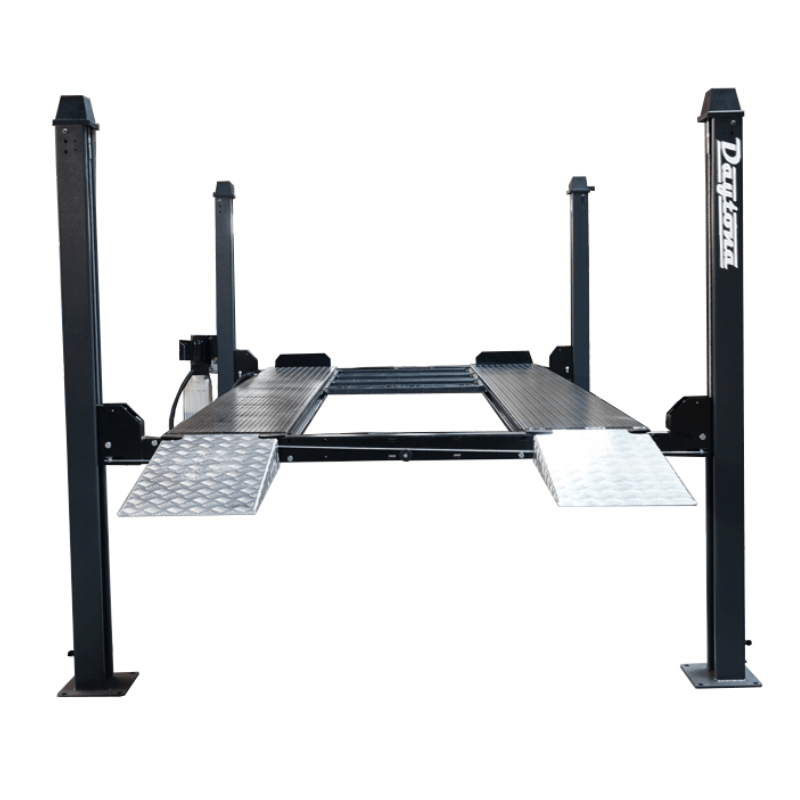

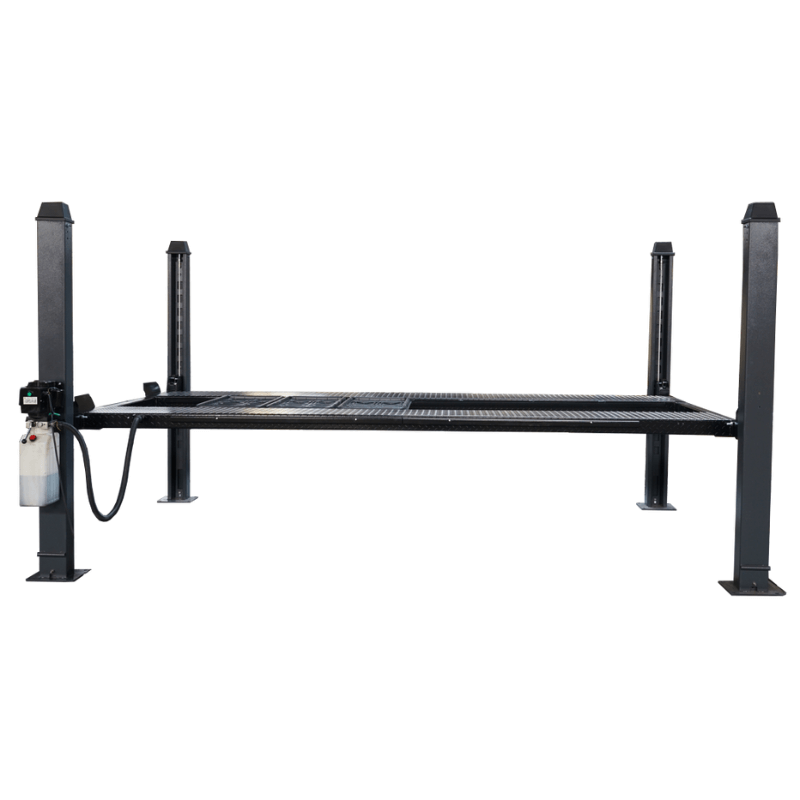

The Daytona LFPP9 9,000lb 4-Post Parking Lift is the perfect solution for vehicle storage and light-duty service in both residential and commercial garages. Designed with safety, convenience, and durability in mind, this lift supports up to 9,000 lbs, making it suitable for most passenger vehicles and light trucks. Its compact footprint, combined with generous clearance under the runways, allows for easy storage of a second vehicle underneath—ideal for maximizing space in tight garages or increasing capacity in professional settings.
Engineered for safety and reliability, the LFPP9 features four mechanical locking devices, each with both primary and secondary safety locks, as well as a single-point manual safety release for straightforward operation. A heavy-duty 3” cylinder and aircraft-grade lifting cables ensure long-lasting, smooth lifting performance. The removable aluminum tilting approach ramp adds user-friendly access, while the matted powder coat finish protects against rust and wear over time. Whether you're storing your prized car or servicing a vehicle, the LFPP9 delivers stability, safety, and value in one robust lift package.
4-Post Parking Lift LFPP9 Specification
-
Max Capacity: Not specified
-
Overall Length: 179.7"
-
Overall Width: 104.1"
-
Overall Height: 91.3"
-
Maximum Lifting Height: 70.9"
-
Minimum Lifting Height: 47.7"
-
Upper Structure Height: 71.2"
-
Drive-Thru Clearance Width: 81.8"
-
Inside Width (Between Posts): 87.3"
-
Side Clearance: 8.4"
-
Runway Length: 164.2"
-
Runway Width: 4.6"
-
Runway Surface Height: 3.4"
-
Runway Overall Thickness: 3.74"
-
Top Beam Height Above Platform: 19.3"
-
Lower Structure Height: 6.3"
-
Side Column Height (Lower): 49.2"
-
Post/Base Extension Height: 11.8"
-
Cross Beam Clearance: 6.6"
-
Base Plate Thickness: 0.4"
-
Optional Wheel Kit Dimensions: 40" x 24" x 10"
-
Optional Wheel Kit Weight: 120 lbs
-
Motor & Power: 120V, 1.5 HP, 26 Amp, 1 Phase, 60 Hz
- Concrete Requirements: Minimum of 4"-3000psi
-
Pallet Dimension:
- 177" L x 22" W x 28" H
- 1,900lbs
LFPP9 9,000lb 4-Post Parking Lift Special Features
-
9,000 lb lifting capacity for vehicle storage and light service
-
Four mechanical locks with both primary and secondary safety mechanisms
-
Single-point manual safety release for easy operation
-
Removable tilting aluminum approach ramp for convenience
-
Heavy-duty 3” hydraulic cylinder for powerful lifting
-
Aircraft-grade lifting cables for strength and reliability
-
Matted powder coat finish for long-lasting durability
-
Compact design ideal for home garages and professional shops
-
Ample clearance under runways for storing a second vehicle
-
Includes:
-
Drip Trays & Jack Tray
-
-
Sold Separately:
- Caster Kit
-
Daytona 5-2-1 Warranty
- 5 Year Structural
- 2 Year Electric, Cylinders, Seal Kits
- 1 Year Defective Parts
Daytona LFPP9 Manual
Daytona LFPP9 Optional Item Sold Separately:
