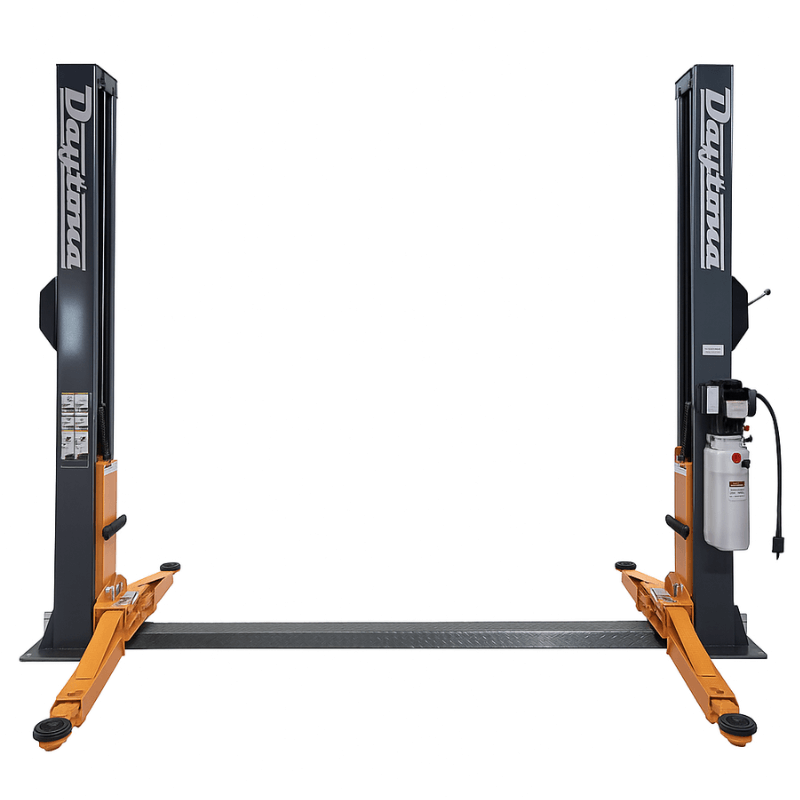

LTPF12 12,000 lb 2 Post Lift - Base Plate
The Daytona LTPF12 2-Post Floorplate Lift is engineered for professionals who demand strength, safety, and reliability. With a robust 12,000 lb lifting capacity, it easily accommodates cars, trucks, and SUVs, making it perfect for automotive repair shops and service centers.
Built with dual hydraulic cylinders and a durable chain drive system, the LTPF12 ensures smooth and stable lifting performance. Its automatic safety locks and single-point lock release offer maximum operator safety and convenience during maintenance tasks. The high polymer polyethylene slide blocks minimize wear, extending the life of the lift.
Designed for both performance and durability, this lift includes screw-up pads, truck adapters, and rubber door guards to protect vehicles during operation. The powder-coated finish resists corrosion, while the height limit switch prevents accidental over-travel. For reliability, safety, and long-lasting performance, the Daytona LTPF12 is the lift you can trust.

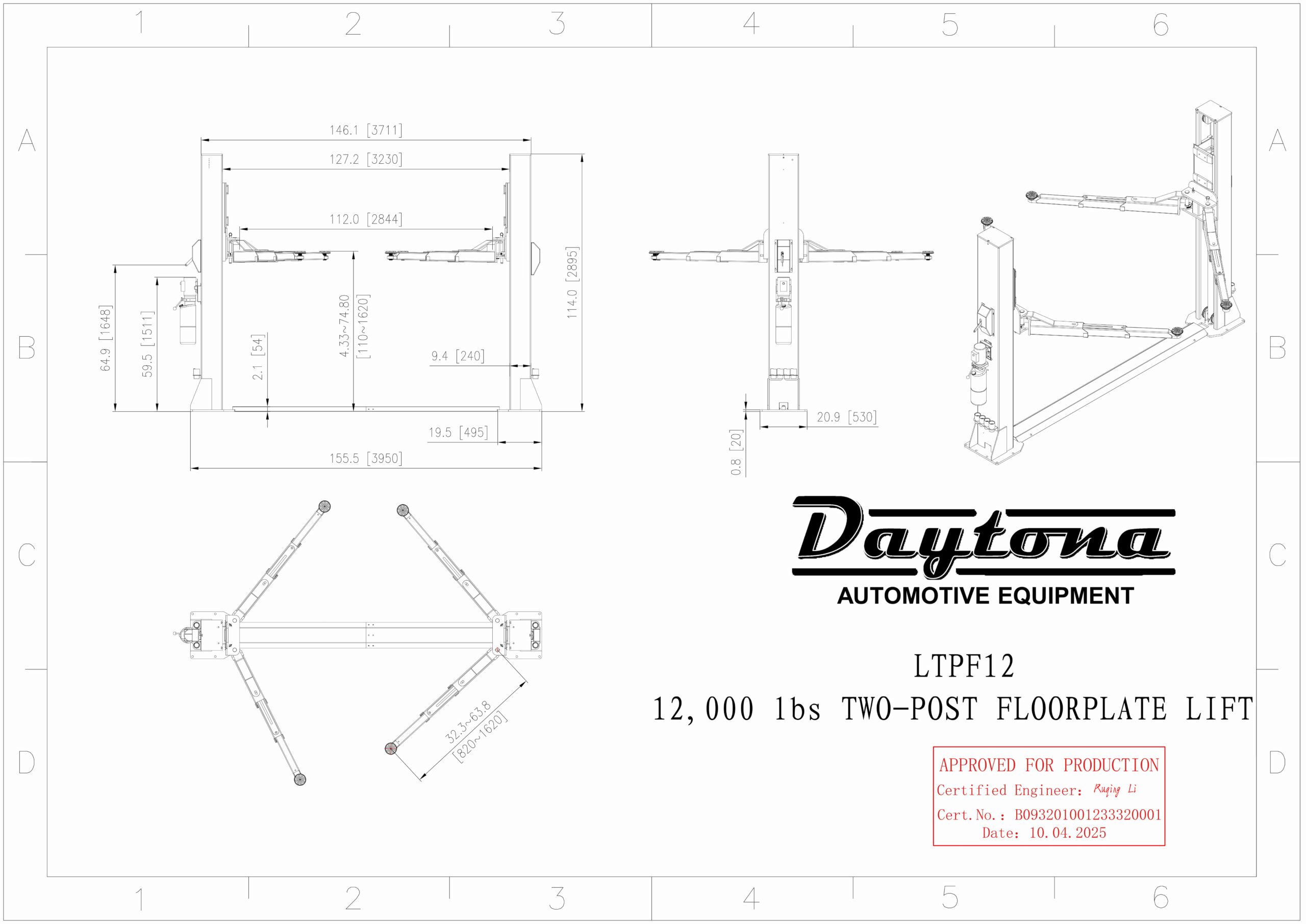

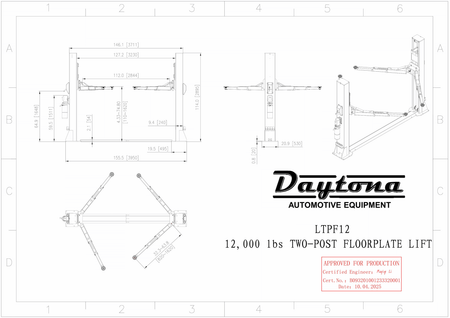

2-Post Lift LTPF12 Specification
-
Max Capacity: 12,000 lbs
-
Maximum Lifting Height: 74.8"
-
Minimum Lifting Height: 2.1"
-
Overall Height: 114.0"
-
Overall Width: 155.5"
-
Drive-Thru Clearance: 112.0"
-
Outside Column Width: 127.2"
-
Maximum Arm Reach: 146.1"
-
Front Clearance: 9.4"
-
Base Plate Thickness: 20.9"
-
Power / Motor: 240V, 3 HP, 13A, Single Phase, 60Hz
-
Shipping Weight (Lift): 2,200 lbs
-
Shipping Weight (Pump): 60 lbs
-
Concrete Requirements: Minimum of 4"-3500psi
-
Shipping Dimensions (Lift): 116" × 22" × 39"
-
Shipping Dimensions (Pump): 31" × 12" × 11"
LTPF12 12,000lb 2-Post Floorplate Lift Special Features
-
Heavy-duty 12,000 lb lifting capacity for large vehicles
-
Automatic safety locks with easy single-point release
-
Smooth and reliable dual hydraulic cylinder operation
-
Automatic safety locks with easy single-point release
-
Wear-resistant slide blocks ensure long-term performance
-
Drive System: Dual chain drive hydraulic cylinders
-
Pad Type: Screw-up pads (Truck Adapters Included)
-
Durable powder-coated finish prevents rust and corrosion
-
Includes screw-up pads and truck adapters for versatility
-
Rubber door guards protect vehicle panels during lifts
-
Height limit switch for safe lifting range
-
Three-stage front arms provide flexible positioning
