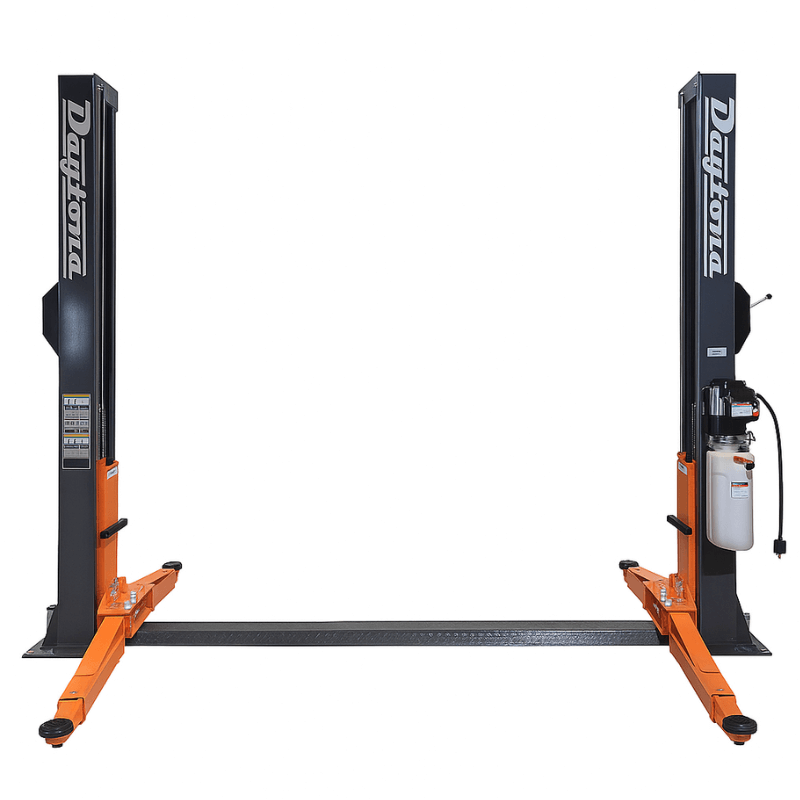

LTPF9 9,000lb 2 Post Lift
The Daytona LTPF9 2-Post Floorplate Lift is built for reliability, safety, and performance in any professional or home automotive workshop. With a 9,000 lb lifting capacity, it provides the strength to handle most cars, light trucks, and SUVs with ease.
This lift features a chain-over-hydraulic system for smooth and controlled lifting, along with automatic safety locks and a single-point lock release for secure operation. High polymer polyethylene slide blocks offer superior wear resistance, reducing maintenance and ensuring long-lasting durability.
Designed for versatility and operator convenience, the LTPF9 includes screw-up pads, rubber door guards, and standard truck adapters. The height limit switch and powder-coated finish add safety and longevity, while the three-stage front arms make vehicle positioning simple and precise.
2 Post Lift LTPF9 Specification
-
Max Capacity: 9,000 lbs
-
Maximum Lifting Height: 74.8"
-
Minimum Lifting Height: 4.5"
-
Overall Height: 110.0"
-
Overall Width: 131.2"
-
Drive-Thru Clearance: 98.9"
-
Width Between Columns: 110.5"
-
Internal Base Width: 124.6"
-
Long Arm Reach: 32.7" to 51.9"
-
Short Arm Reach: 22.8" to 41.3"
-
Motor Mounting Height: 62.6"
-
Pump Reservoir Height: 41.7"
-
Column Width: 11.2"
-
Base Plate Depth: 16.9"
-
Base Plate Width: 14.8"
-
Floorplate Height: 0.6"
-
Overhead Extension: 7.0"
-
Power: 240V / 3HP / 13A / PH1 / 60Hz
Concrete Requirements: Minimum of 4"-3500psi
-
Shipping Dimensions (Lift): 114″ L × 18″ W × 30″ H – 1,250 lbs
-
Shipping Dimensions (Pump): 31″ L × 12″ W × 11″ H – 60 lbs
LTPF9 9,000lb 2-Post Floorplate Lift Special Features
-
Strong 9,000 lb lifting capacity for versatile use
-
Chain-over-hydraulic design ensures smooth lift operation
-
Automatic safety locks with single-point release for convenience
-
Arm Style: Asymmetric
-
Wear-resistant slide blocks extend service life
-
Powder-coated finish resists rust and corrosion
-
Three-stage front arms for flexible vehicle positioning
-
Rubber door guards protect vehicle panels
-
Height limit switch enhances operational safety
-
Includes truck adapters and screw-up pads for added versatility
Daytona LTPF9 Manual
