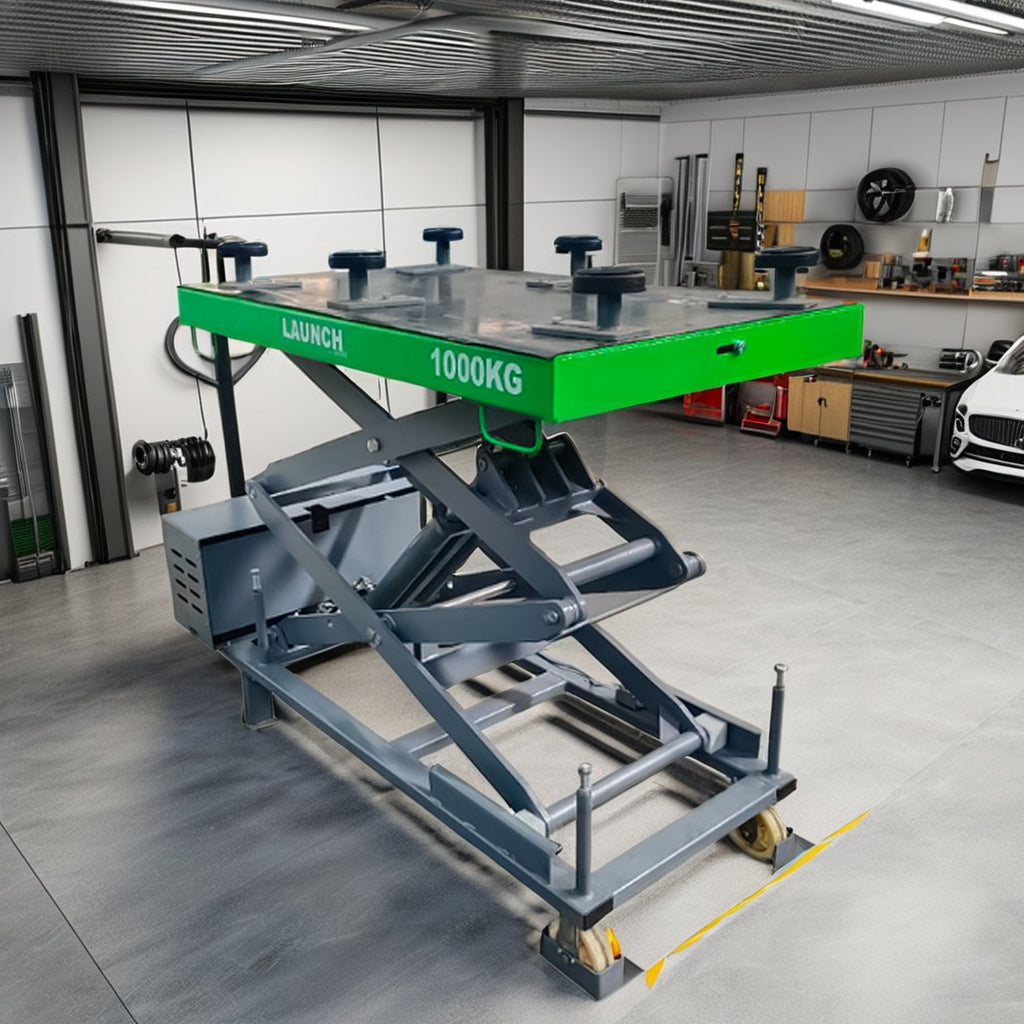

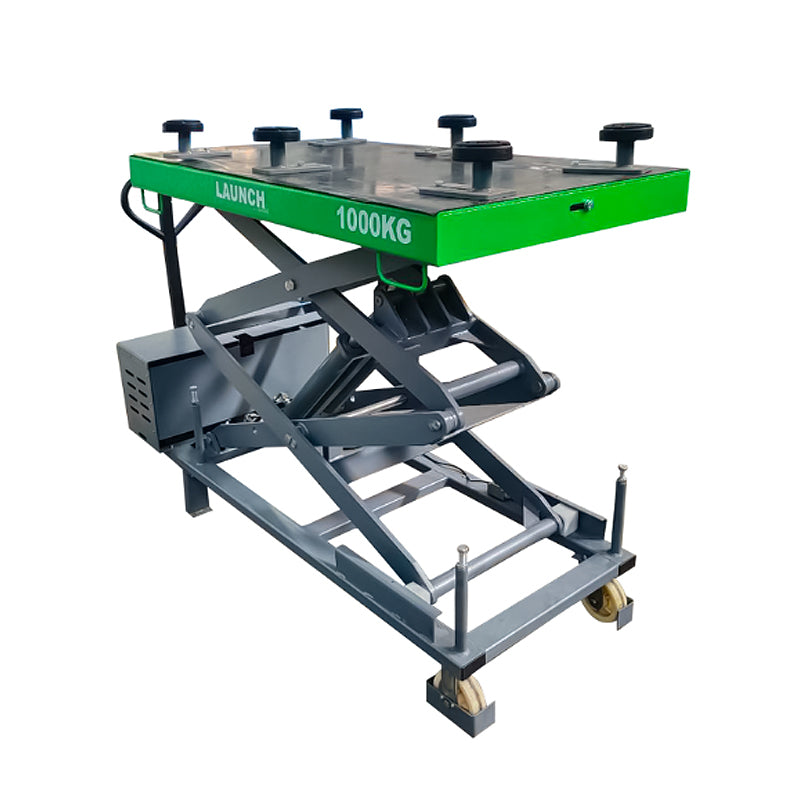

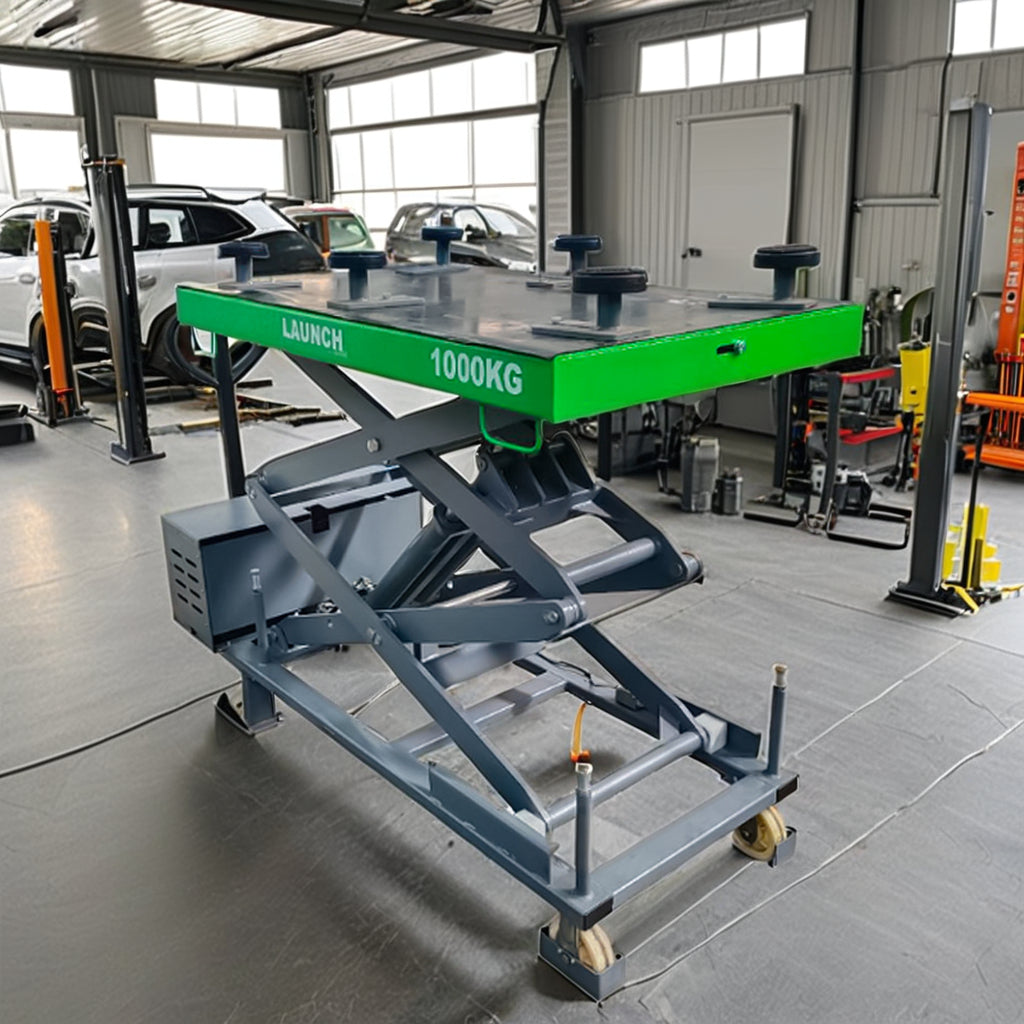

EV Car Lift
Regular price
$3,600.00
Regular price
$4,000.00
Sale
Sale price
$3,600.00
Couldn't load pickup availability
Why Shop With Us?
✓ Authorized Dealers
✓ FREE & FAST Shipping: In Stock and Ready to Ship
✓ No Sales Tax (Exl MO Residents)
✓ Questions? Call Team Member: (620)202-7711
The double cylinder design makes the table more stable, the oil pipe is made of polyurethane material, and the appearance is beautiful and generous; It complies with the automobile lift standard JT155-2004 and BSEN1570-1-2011+A1-2014 EU CE standard.
It uses batteries as the driving power source, no external power cord is required, which reduces safety risks and has a wider range of use. It is powered by a DC motor and drives the oil cylinder with a hydraulic gear pump. It is equipped with a balance support rod and has stable lifting;
The lifting is controlled by a portable button box, and the electromagnet drives the mechanical gear insurance, which is safe and easy to operate;
The platform base is roller-type , using a hand-pulled transporter for easy mobility. The minimum height is 600mm, and the maximum lifting height without a support pad is 1900mm. All active points use automatic lubrication oil-free bearings to ensure long life.
The table spacing can be fine-tuned, accurate and reliable, and can be tilted for easy disassembly. The movable platform surface is detachable for easy transportation and maintenance and replacement.
The table top adopts a movable support pad design, which can be fine-tuned when in contact with the bottom plane of the battery, and is convenient for two forks to enter and use. The surface is shot blasted and high-temperature sprayed to ensure durability.
Product Parameters
|
||||
Supply Voltage
|
AC 220V 50Hz
|
|||
Operating Voltage
|
DC 12V
|
|||
Power
|
2.2kw
|
|||
Rated Lifitng Weight
|
1000kg
|
|||
Lowest Height
|
600mm
|
|||
Highest Height
|
1900mm
|
|||
Platform Width
|
800mm
|
|||
Platform Length
|
2200mm
|
|||
Ascending Tune
|
≤60S
|
|||
Descending Time
|
≤75S
|
