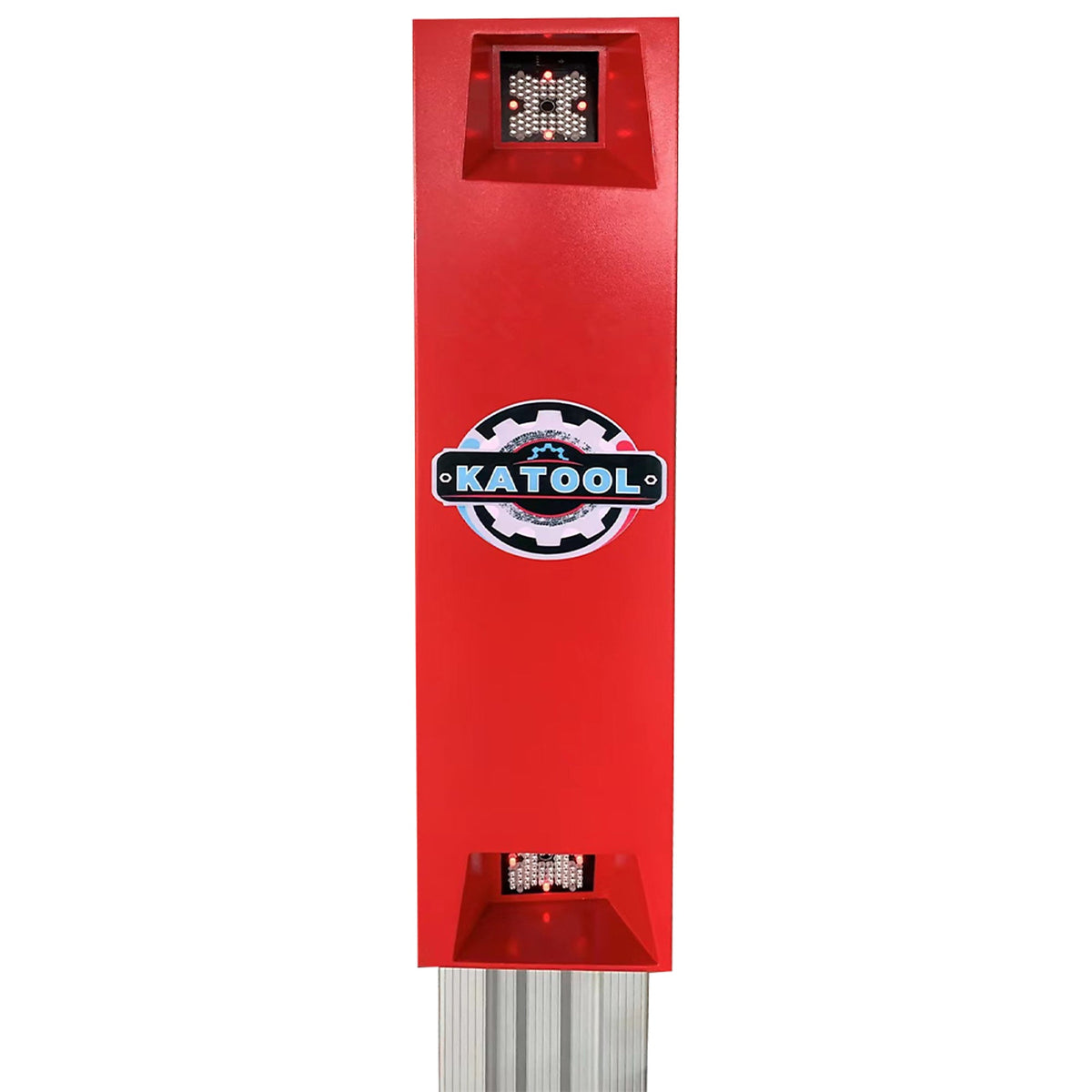

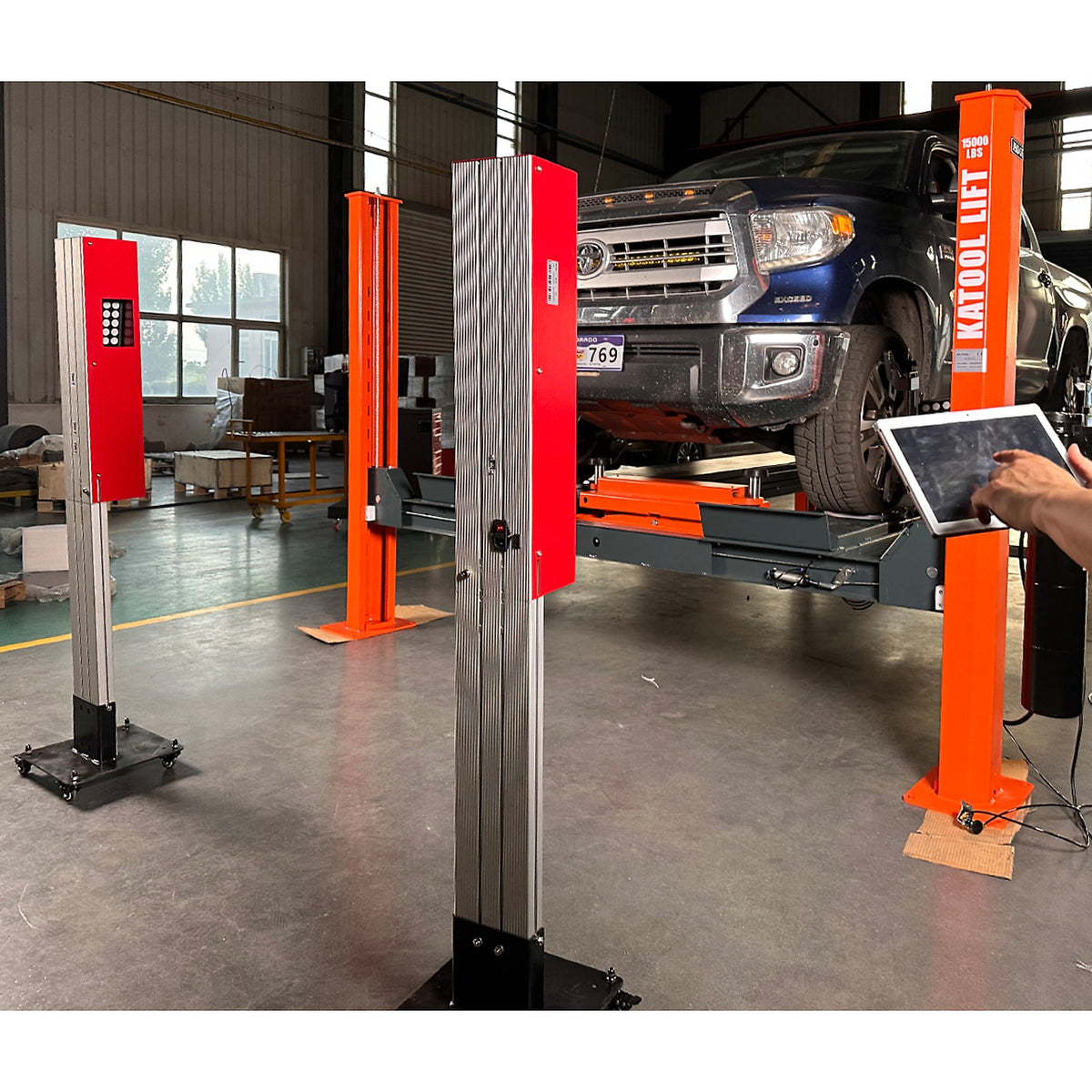

Advanced 5D Alignment System for Precision Automotive Service

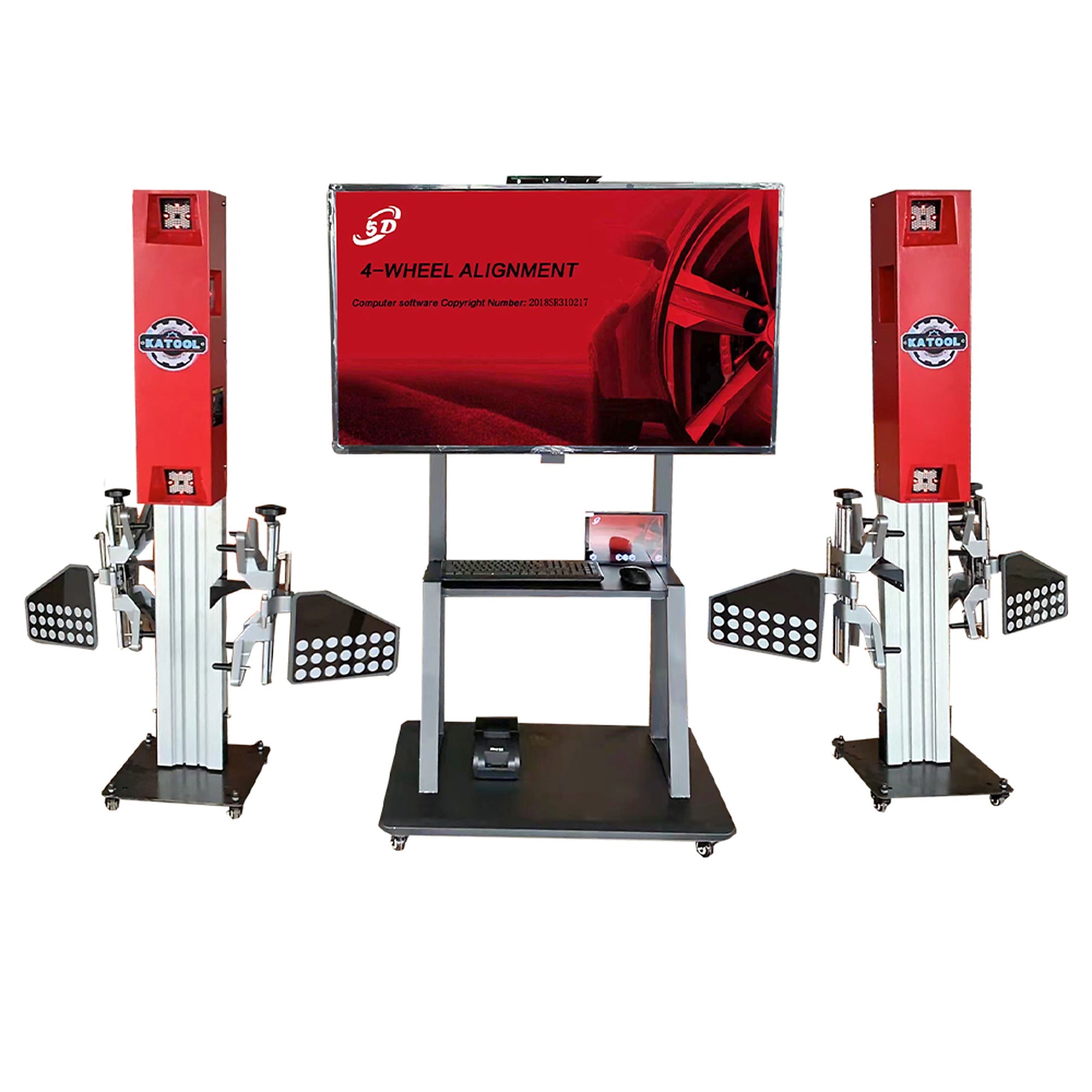

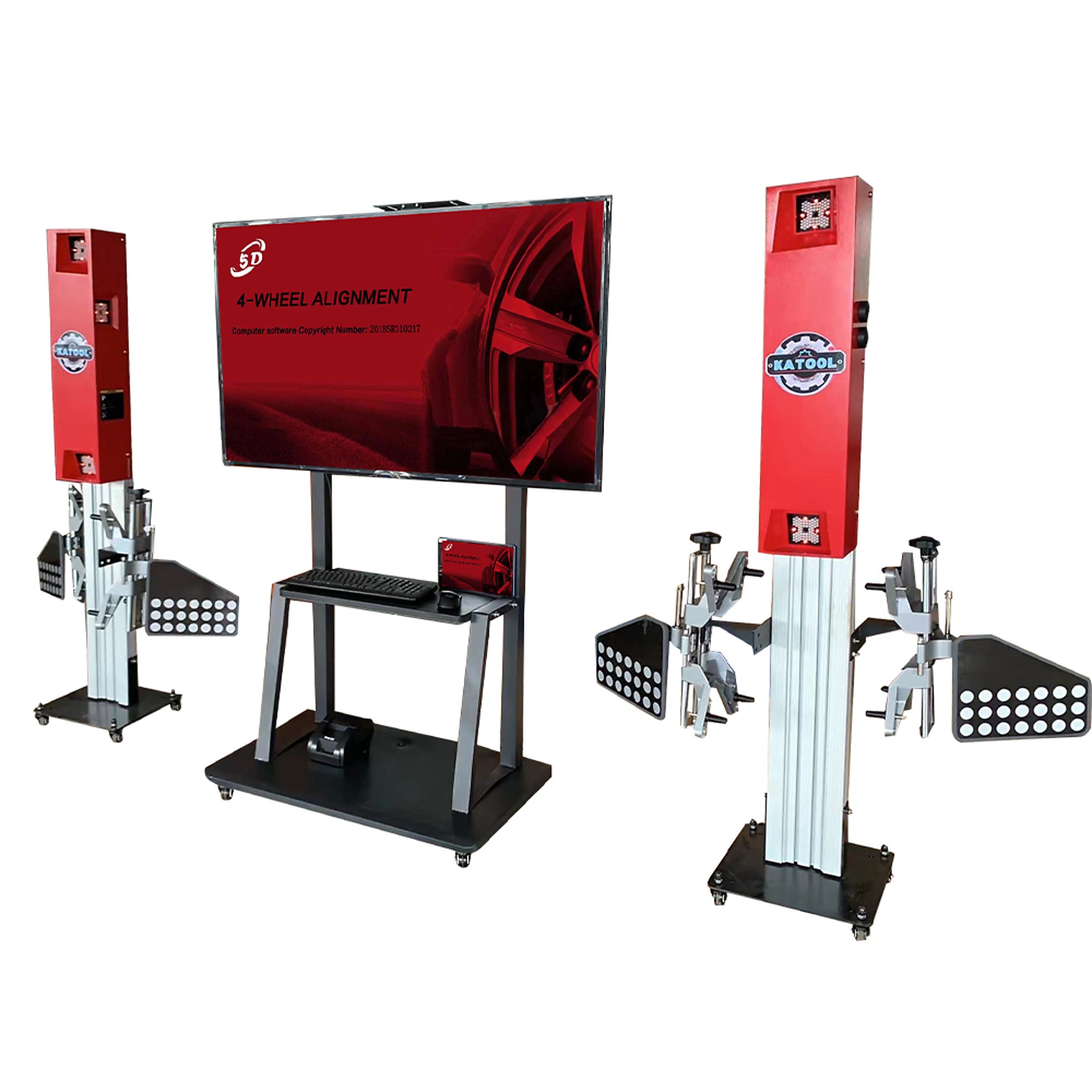

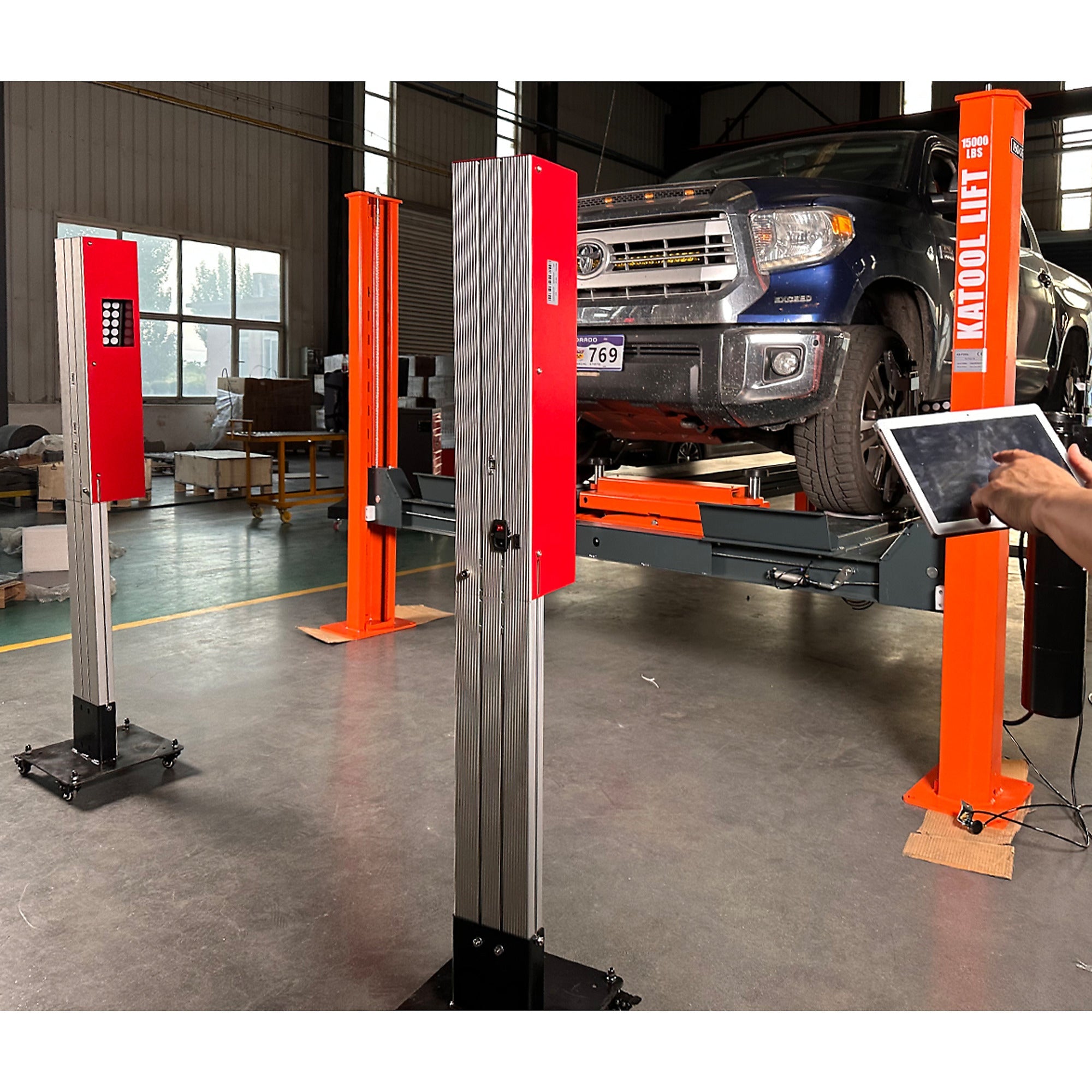

The KATOOL KT-5DA is a premium 3D wheel alignment machine featuring advanced 5D measurement technology for ultra-precise alignment results. Designed for professional shops and performance garages, it delivers real-time imaging, accurate diagnostics, and consistent repeatability across a wide range of vehicles.
Built for high-volume environments, the KT-5DA combines durable construction with intuitive software to streamline alignment workflows and improve service accuracy.
Key Features

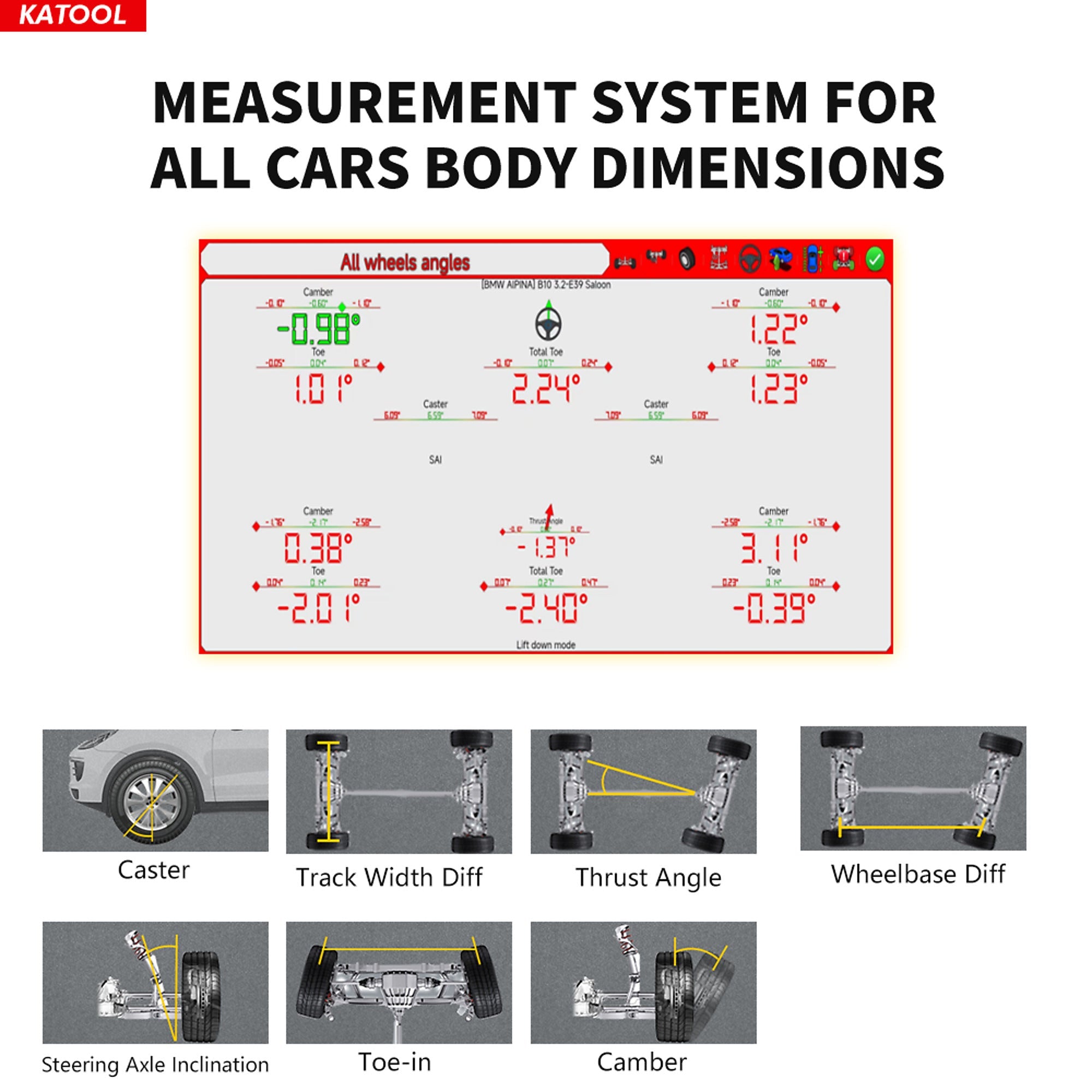

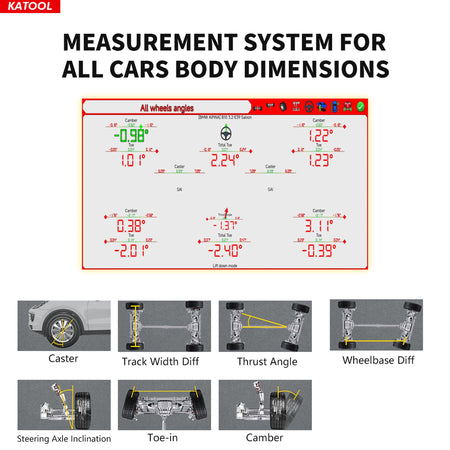

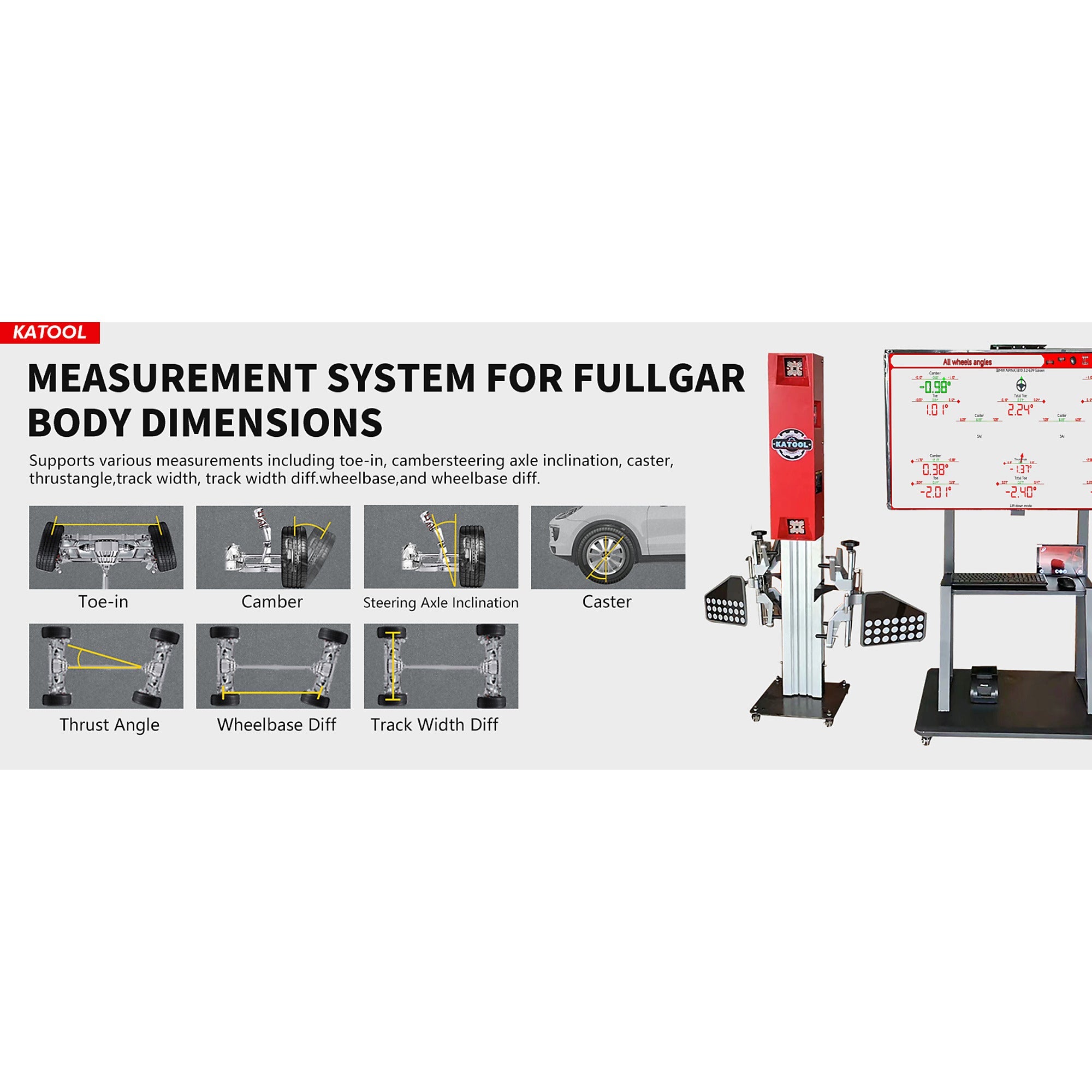

Advanced 5D Alignment Technology — Measures five-axis alignment angles for higher precision compared to standard 3D systems.

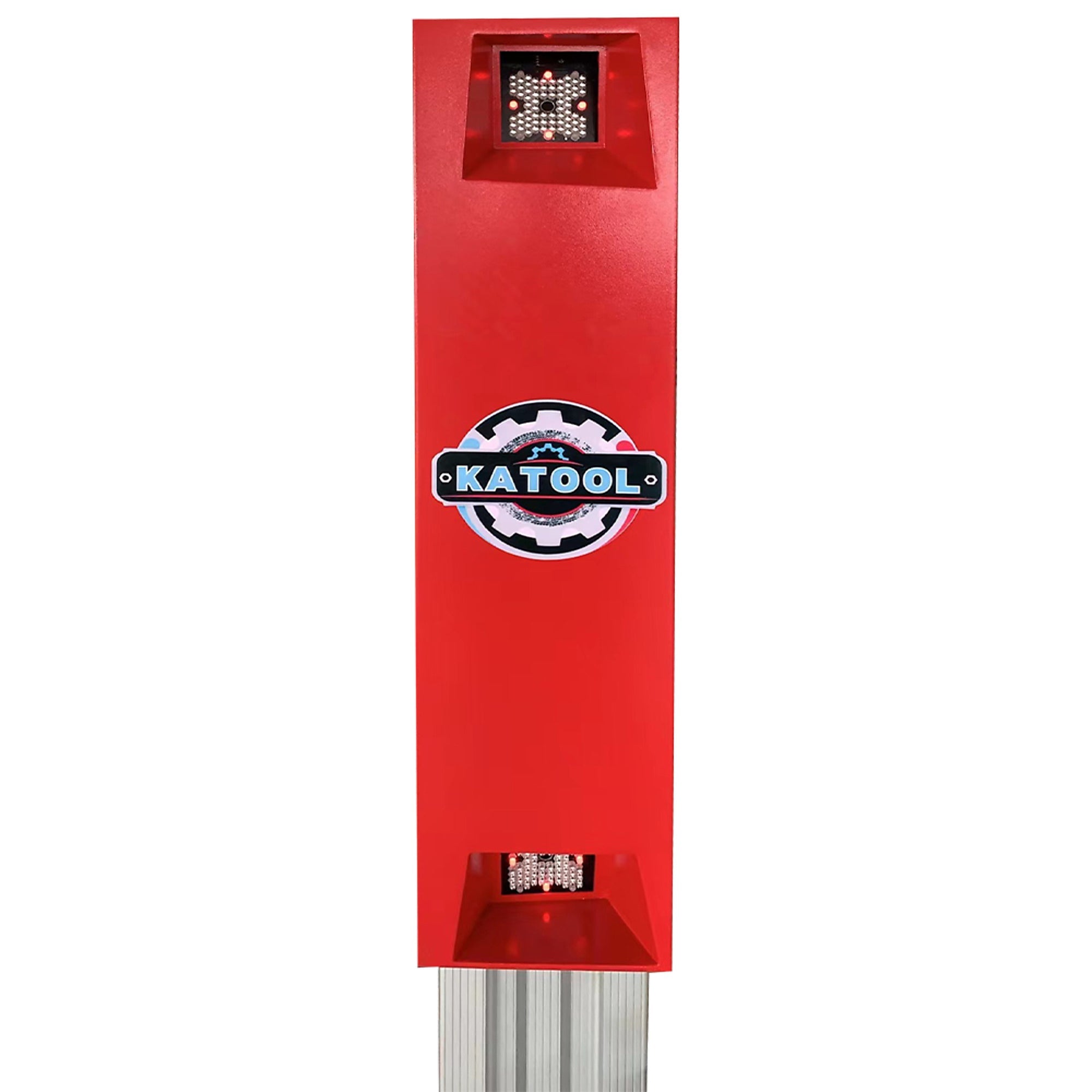

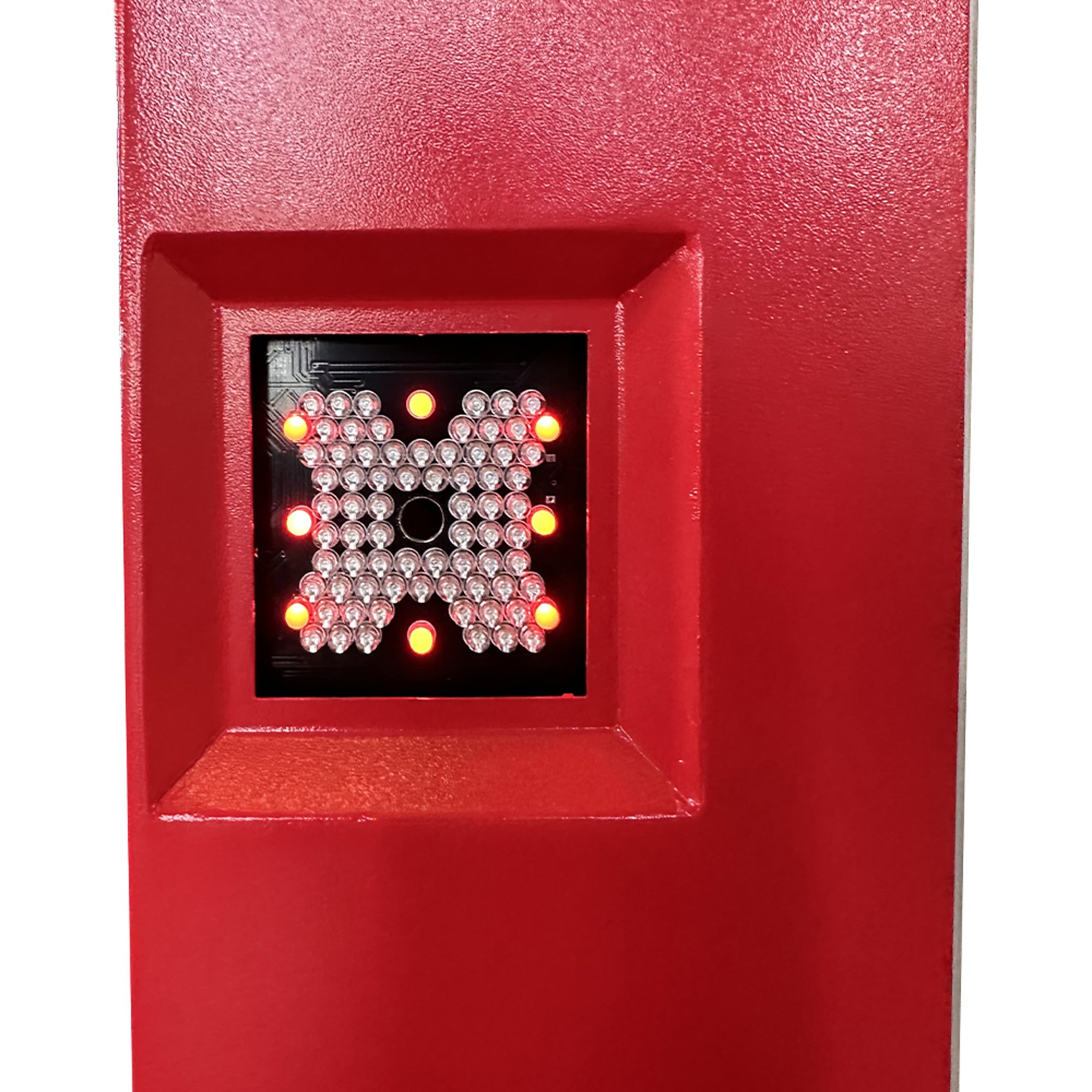

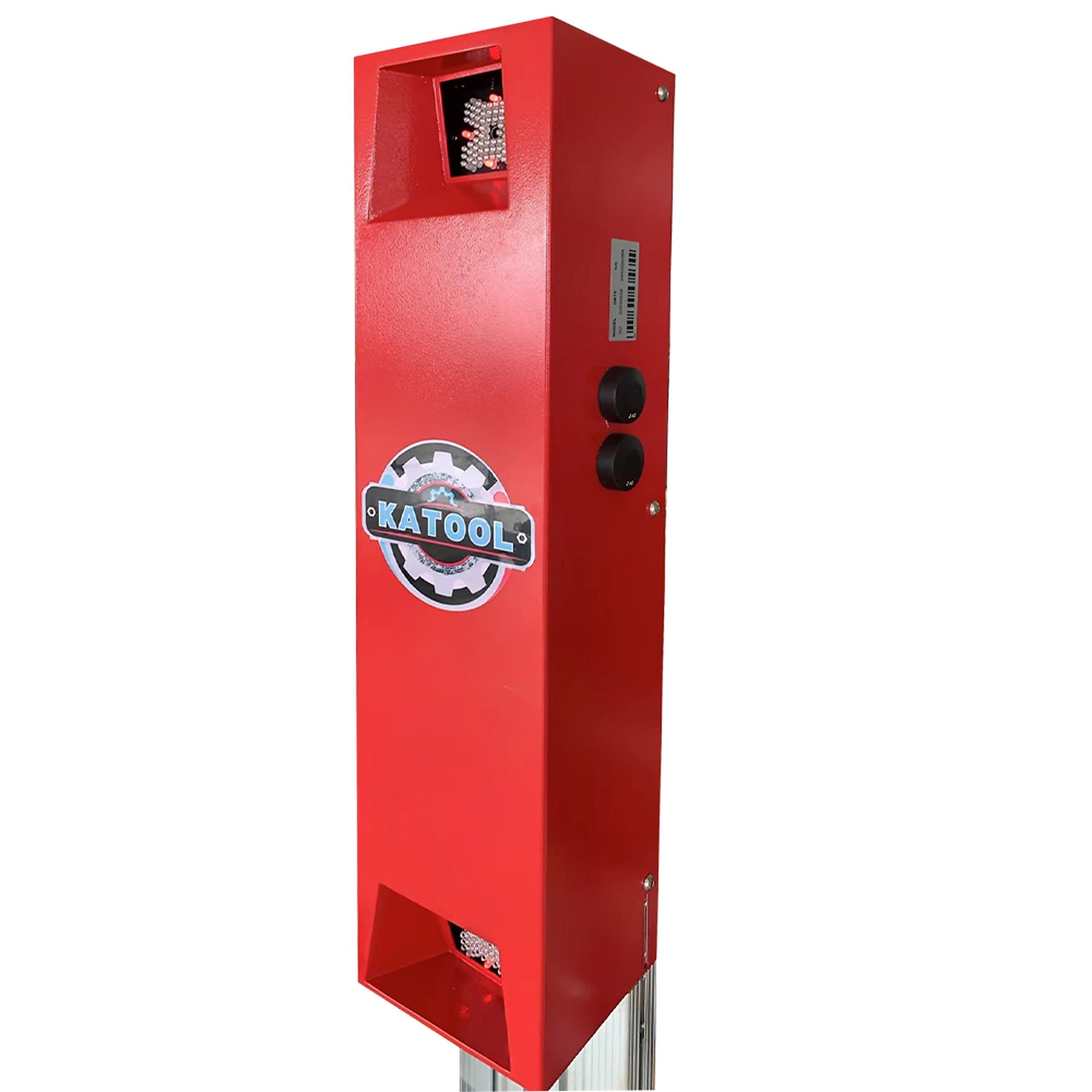

Real-Time Live Imaging — High-resolution cameras track alignment adjustments in real time for faster, more accurate corrections.
Professional Calibration System — Factory-calibrated for consistent, repeatable results across different vehicle types.

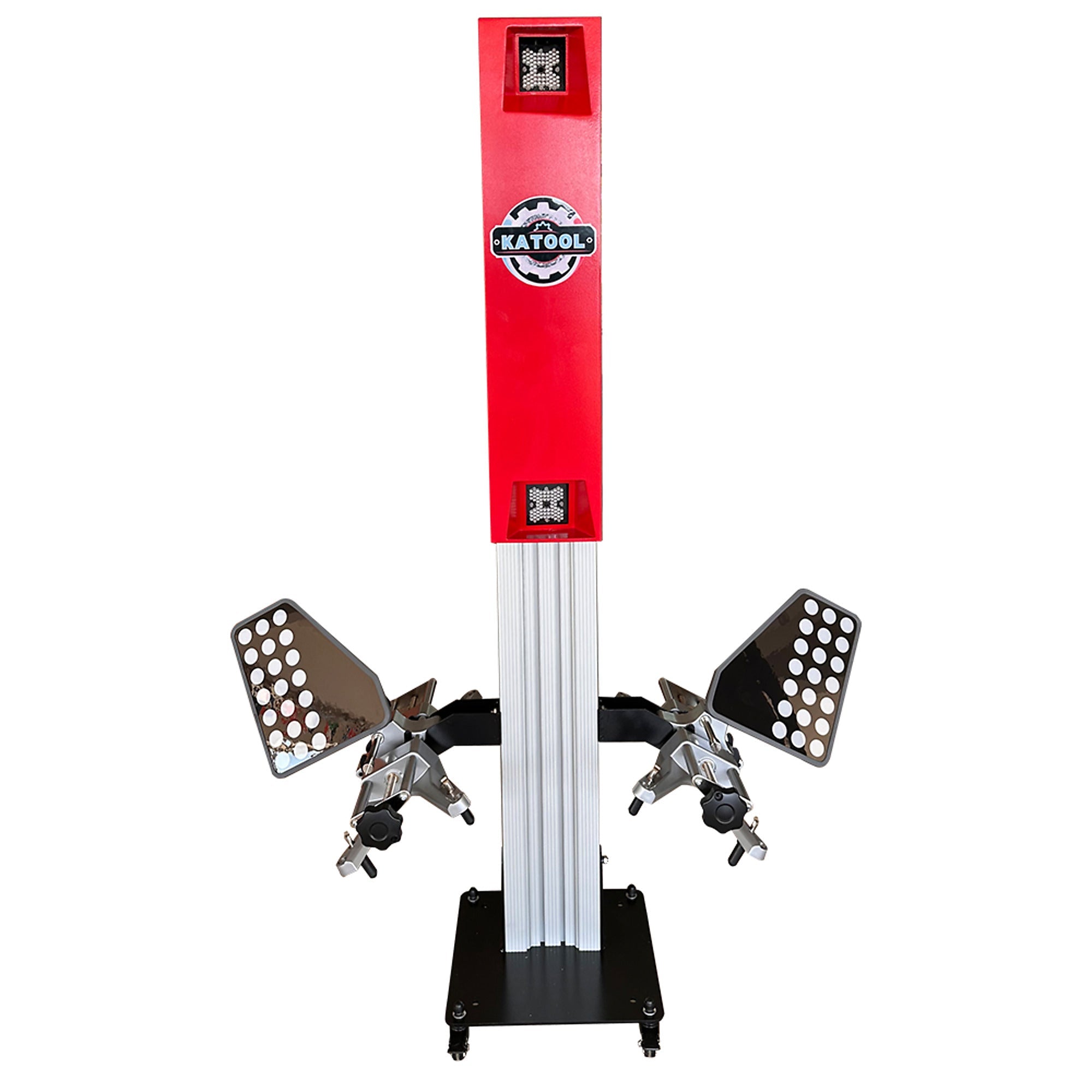

Durable Shop-Ready Construction — Built with reinforced components and high-quality sensors for long-term reliability in busy environments.

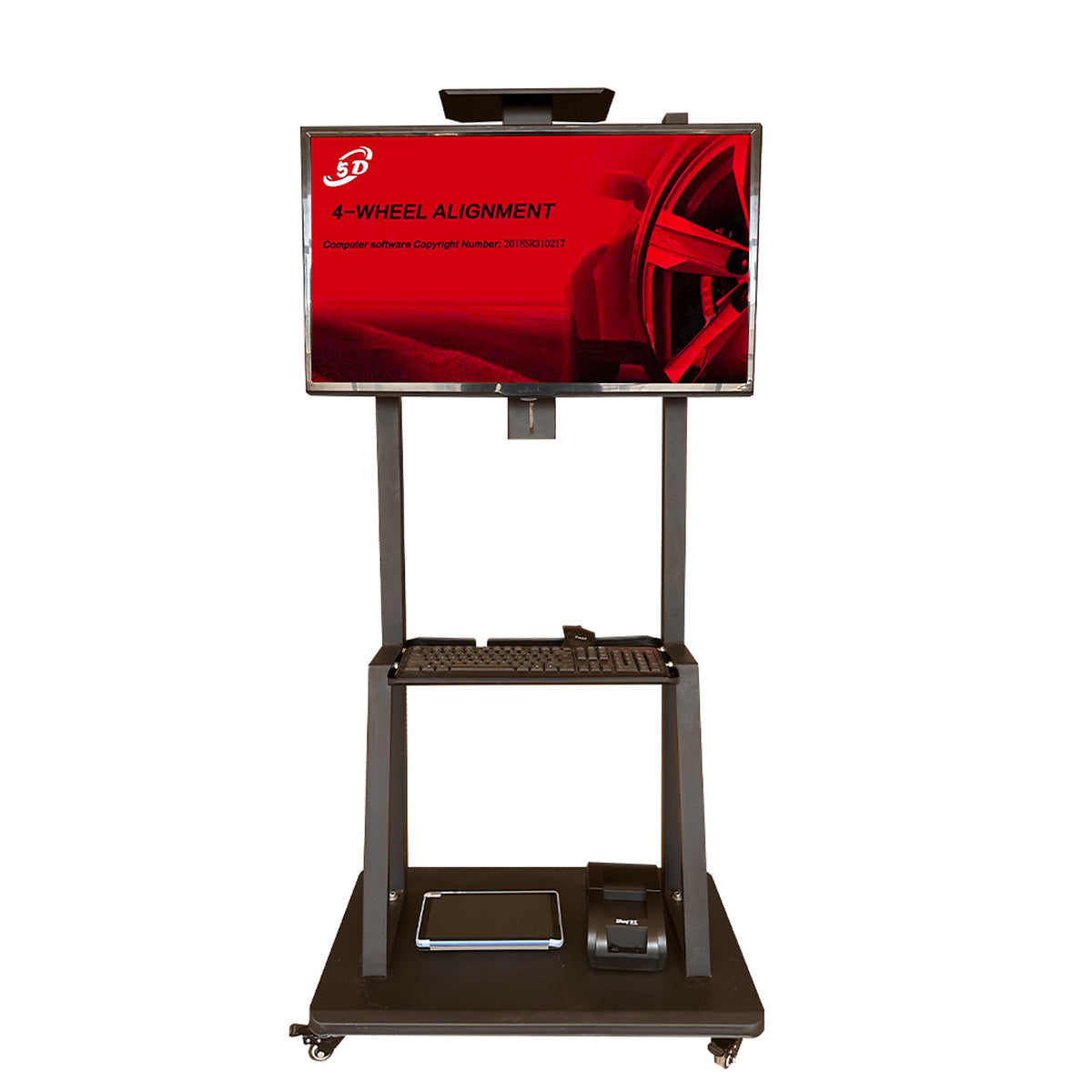

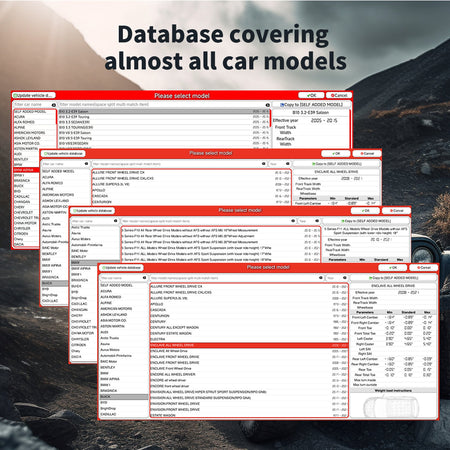

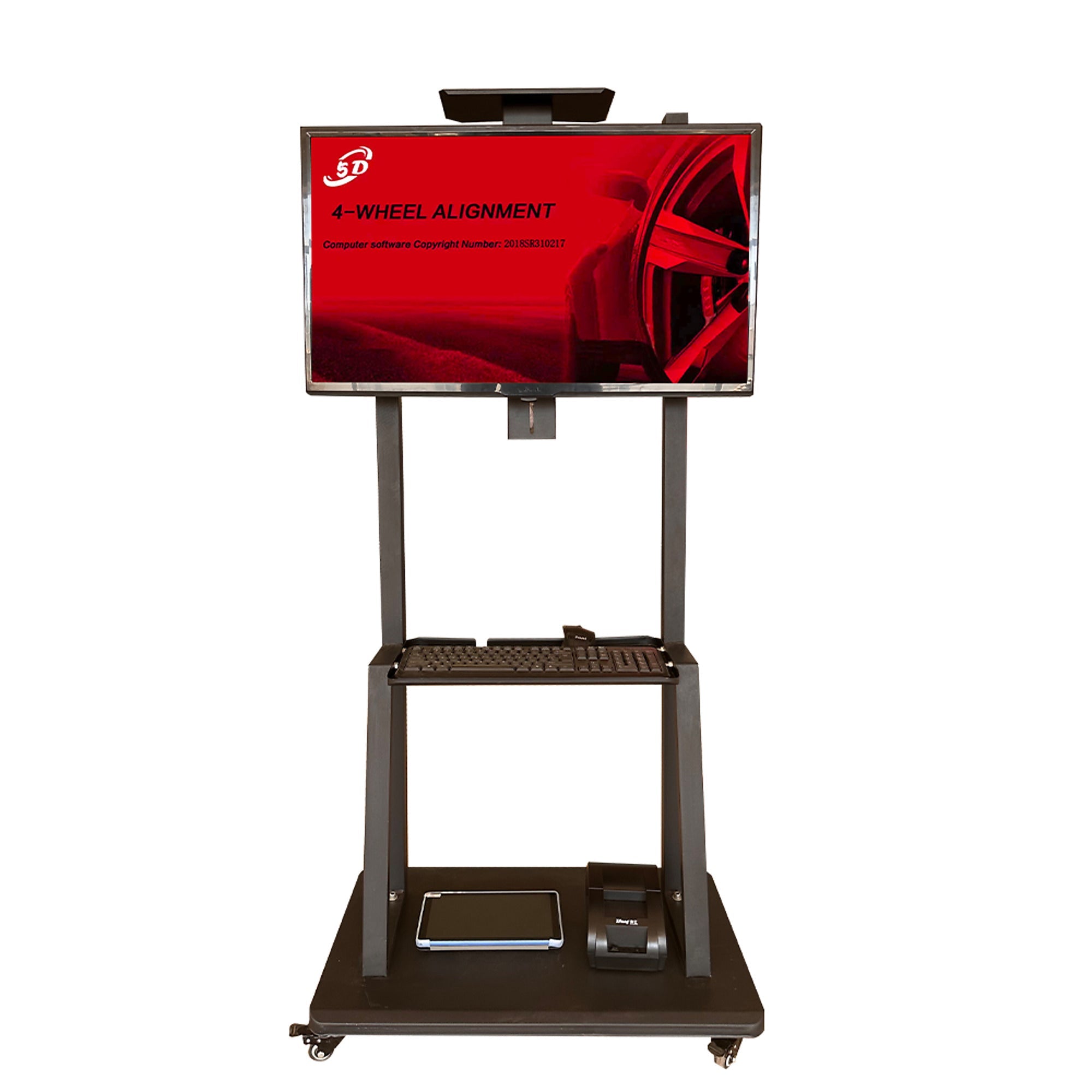

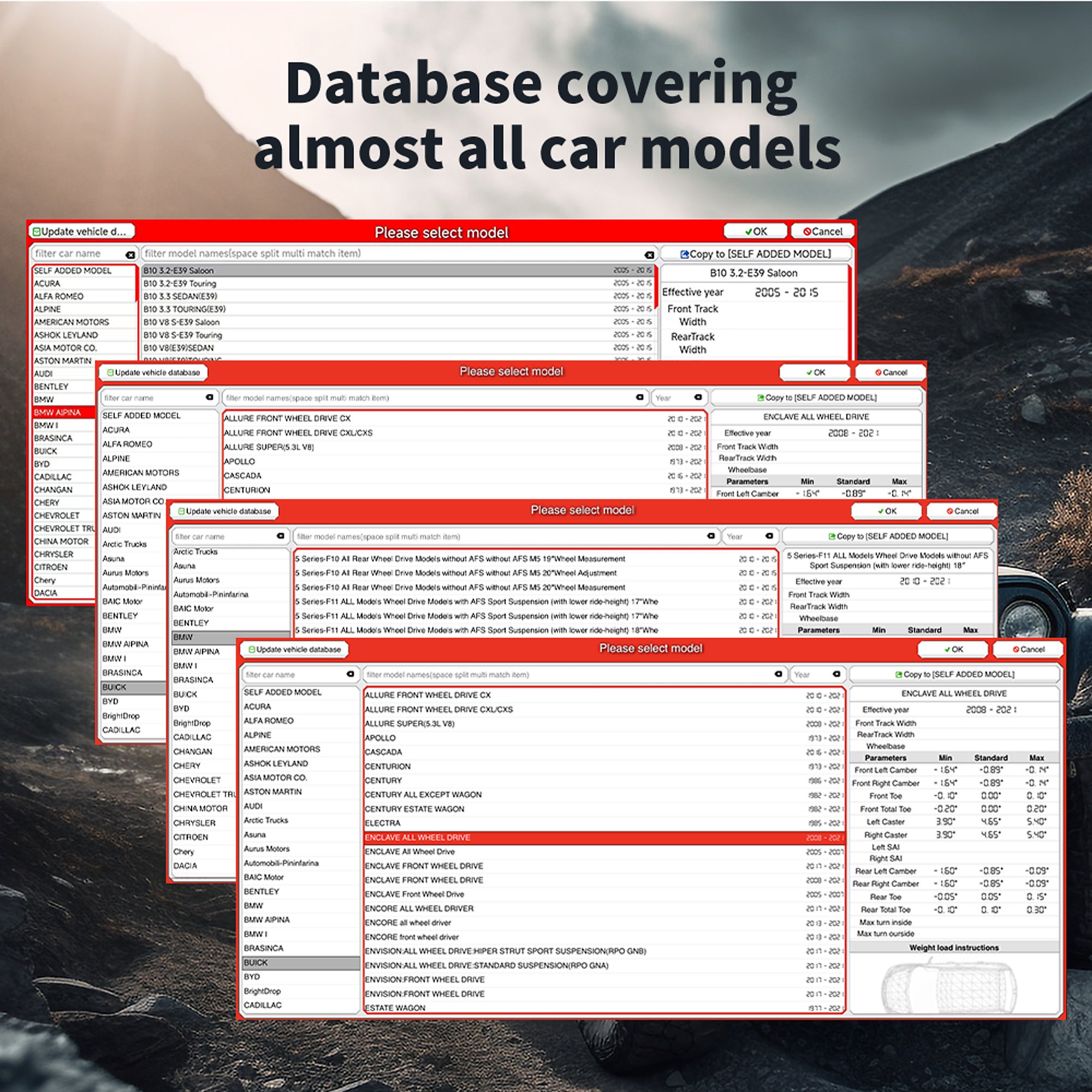

User-Friendly Software Interface — Intuitive controls simplify operation, reduce setup time, and minimize user error.
Built for Professional Use
Ideal for:
- Automotive repair and alignment shops
- Performance and tuning garages
- Tire and suspension specialists
- High-volume service centers
KT-5DA 3D Wheel Alignment Machine Specifications
| Feature |
Specification |
| Model |
KT-5DA |
| Alignment Type |
3D / 5D Measurement System |
| Technology |
Real-Time Camera Imaging |
| Operation |
Computer-Controlled Alignment |
| Material |
Alloy Steel |
| Color |
Red |
| Power Requirement |
Standard Shop Power |
| Product Dimensions |
29″ x 47″ x 48″ |
| Product Weight |
229 lbs |
| Shipping Weight |
441 lbs |
