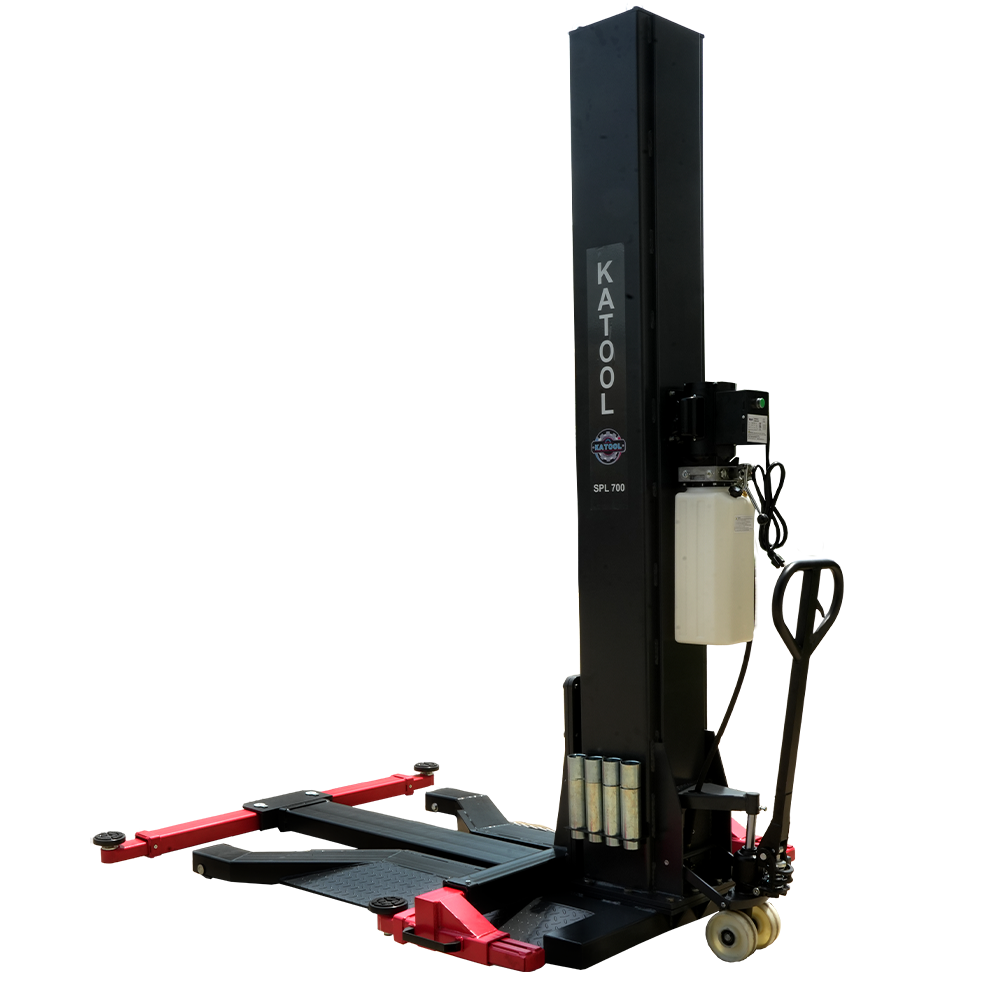

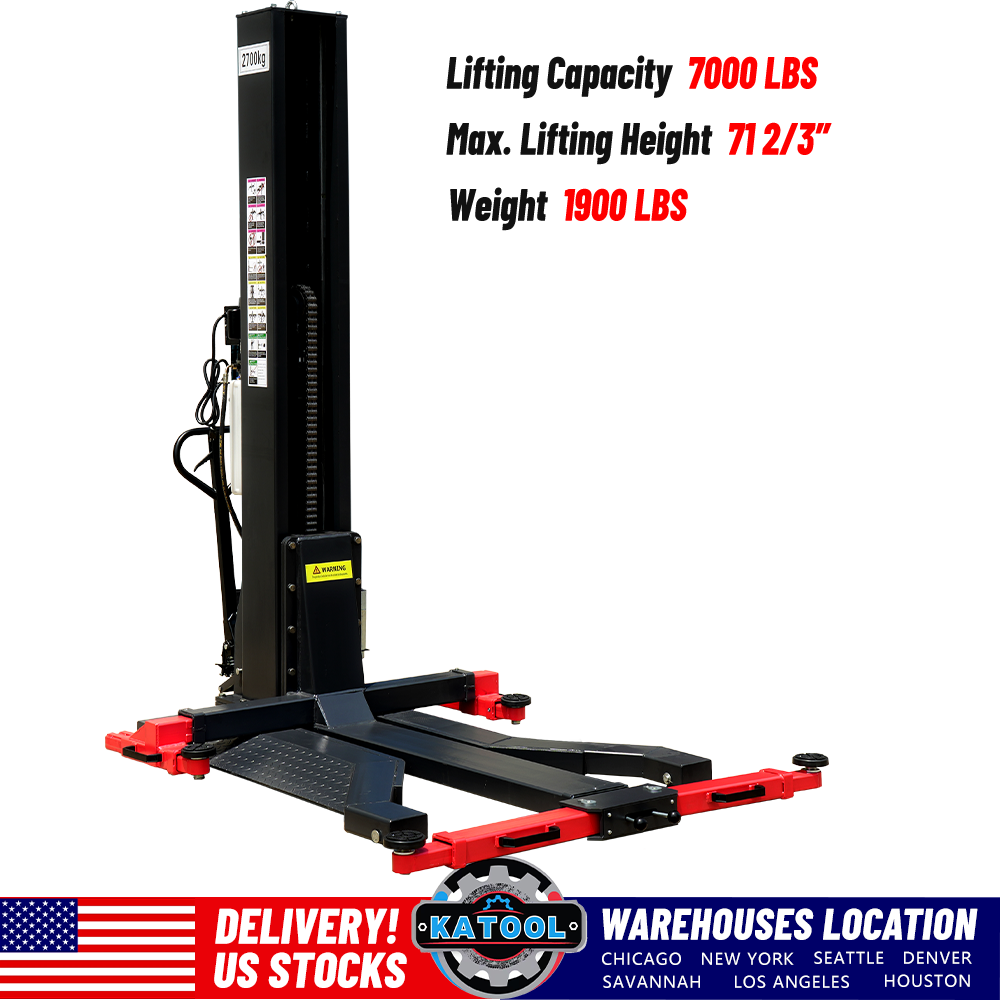

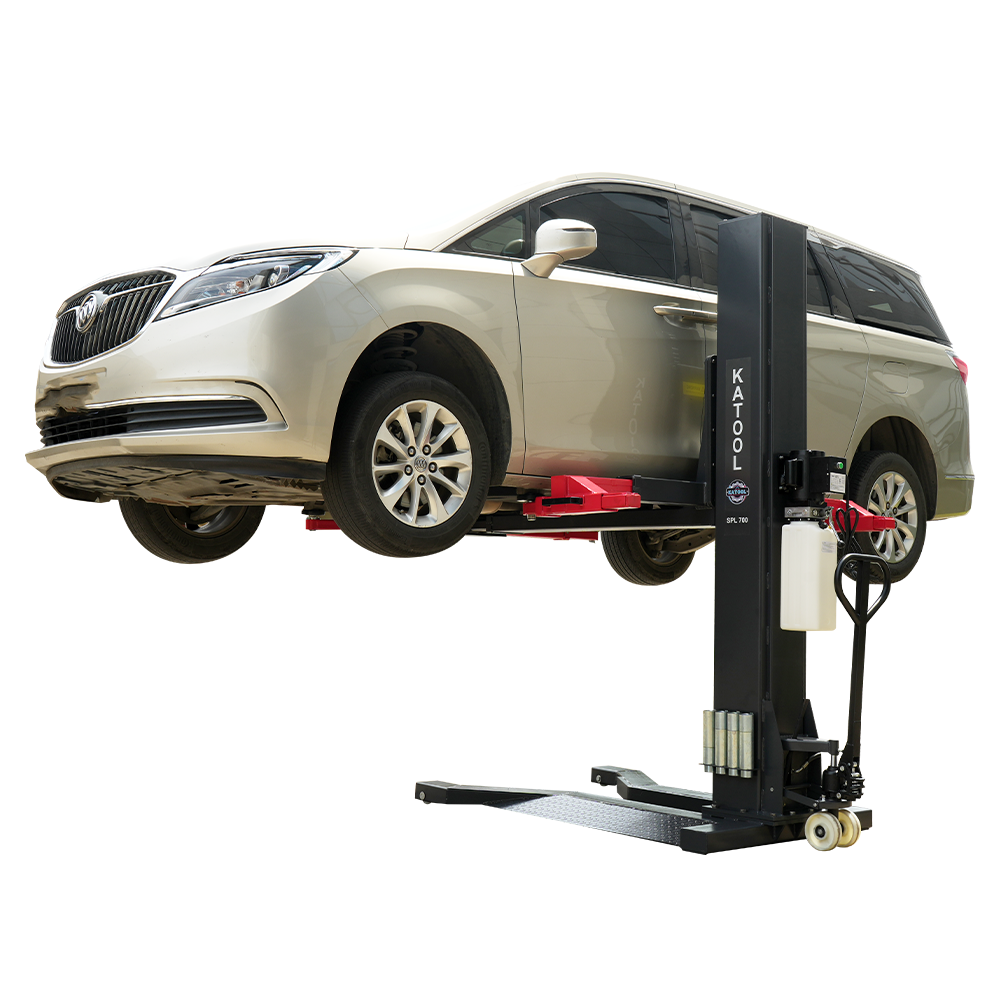

Upgrade your garage or professional shop with the Katool KT-SPL700 Single Post Vehicle Lift, a rugged and portable lifting solution designed for serious performance in tight spaces. Ideal for home garages, specialist workshops, mobile technicians, and service bays, this lift combines a compact footprint with heavy-duty capacity and user-friendly operation.
Built to handle up to 7,000 lbs of vehicle weight with confidence, the KT-SPL700 delivers smooth hydraulic lifting on standard 110V power — no special electrical setup required. Its space-saving single-post design gives you excellent access around the wheels and undercarriage, making tire, brake, suspension, and maintenance jobs easier and safer. Durable steel construction and adjustable lifting pads allow compatibility with a wide range of cars, SUVs, and light trucks.
Whether you’re working on client vehicles or your own ride, the KT-SPL700 offers dependable performance, versatility, and mobility to get the job done right.
Key Features
-

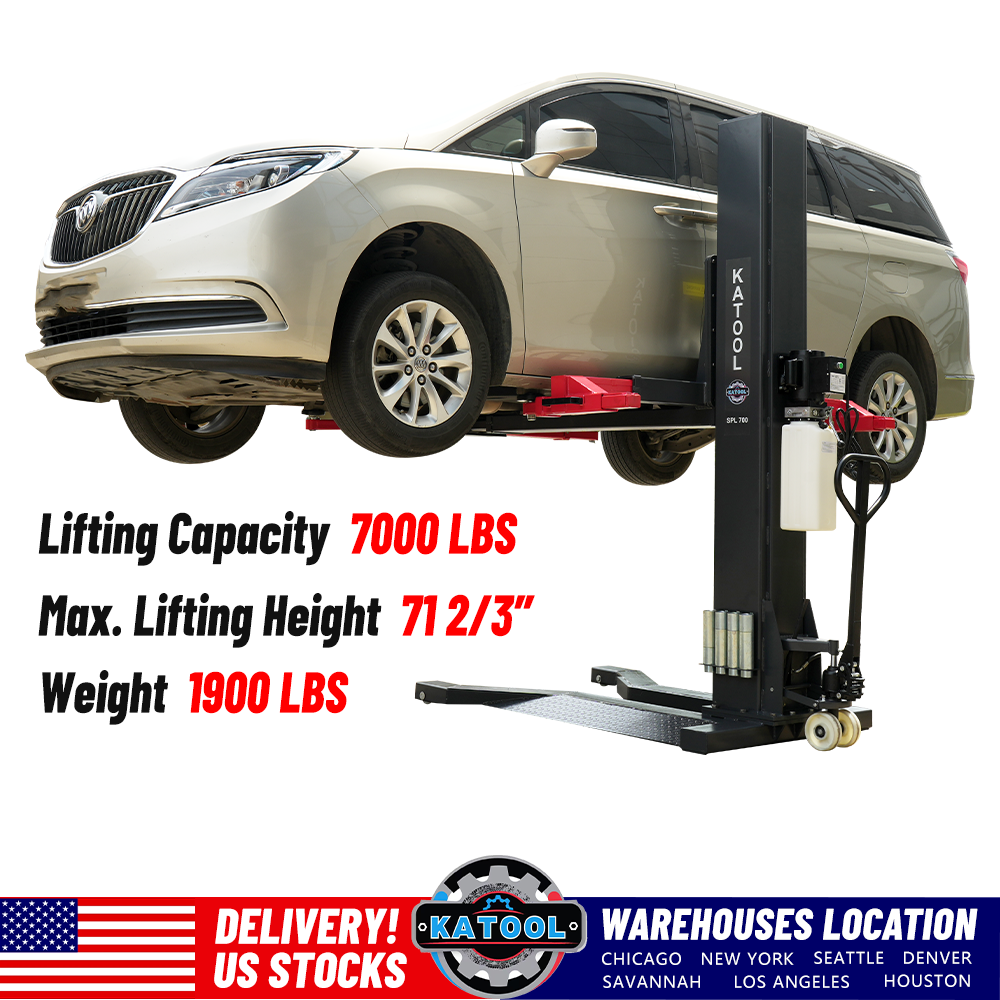

Heavy-Duty 7,000 lb (≈3,175 kg) lifting capacity — supports cars, SUVs, and light trucks.
-
Max lifting height: up to ~72 inches (≈6 ft).
-
Compact footprint design — ideal for shops with limited space.
-
Low-profile drive-on arms for low-clearance vehicles.
-

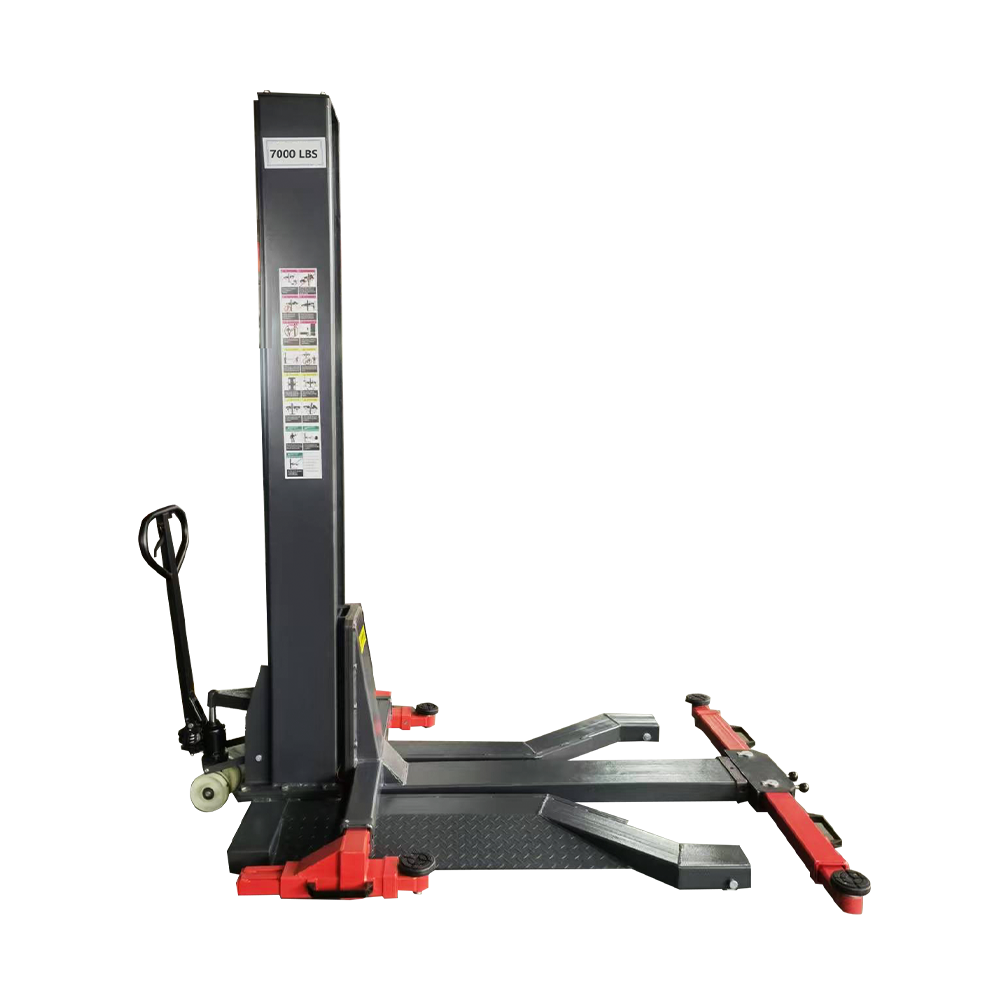

Portable single-post steel construction with caster wheels for easy repositioning.
-
Stable automatic safety lock system ensures secure lifting at every height.
-
Heavy-duty alloy steel build for long-lasting durability.
-

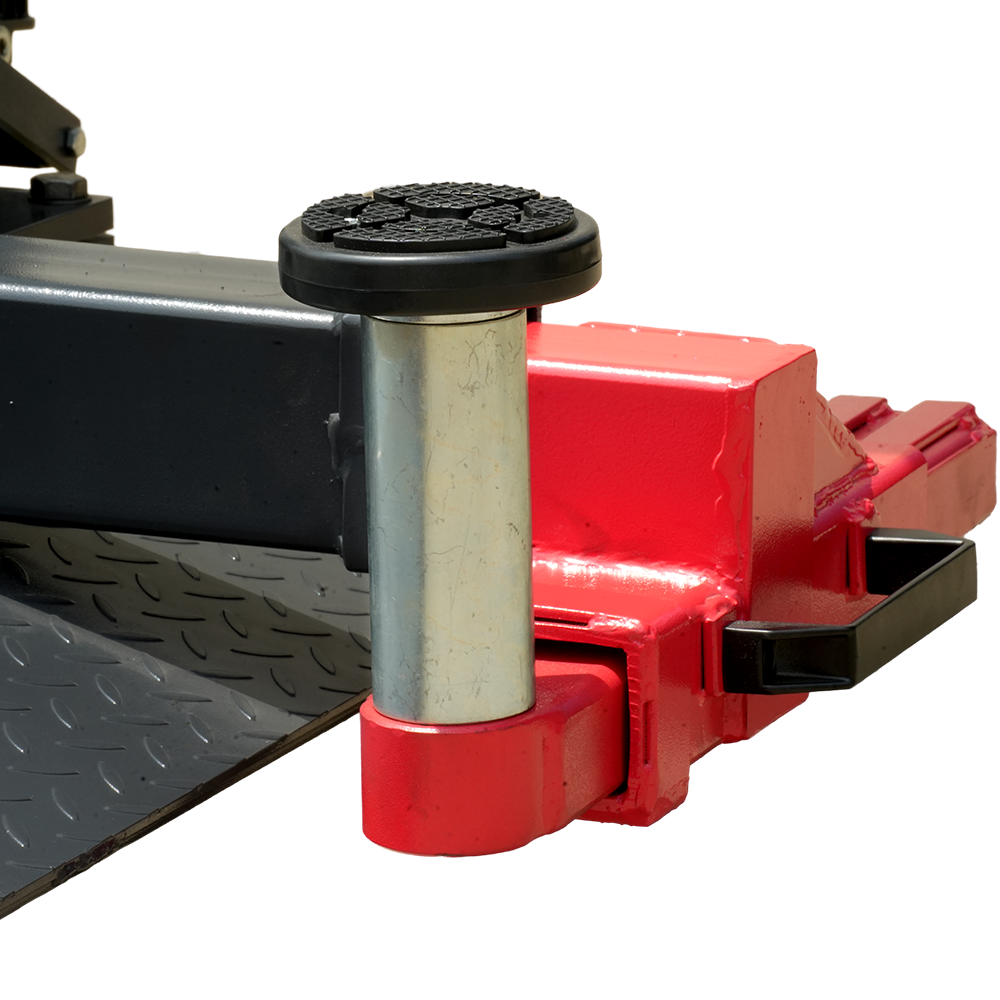

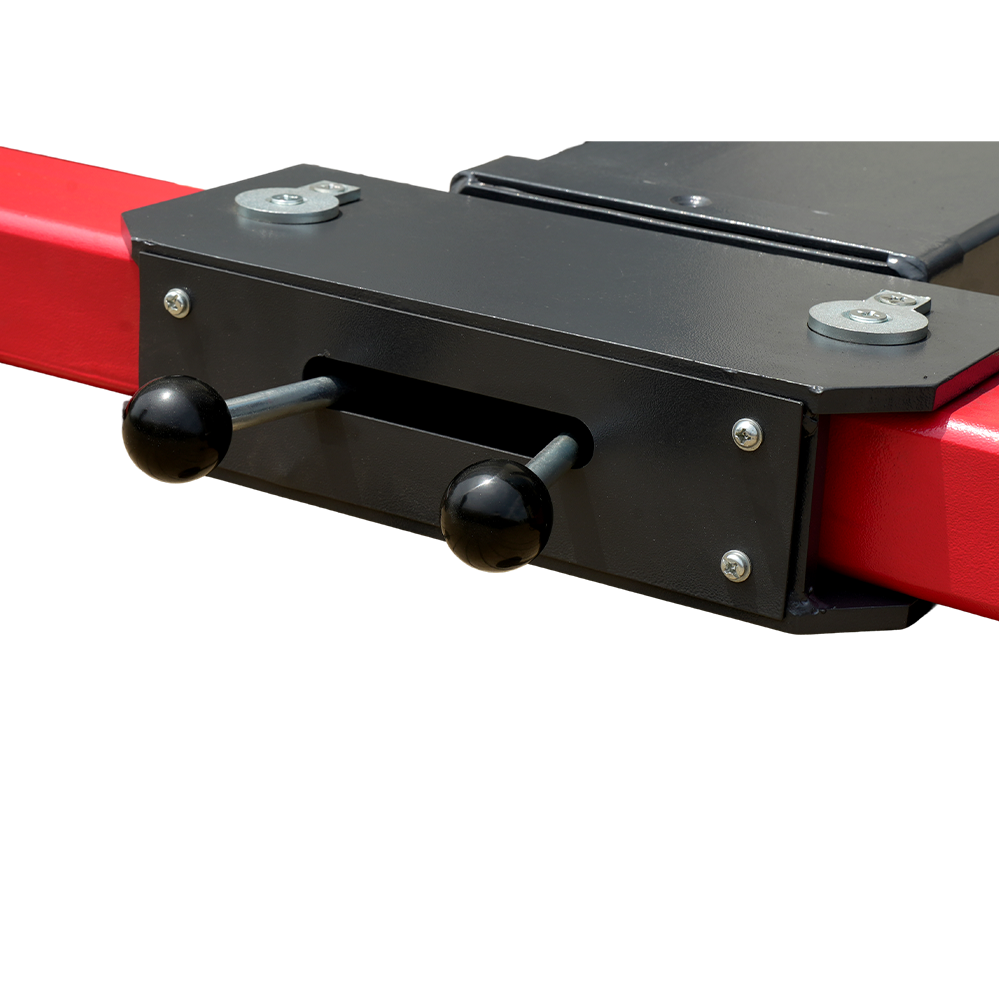

Adjustable lifting pad reach to fit a wide range of vehicle widths.
-
110 V single-phase motor (typically ~3 HP) — compatible with standard garage power.
-
Simple hydraulic operation for smooth lifting cycles.
-
Requires a forklift or similar equipment for initial offloading.

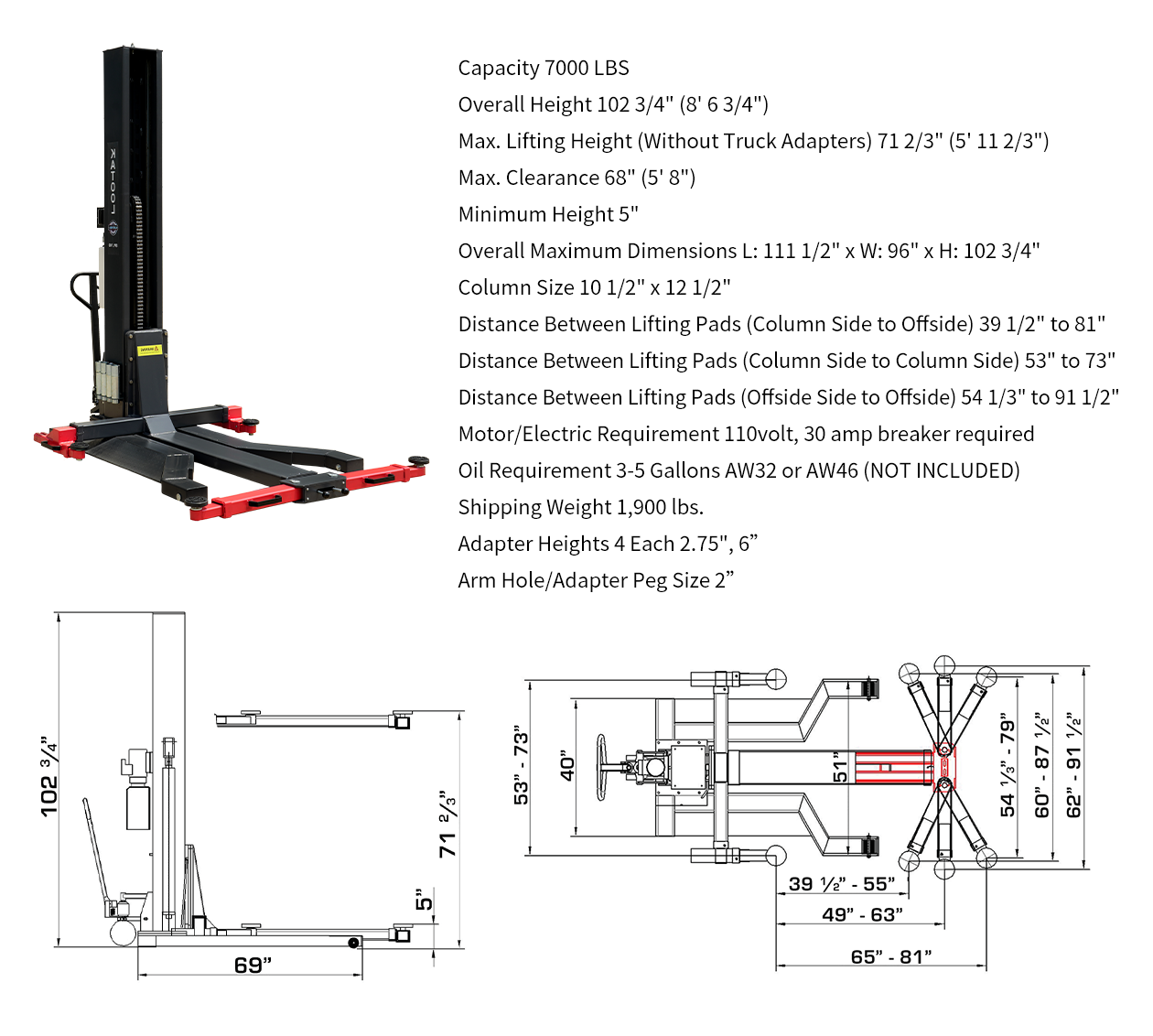

| Specification |
Details |
| Lifting Capacity |
7,000 lbs (3,175 kg) |
|

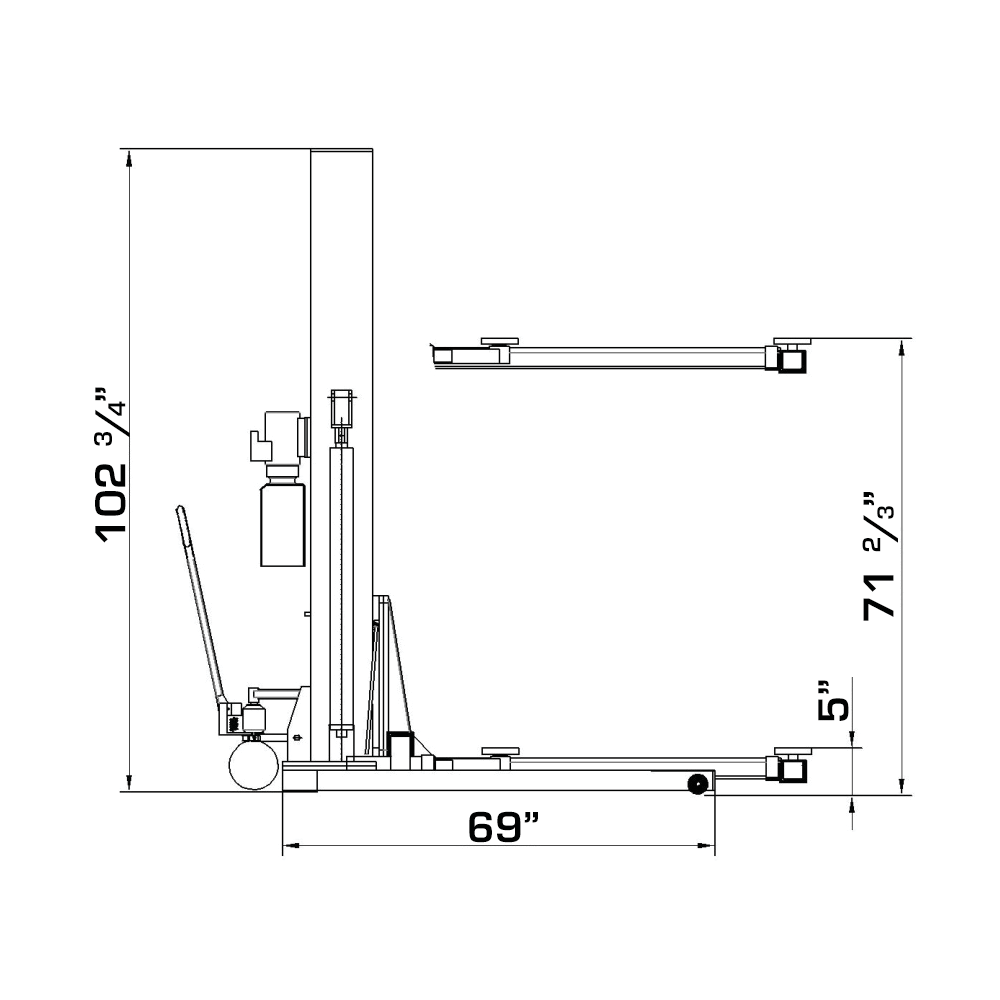

Max Lifting Height (No Adapters) |
71 2/3″ (5′ 11 ⅔″) |
| Max Clearance Height |
68″ (5′ 8″) |
| Minimum Pad Height |
5″ |

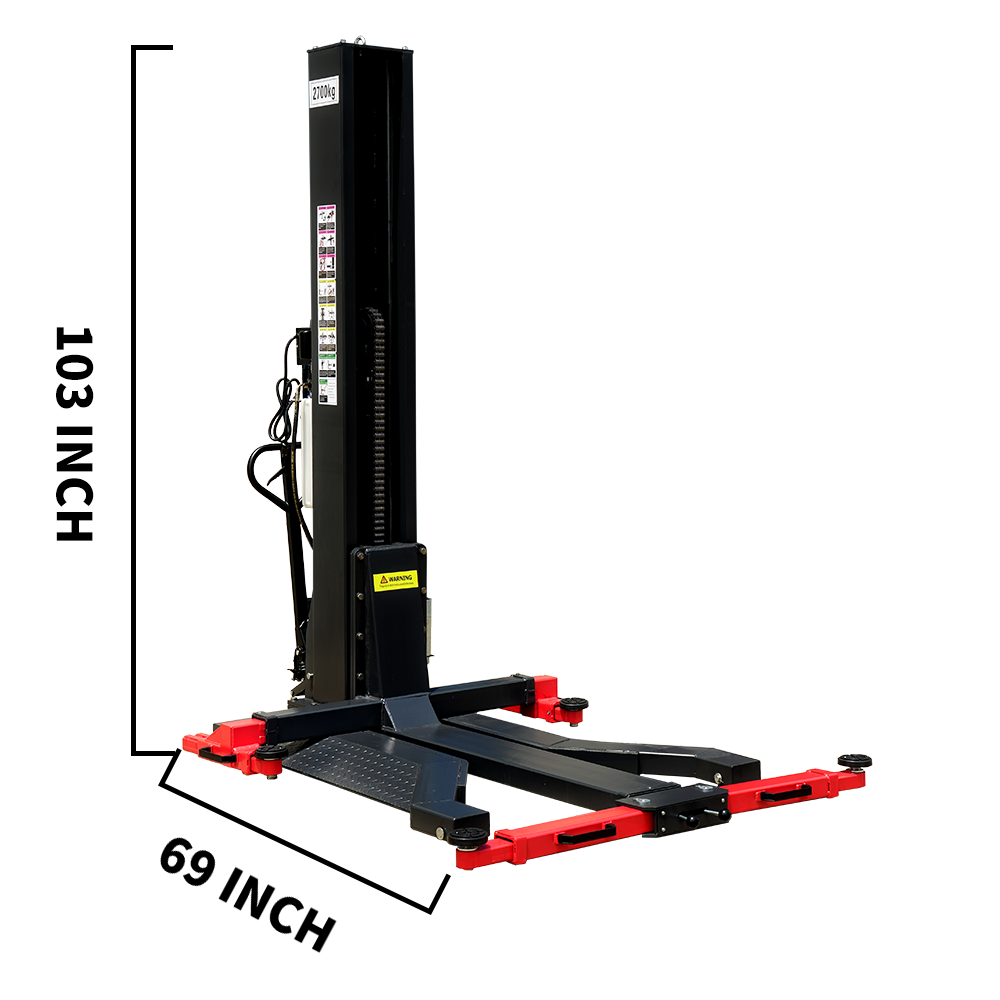

| Overall Height |
102 3/4″ (8′ 6 ¾″) |
| Overall Dimensions (L×W×H) |
111 1/2″ × 96″ × 102 3/4″ |
| Column Size |
10 1/2″ × 12 1/2″ |

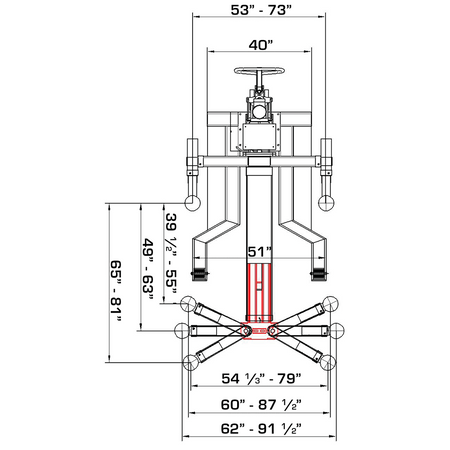

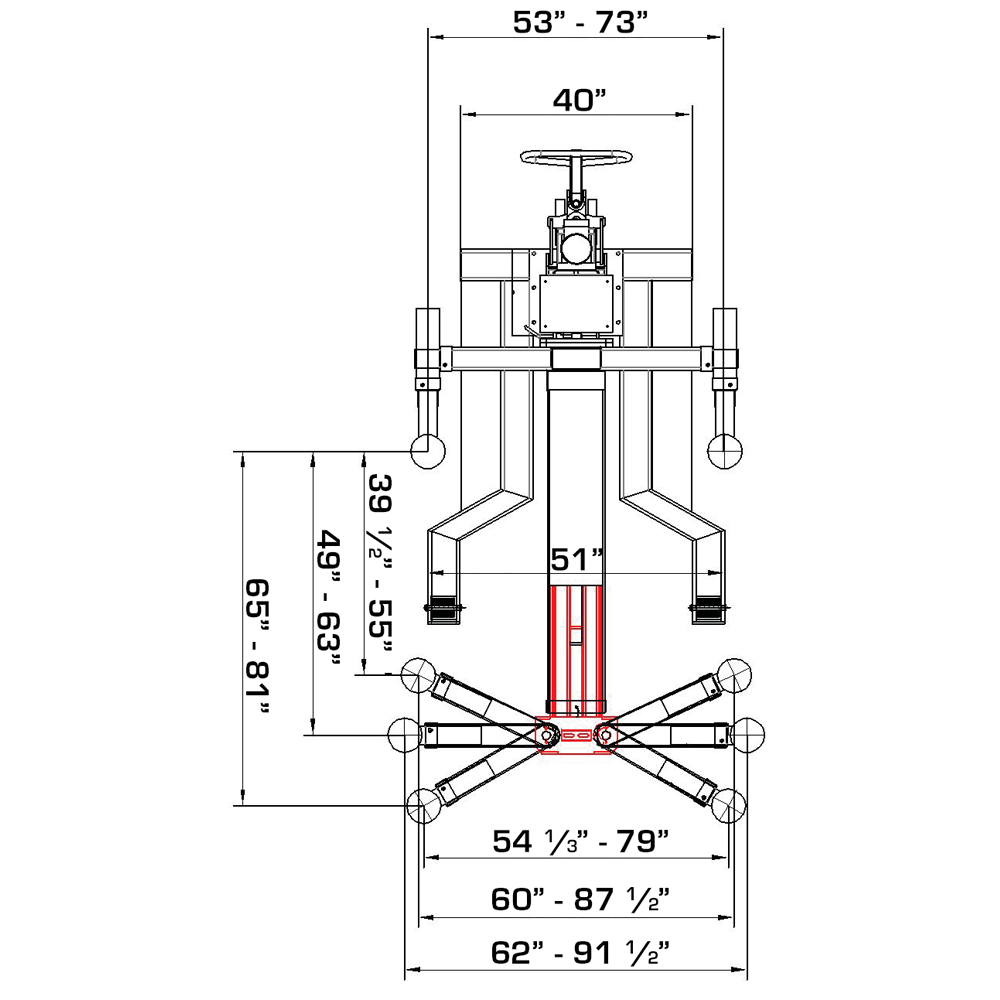

| Pad Distance (Column-Offside) |
39 1/2″ – 81″ |
| Pad Distance (Column-Column) |
53″ – 73″ |
| Pad Distance (Offside-Offside) |
54 1/3″ – 91 1/2″ |
| Motor/Electrical Requirement |
110 V, 30 A breaker |
| Hydraulic Fluid Requirement |
3 – 5 gal AW32 or AW46 (not included) |
| Shipping Weight |
~1,900 lbs |

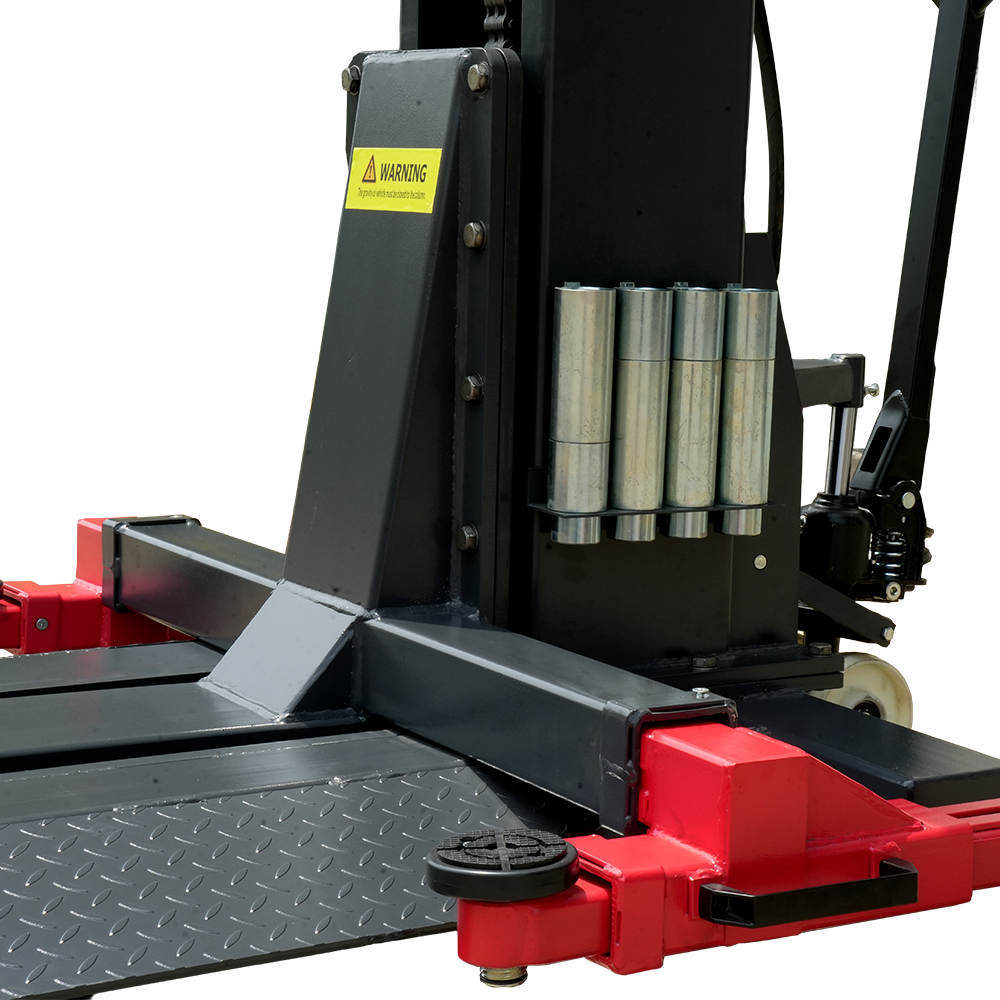

| Adapter Heights Included |
(4) 2.75″ & (4) 6″ |
| Adapter Peg Size |
2″ |
| Power Type |
110 V hydraulic operation |
