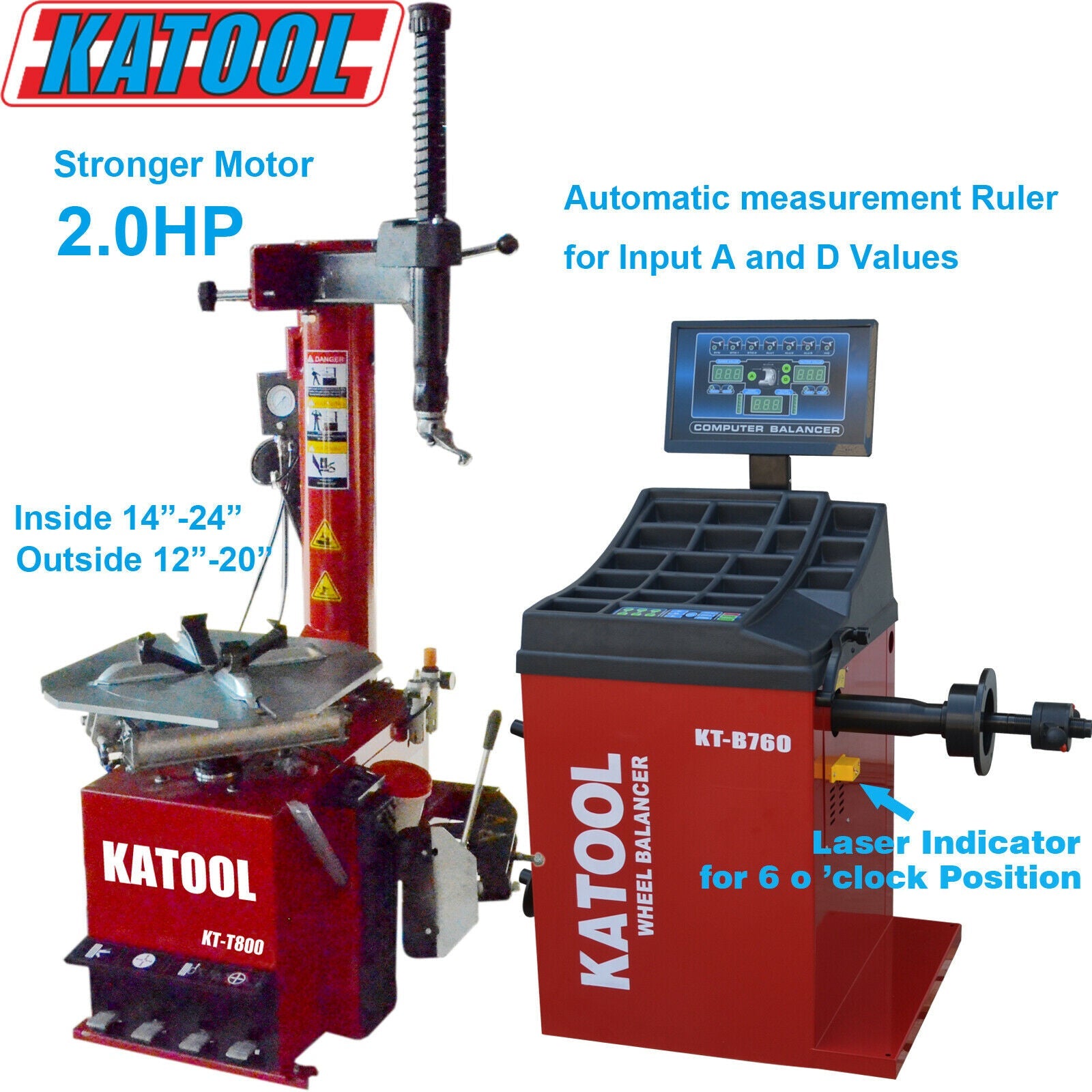

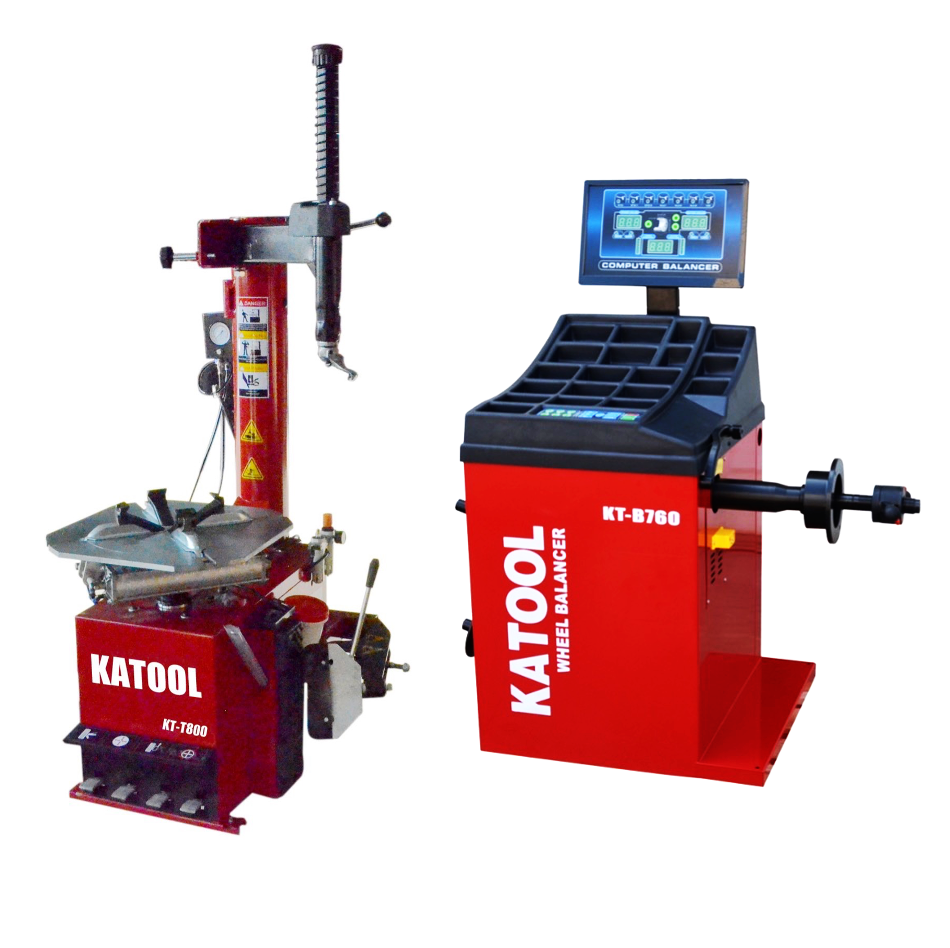

Katool Tire Changer KT‑T800 & Wheel Balancer KT‑B760 Combo
Professional Tire Changing & Balancing in One Complete Package
Get pro-grade tire service performance right in your shop or garage with the Katool KT-T800 + KT-B760 Combo — a robust, easy-to-use tire changer paired with a precision wheel balancer designed to handle a wide range of automotive wheels. Whether you’re servicing daily drivers, SUVs, or light trucks, this combo delivers reliable power, durability, and accuracy for tire mounting and balance jobs.
Product Overview
The KT-T800 tire changer and KT-B760 wheel balancer work together to provide a full tire service solution — from dismounting and mounting tires to precisely balancing wheels for smooth, vibration-free driving. Built with heavy-duty materials and thoughtful features, this combo is ideal for automotive shops, fleet maintenance, and advanced home garages.
Key Features

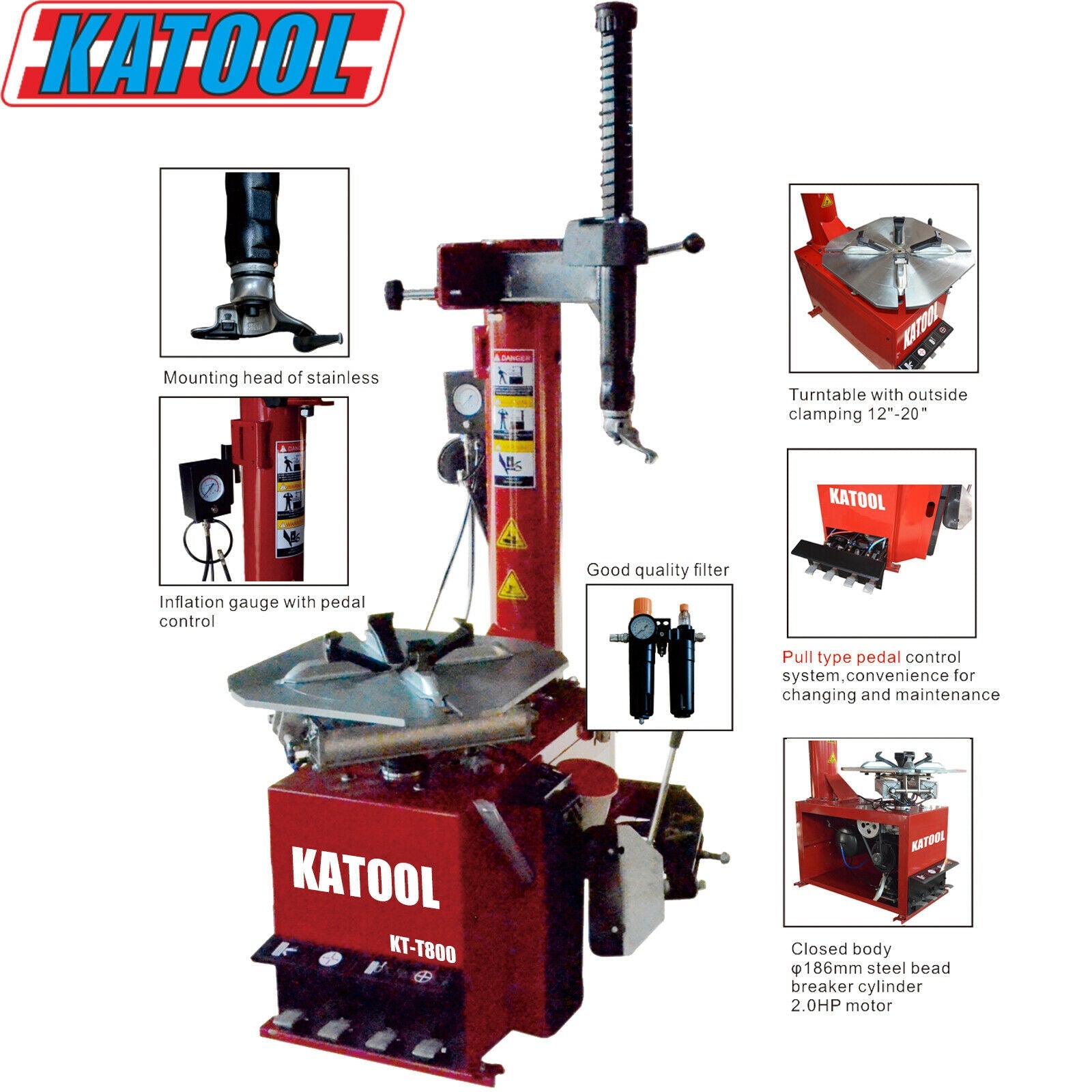

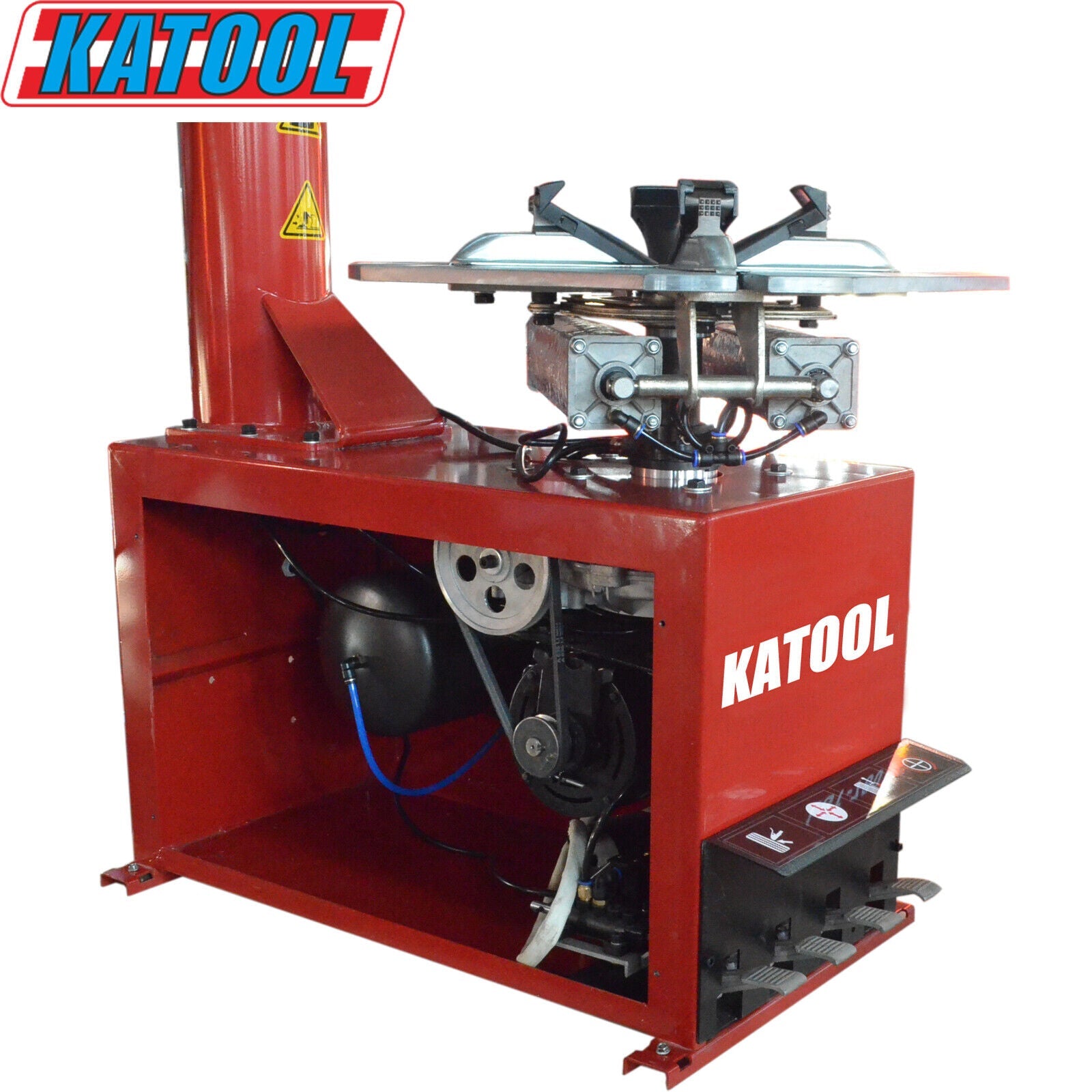

Powerful & Rugged Tire Changer (KT-T800)
-
2.0 HP motor with copper winding: strong performance and improved heat dissipation for longer life.
-
Alloy steel jaws with carburized treatment enhance grip strength and resistance.
-

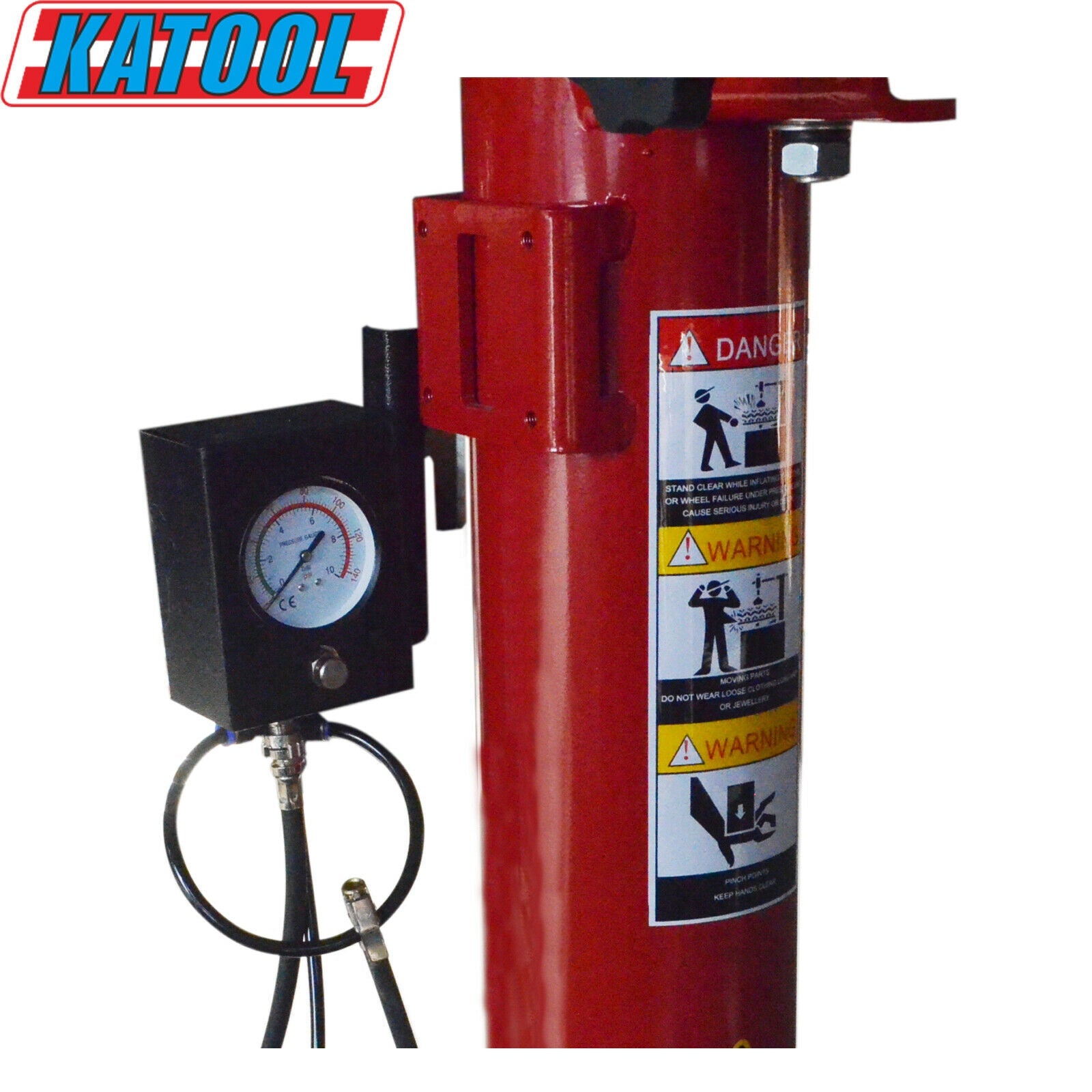

Pedal-controlled operation makes inflation and tire tasks intuitive and efficient.
-
Protective covers on heads and clamps help prevent rim damage.

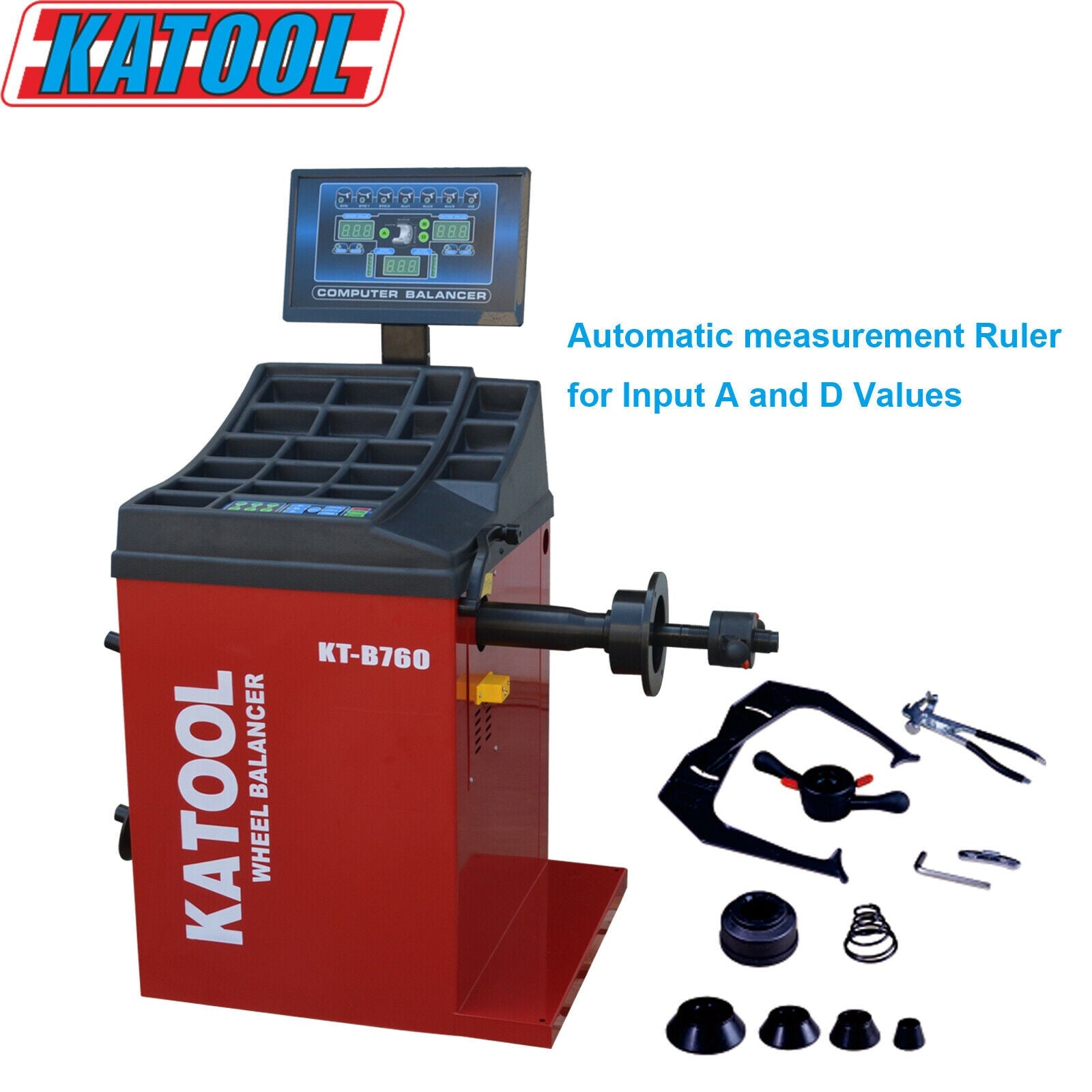

Precision Wheel Balancer (KT-B760)
-
Self-calibrating design with built-in diagnostics for easier setup and accurate results.
-
Multiple balance modes for various rim types.
-

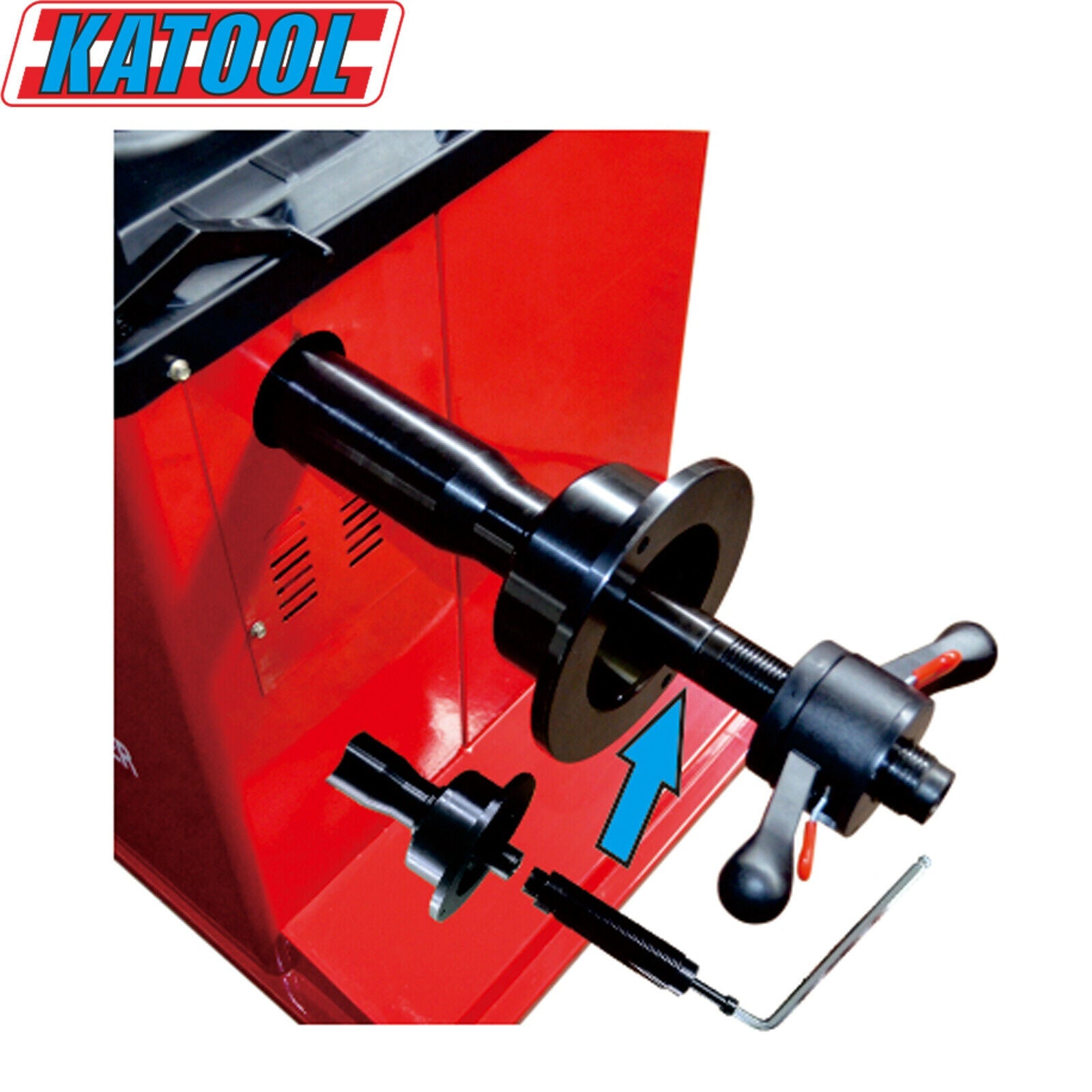

Heavy-duty steel construction and high-strength shaft improve balance reliability.
-
Optional wheel guard for safer operation and cleaner workspace.

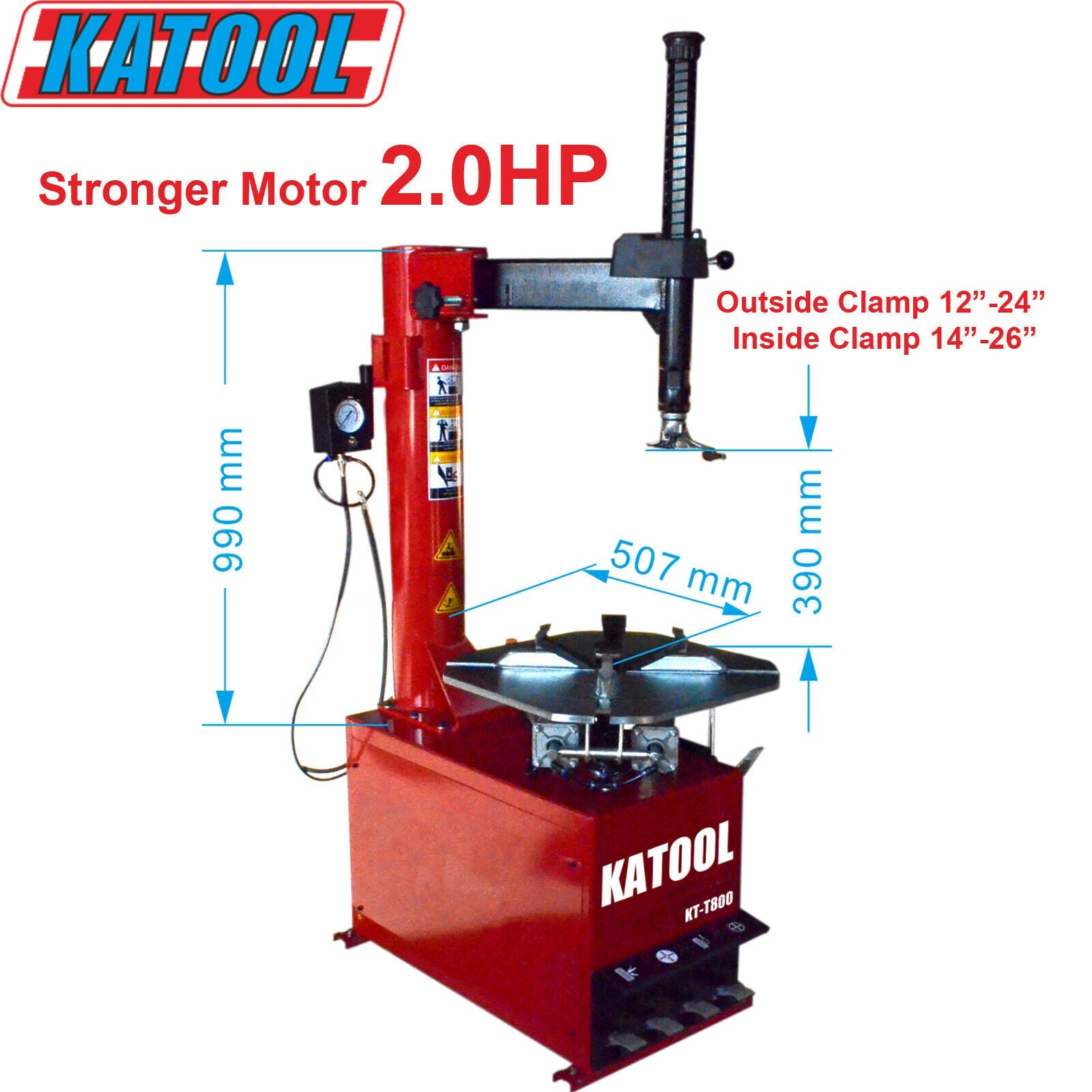

KT-T800 Tire Changer Specifications
| Specification |
Value |
| Max Wheel Diameter |
41″ / 1040 mm |
| Max Wheel Width |
15″ / 380 mm |
| Outside Clamp Range |
12″–20″ |
| Inside Clamp Range |
14″–24″ |
| Motor Power |
2.0 HP / 1.5 kW |
| Rotation Speed |
6.8 rpm |
| Power Supply |
110 V / 1 Phase |
| Air Pressure Requirement |
0.8–1.0 MPa (116–145 psi) |
| Net Weight |
~186 kg / 410 lbs |
KT-B760 Wheel Balancer Specifications
| Specification |
Value |
| Rim Diameter Capacity |
< 30″ |
| Wheel Width Range |
3″–12″ |
| Max Wheel Diameter |
< 880 mm / 34.64″ |
| Balancing Speed |
180 rpm |
| Balancing Accuracy |
±1 g |
| Power Supply |
110 V / 1 Phase |
| Motor Power |
0.25 kW |
| Rim Center Hole Diameter |
< 135 mm / 5.31″ |
| Max Wheel Weight |
< 65 kg / 143 lbs |
| Measuring Time |
~7 seconds |
Why Choose This Combo?
Complete Tire Service Capability – Mount, dismount, and balance wheels all with one integrated system.
Heavy-Duty Construction – Built to withstand frequent use in shop environments.
Precise Results – Automatic balancer calibration and advanced sensor design provide accurate balancing for smoother rides.
User-Friendly Operation – Pedal controls and intuitive balancer interface reduce training time and speed workflow.
