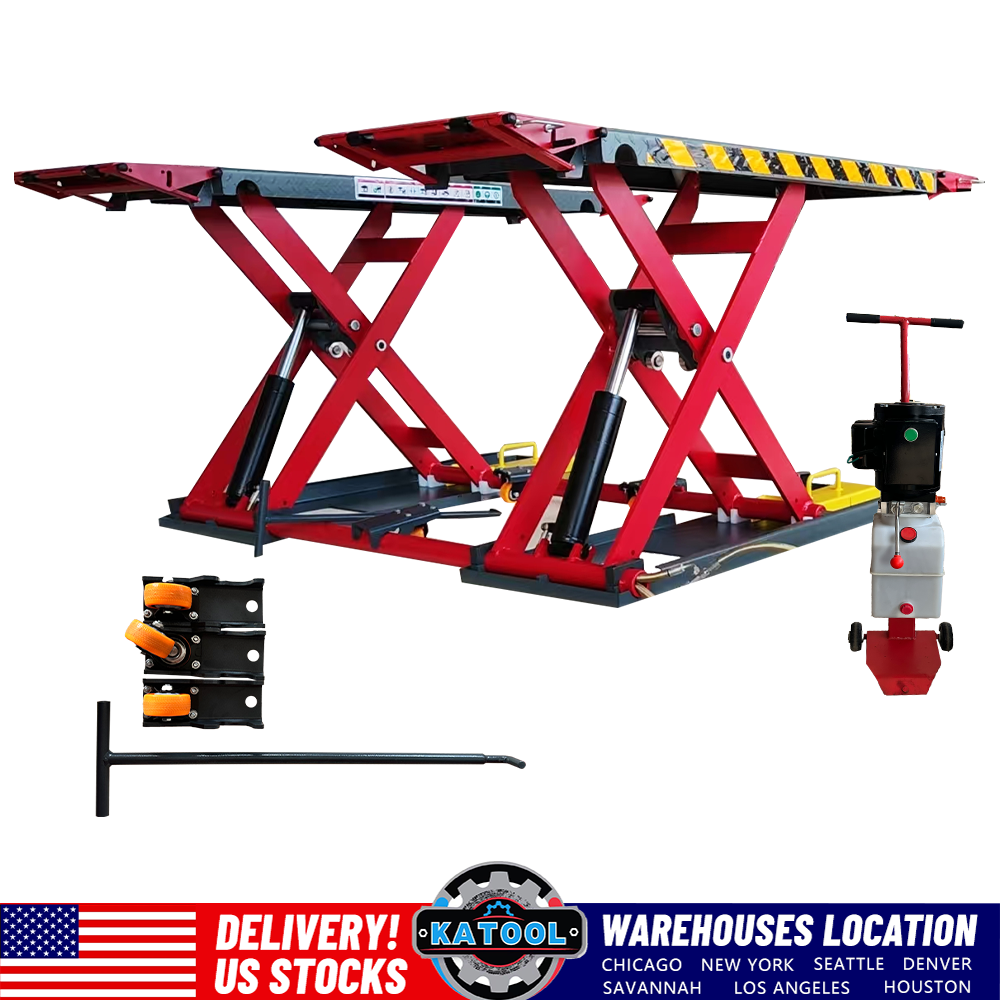

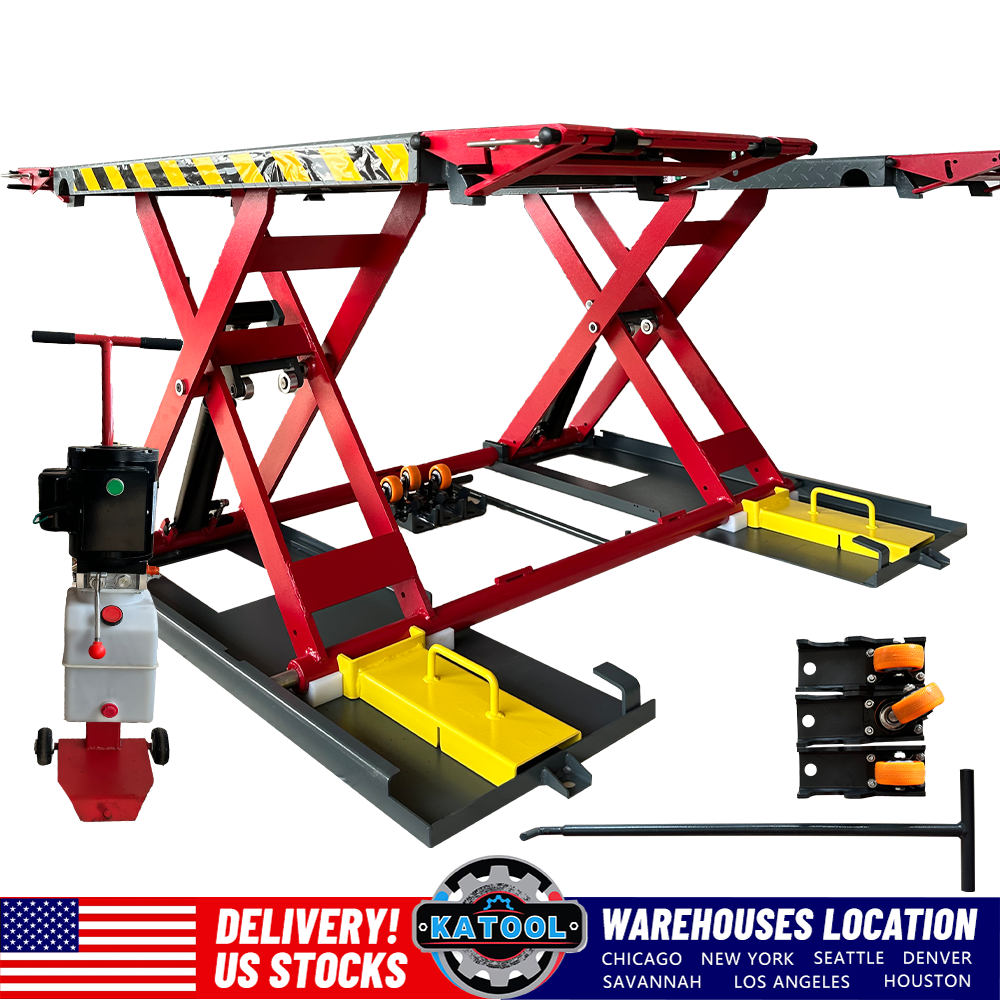

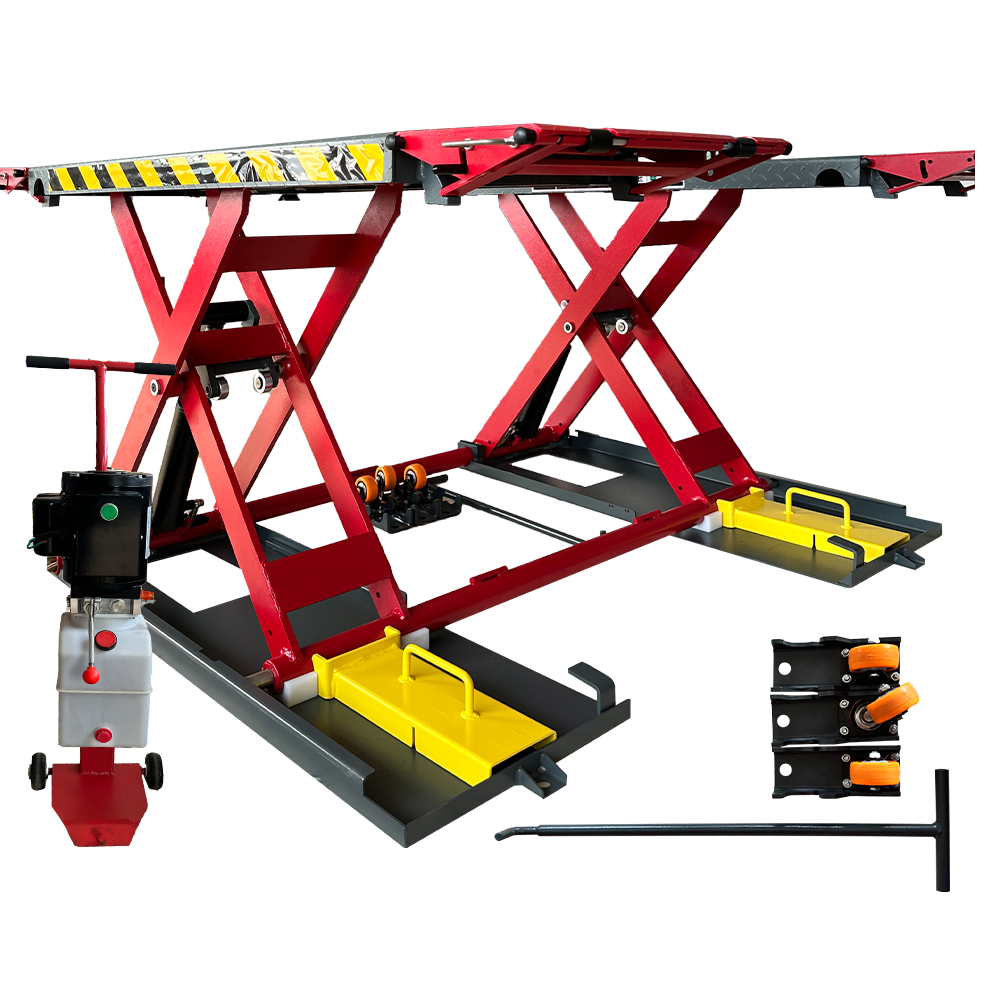

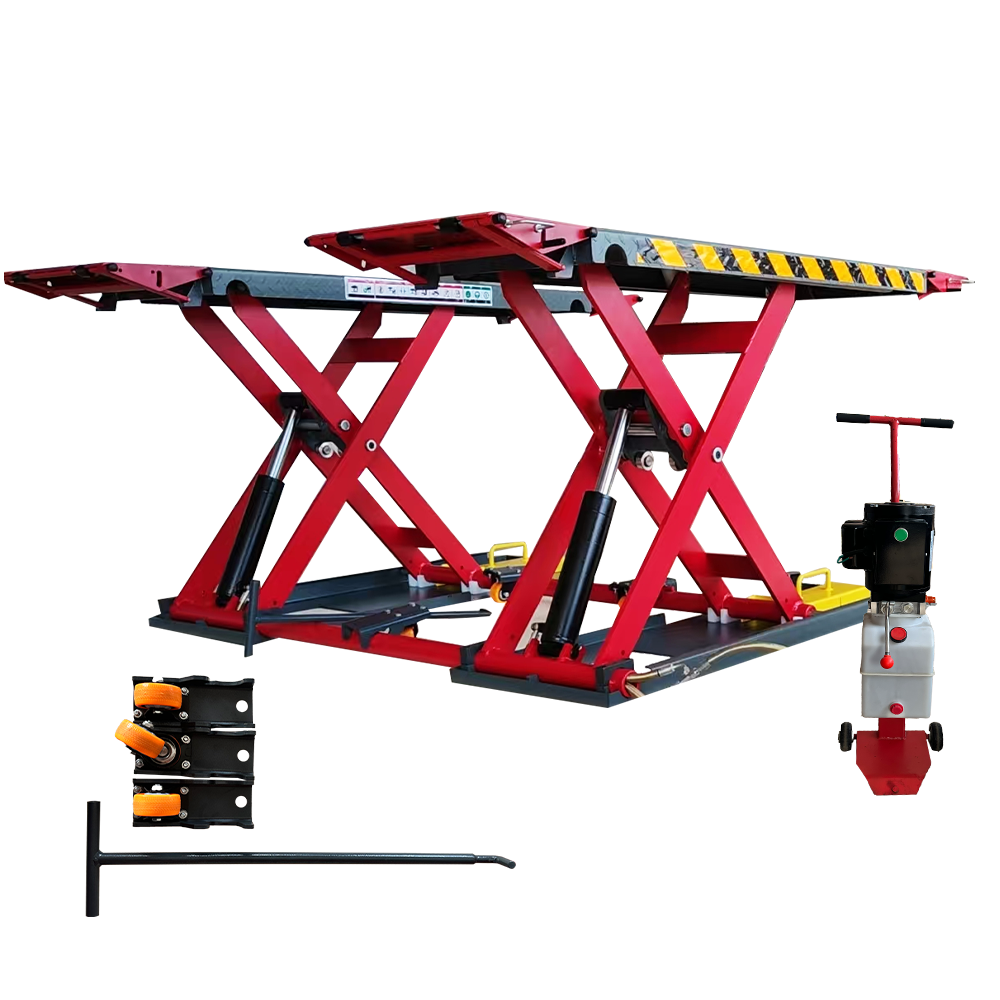

Katool Scissor Auto Lift X77 — Mid-Rise Scissor Auto Lift for Garage & Workshop
Elevate your shop’s productivity with the Katool X77 Scissor Auto Lift, a commercial-grade mid-rise lift engineered for reliable everyday vehicle maintenance. Whether you’re performing brake work, oil changes, tire service, or general under-car inspections, the X77 delivers stable, ergonomic lifting performance for cars, SUVs, and light trucks.
Key Features
-
Heavy-Duty Construction — Reinforced steel scissor frame for long-lasting durability in busy shop environments.
-

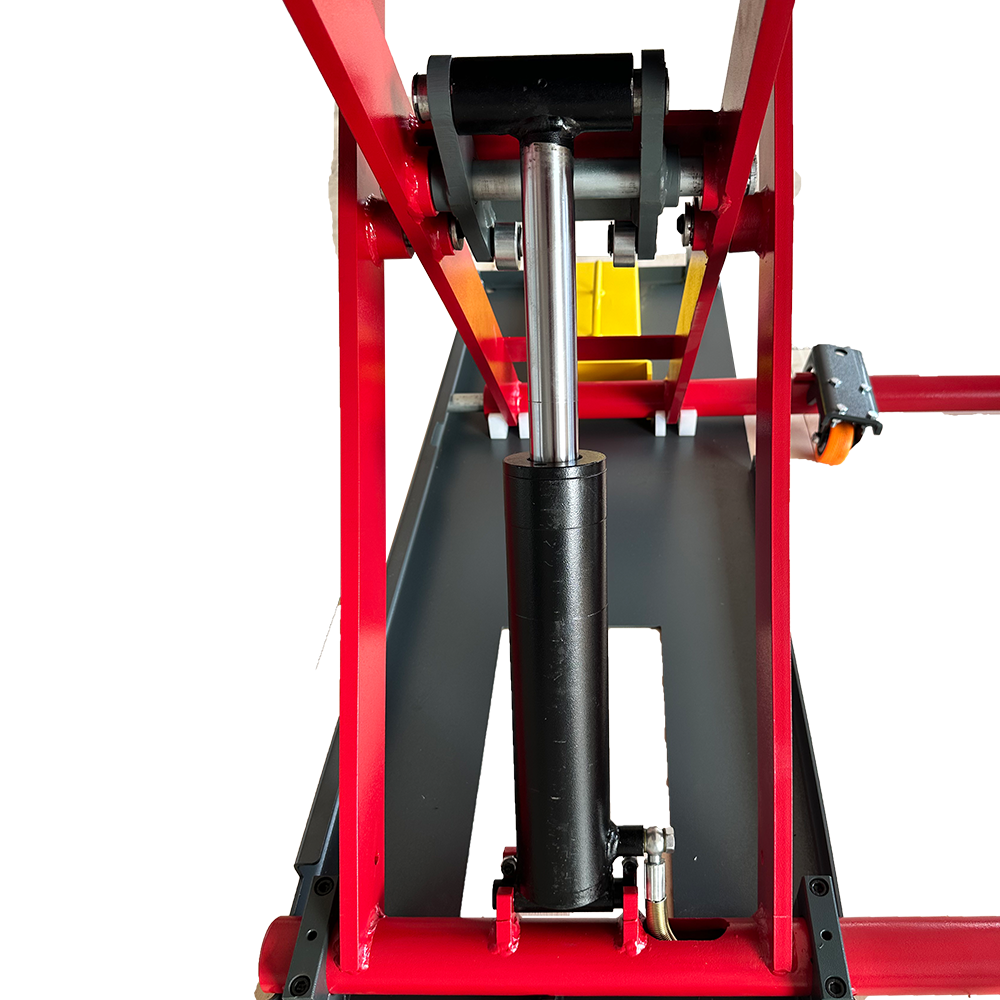

Smooth Hydraulic Lifting — Consistent power delivery and reliable performance for frequent cycles.
-
Wide, Stable Platform — Expansive lifting footprint designed for stability and safety.
-
Electric or Hydraulic Release — Easy height control and safe descent mechanisms.
-

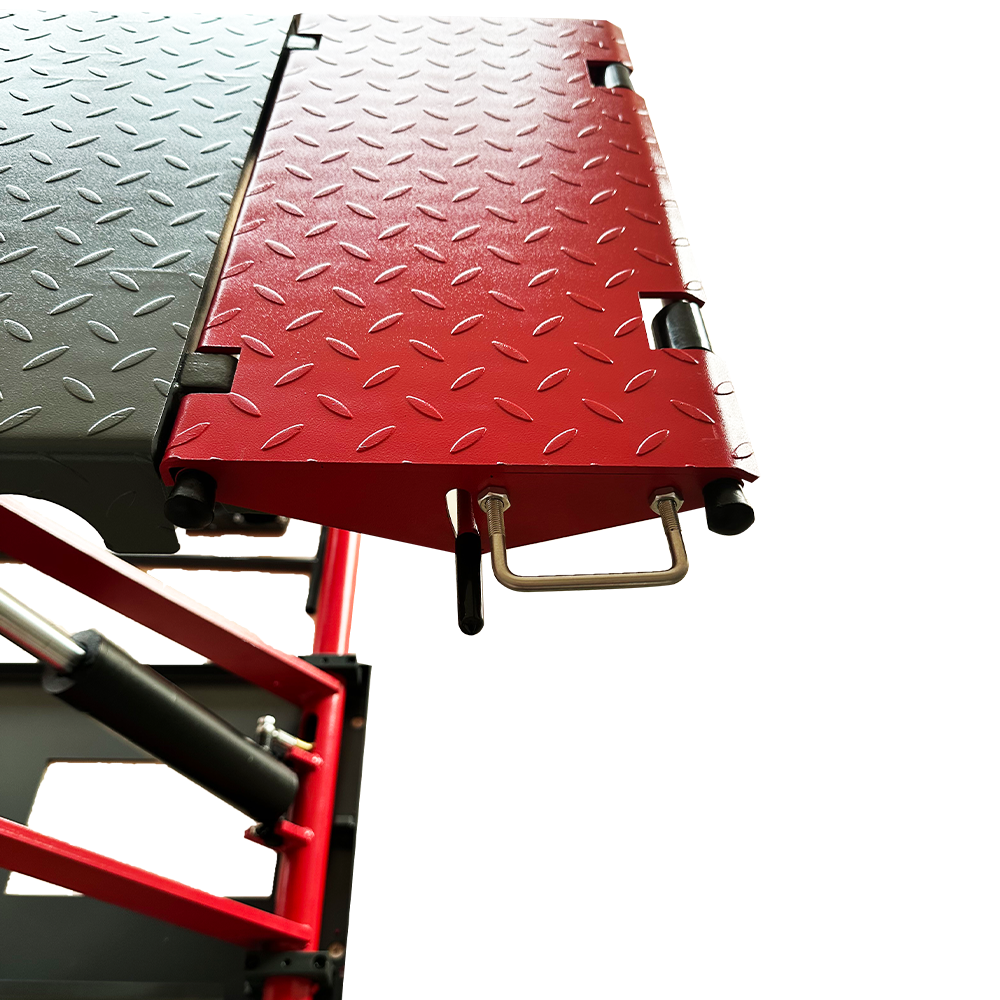

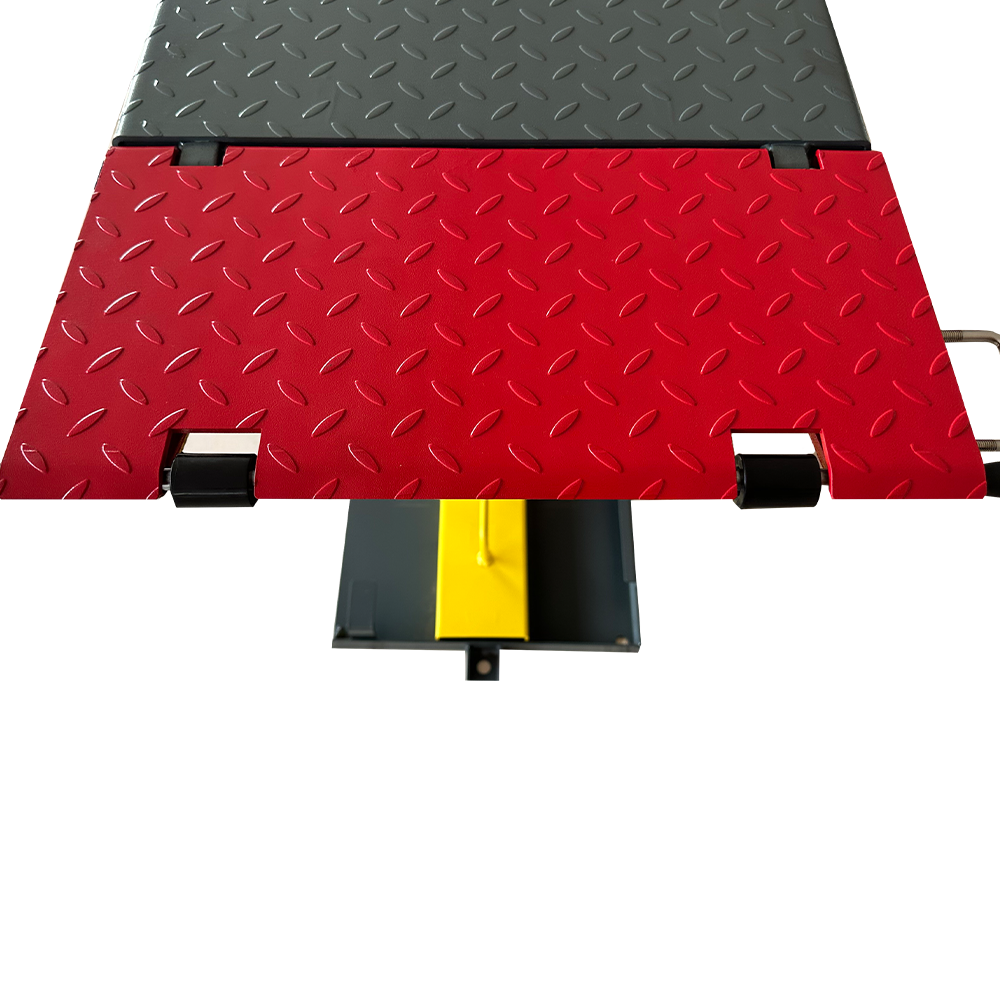

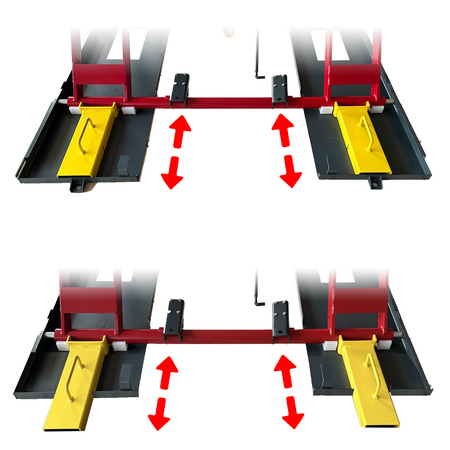

Drive-Up Capability — Designed to accommodate a range of wheelbases and vehicle types.
Built for Garage Versatility
The X77 combines professional-grade construction with user-friendly operation, making it a great choice for:
| Lifting Capacity |
7,000 lbs (3,200 kg) |
| Maximum Lifting Height |
39.37" (1,000 mm) |
| Lowered Height |
4.25" (110 mm) |
| Lifting Time |
30 seconds |
| Overall Width |
72.83" (1,850 mm) |
| Platform Width |
20.87" (530 mm) |
| Platform Length |
74.8"–81.5" (1,900–2,070 mm) |

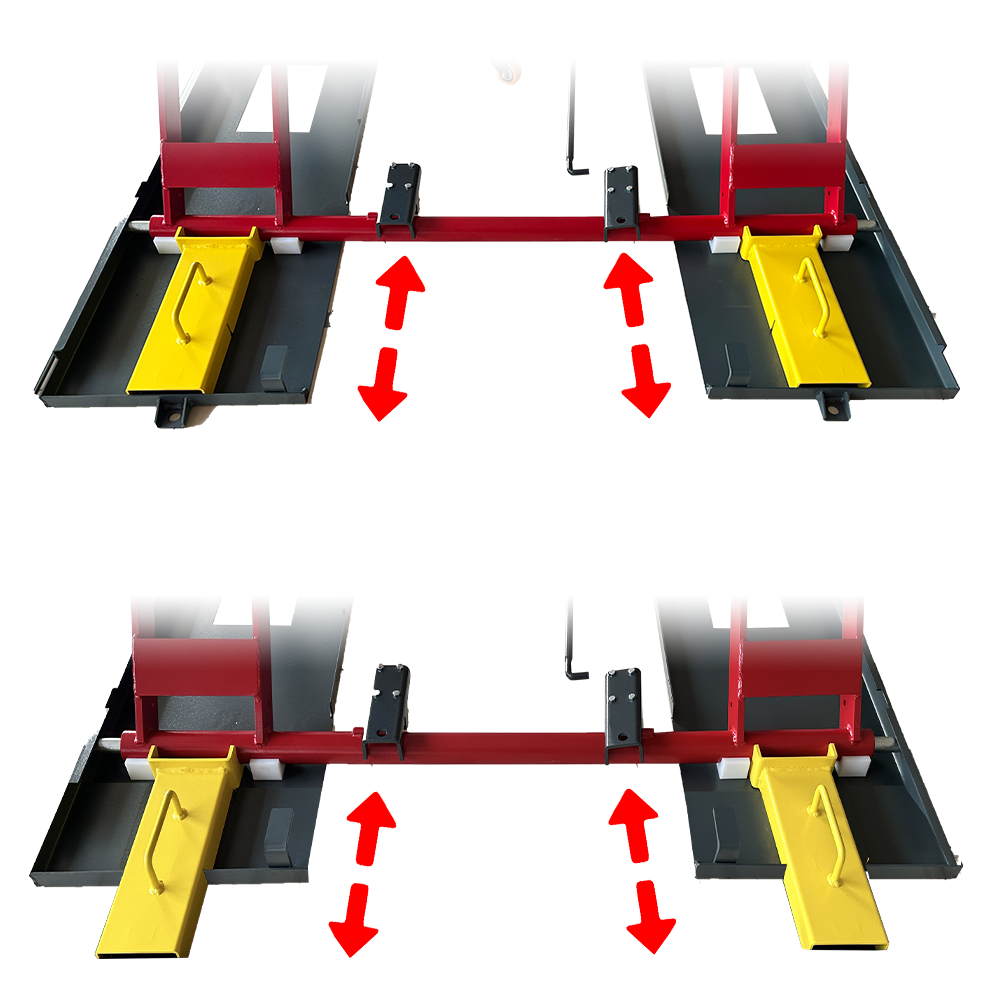

| Width Between Platforms |
31.1" (790 mm) |
| Product Dimensions |
81.5 × 72.83 × 39.37 in (2,070 × 1,850 × 1,000 mm) |
| Load Type |
Universal drive-on scissor lift |
| Material |
Heavy-duty alloy steel construction |
| Air Supply |
85–120 psi (6–8 bar) |
| Motor |
110V/220V AC, 60Hz, Single Phase (1PH) |
| Operation |
Electric hydraulic lift with safety release mechanism |
| Shipping Weight |
Scissor Lift: 1,059 lbs (480 kg)
Pump Unit: 133 lbs (60 kg)
Total: 1,192 lbs (540 kg)
|
| Safety Features |
Built-in mechanical locking and safety release system |
