Katool X85 Mid-Rise Scissor Lift — Specification Sheet
Product Overview:

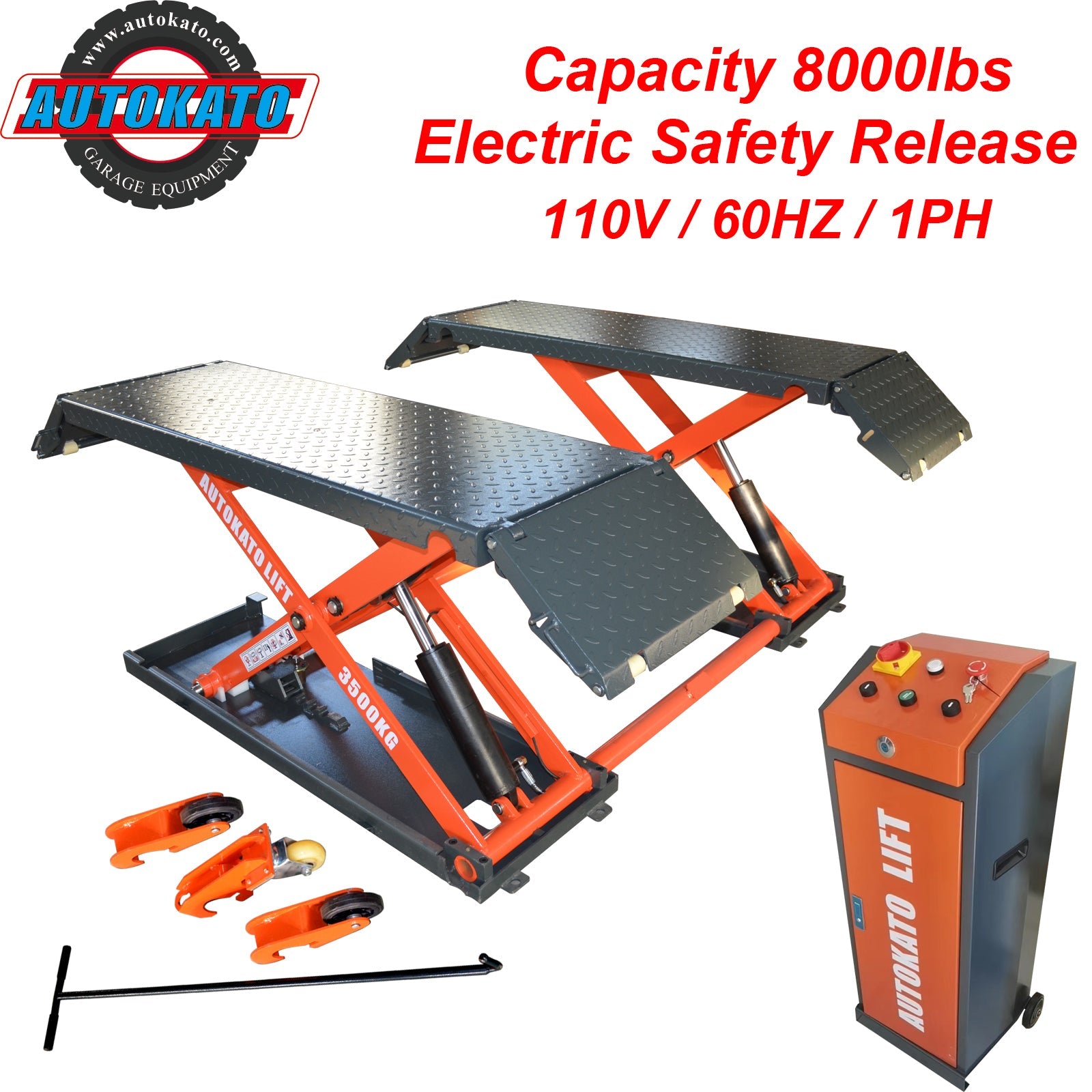

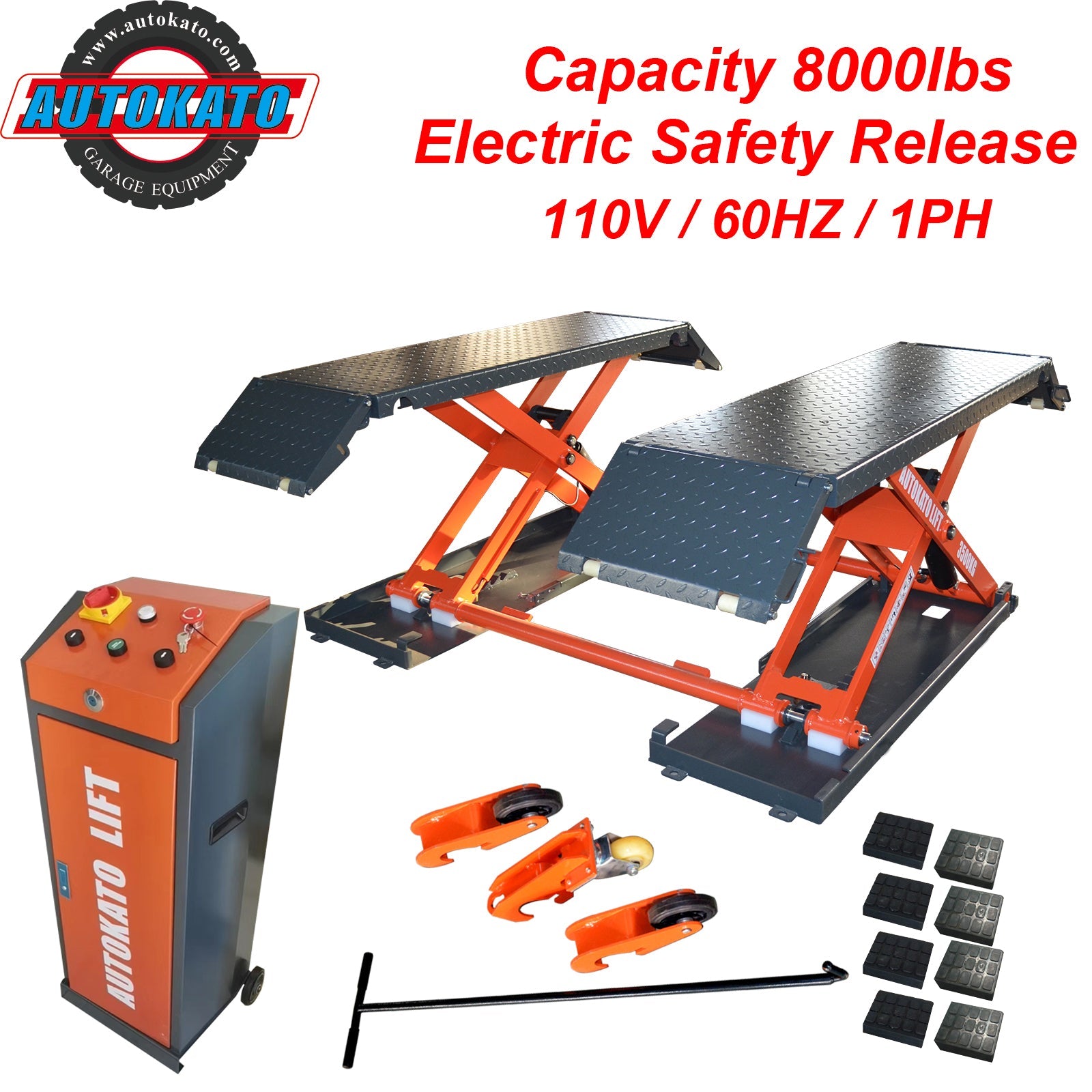

The Katool X85 Mid-Rise Scissor Lift is an 8,000 lb (3,500 kg) capacity hydraulic scissor lift designed for automotive shops, performance garages, and well-equipped home garages. It delivers a practical working height for brake service, suspension work, tire access, and undercar inspections while maintaining a compact footprint and mobile capability.
Key Features
-
Mid-Rise Lifting Capacity — Offers an ideal working lift height for undercar service and maintenance while keeping vehicles stable and accessible.
-
Durable Steel Construction — Reinforced scissor structure for long-lasting strength and everyday shop use.
-
Hydraulic Drive System — Smooth, controllable lifting and lowering for safe, efficient service workflows.
-
Low-Profile Platforms — Easy drive-on access even with lowered and performance cars.
-
Space-Saving Design — Compact footprint fits in tighter shop spaces or garages where full lifts won’t.
-
Mechanical Safety Locks — Multi-position safety lock system engages automatically at working height.
-
Professional Shop Rated — Built for busy environments with repeat lifting cycles.
Designed for Versatility
The X85 Mid-Rise Scissor Lift is ideal for shops of all sizes that need dependable, mid-height lifting for daily under-vehicle work without sacrificing floor space. Whether you’re doing brake jobs, suspension service, exhaust work, or detailed undercar inspections, the X85 gives you the access you need at a height that’s comfortable and efficient for techs.
Suggested Applications
-
Brake and wheel service
-
Suspension and steering repair
-
Exhaust and driveshaft access
-
Oil changes and preventive inspections
-
Performance and tuning bays
Why Choose Katool?
Katool Automotive Equipment builds shop equipment that balances strength, reliability, and value. The Katool X85 Mid-Rise Scissor Lift continues that tradition—offering professional performance in a practical, space-efficient package that fits both commercial shops and well-equipped home garages.
| Specification |
Detail |
| Model |
Katool X85 Mid-Rise Scissor Lift |
| Rated Lifting Capacity |
8,000 lb / 3,500 kg |

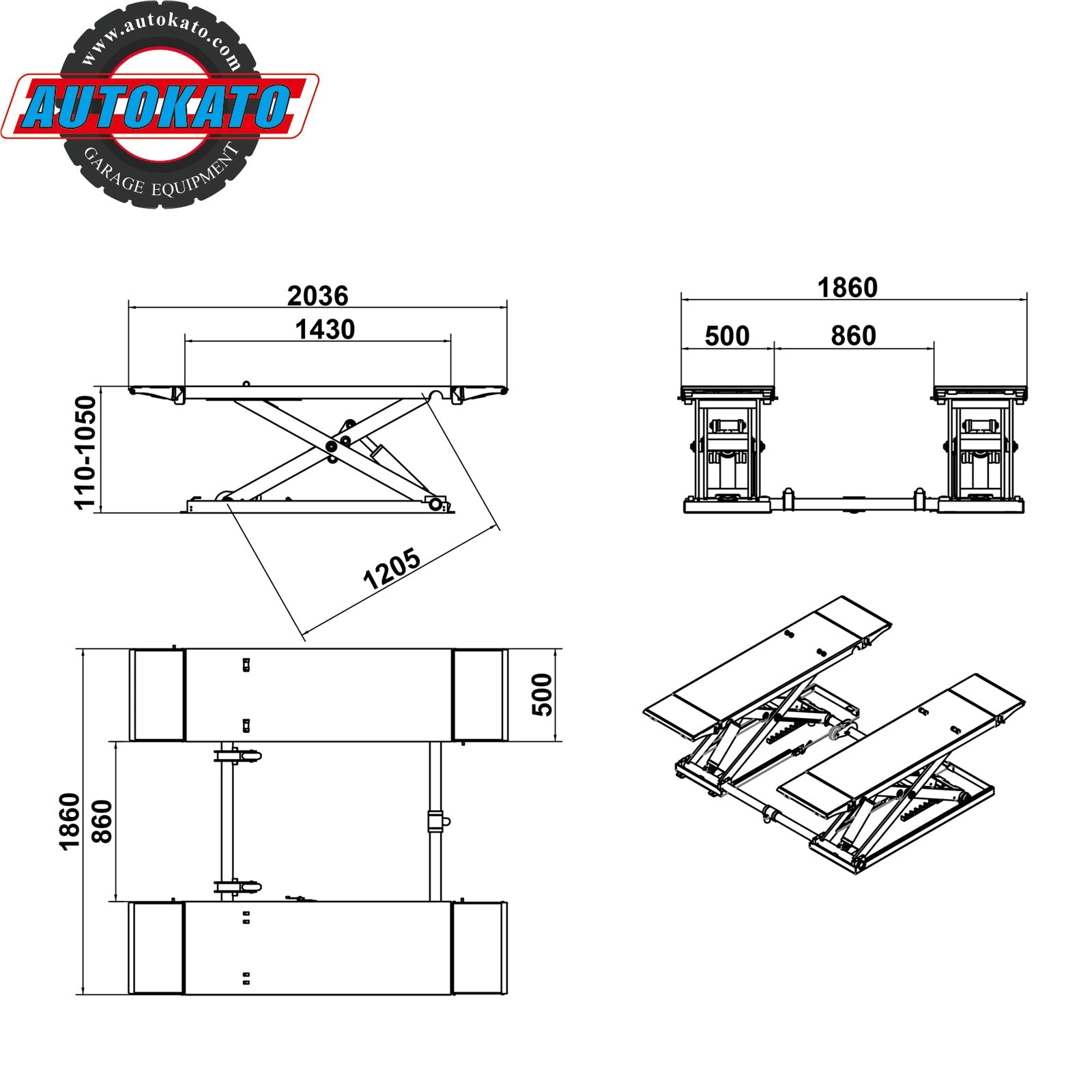

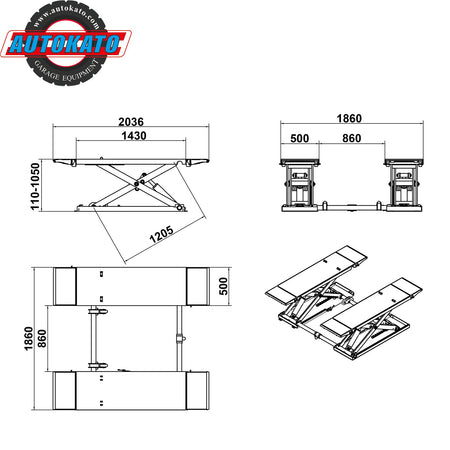

| Maximum Lifting Height |
40.15 in / 1,020 mm |
| Minimum Height (Lowered) |
4.25 in / 110 mm |
| Platform Length |
57 in / 1,450 mm |
| Overall Length |
83.5 in / 2,120 mm |
| Platform Width |
20.5 in / 520 mm |
| Overall Width |
76.75 in / 1,950 mm |
| Motor / Power |
110 V or 220 V AC, 60 Hz, 1 PH |

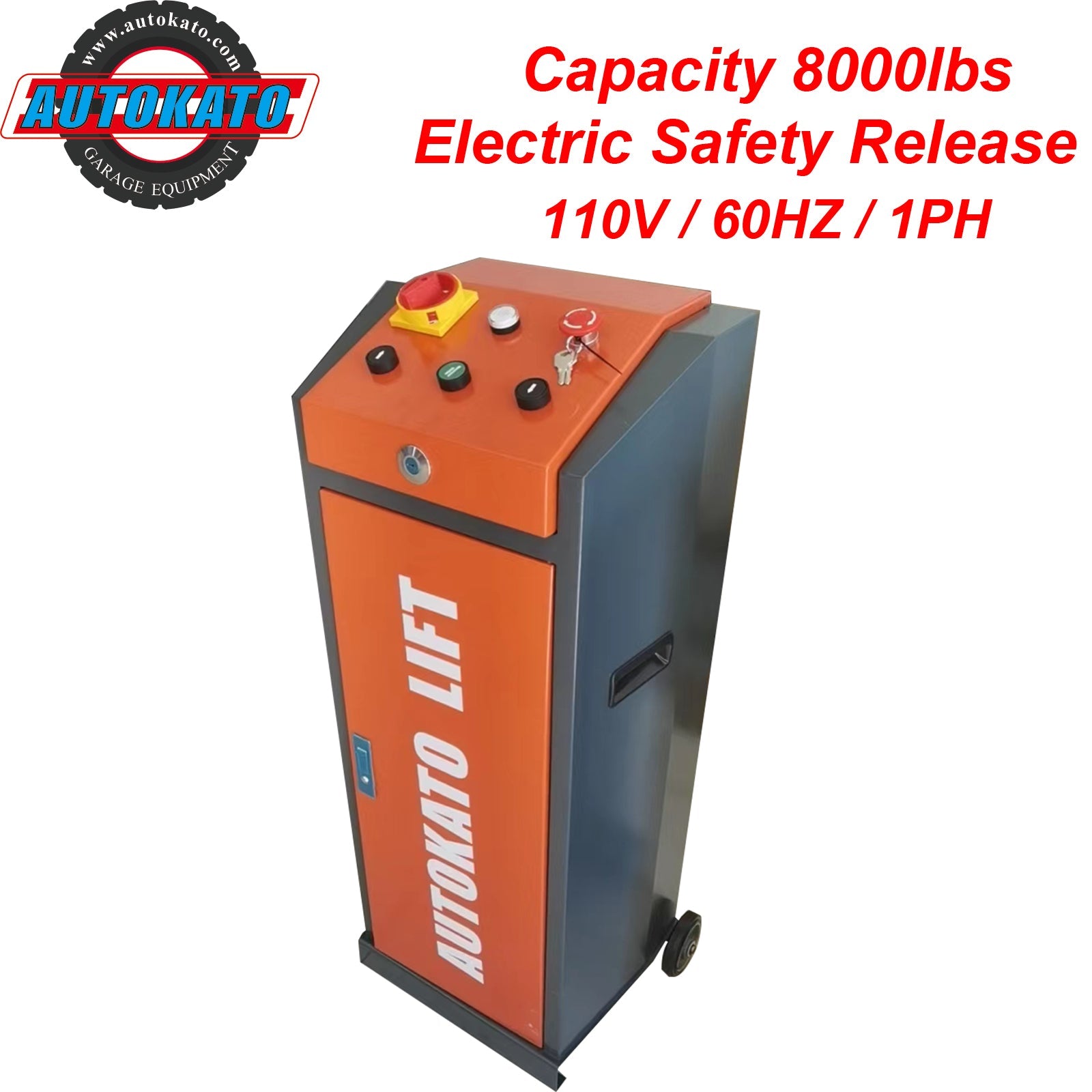

| Control System |
24 V safe lock control system |
| Safety Release |
Electric safety release |
| Certification |
CE Approved (115% dynamic / 150% static tested) |
| Additional Features |

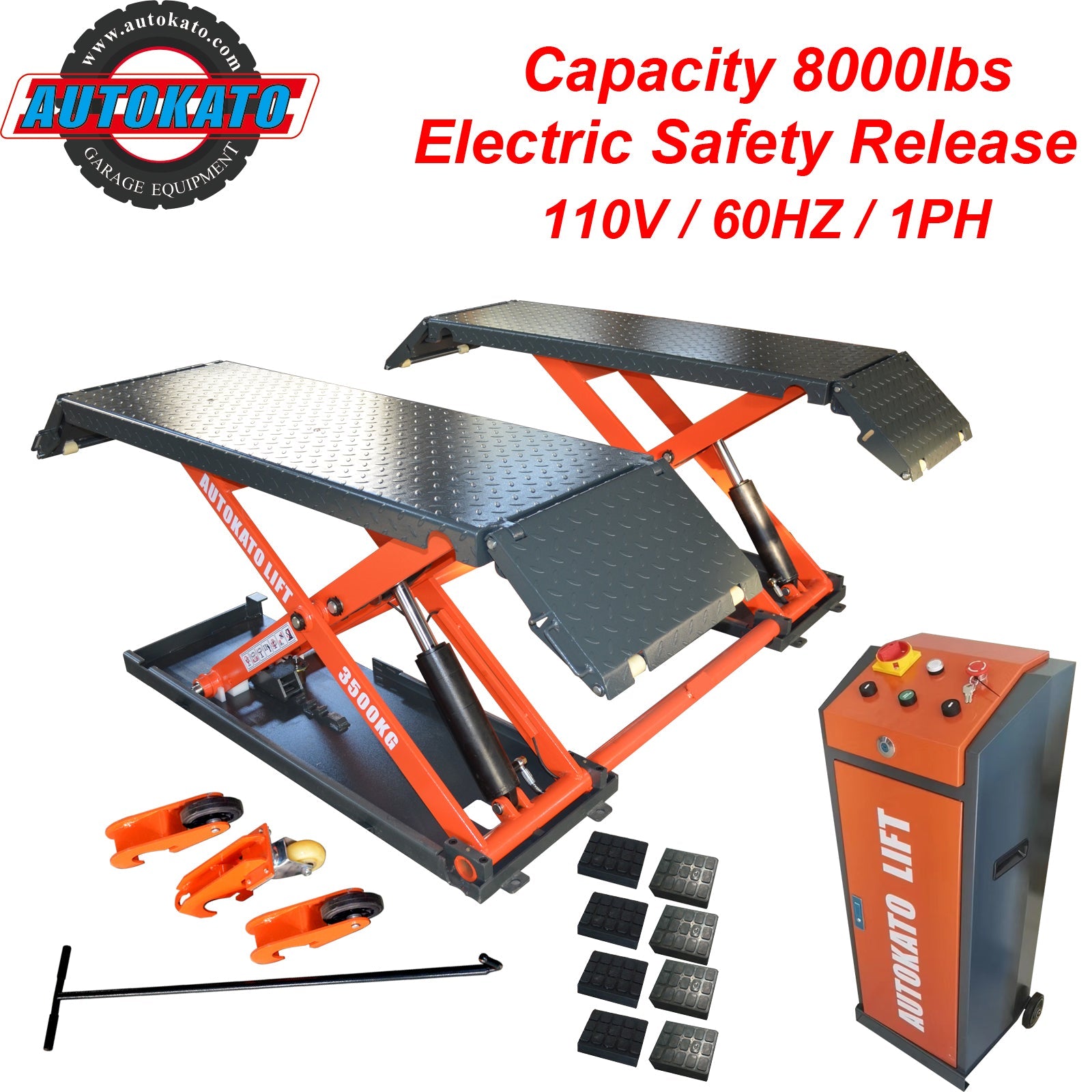

Composite rubber lifting blocks included, height limit switch, self-lubricated bushings & bearings, portable mobile kit included |
| Net Weight |
Approx. 1,213 lb / 550 kg |
Your Auto Lift ships on a LTL common carrier freight company. It is taken to your location on a 48 foot semi truck. Please note the following before making your purchase:
You are responsible for unloading the lift from the truck. The truck driver does not unload it for you.
Lift Gate delivery service is not available for auto lifts.
You cannot unload an auto lift from the truck by hand. You must have machinery that can lift the full weight on your auto lift for unloading from the truck. Fork Lift, Bobcat, Tractor, Tow Truck, Back Hoe are all good options.
If you cannot unload from a truck, we can ship to our carrier's nearest freight terminal for you to pickup with a trailer or moving van.
You are responsible for calling the freight company to make a delivery appointment. We don't know your schedule so we can't do this for you.
Free shipping does not include shipping to Government Secure Locations, State and National Parks, Construction Sites, Islands, Alaska or Hawaii.
When your lift ships, we will email you the carrier information and tracking number. Freight shipping is slower than small package shipping and can take 3-14 days depending on your location so please be patient.
