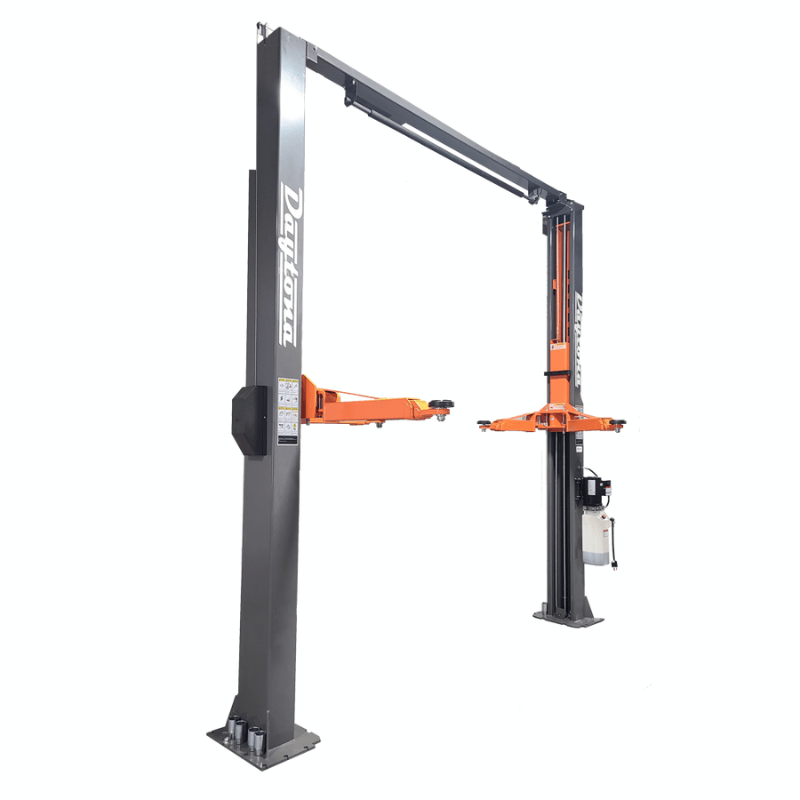

Daytona LTPA12 12,000lb 2 Post

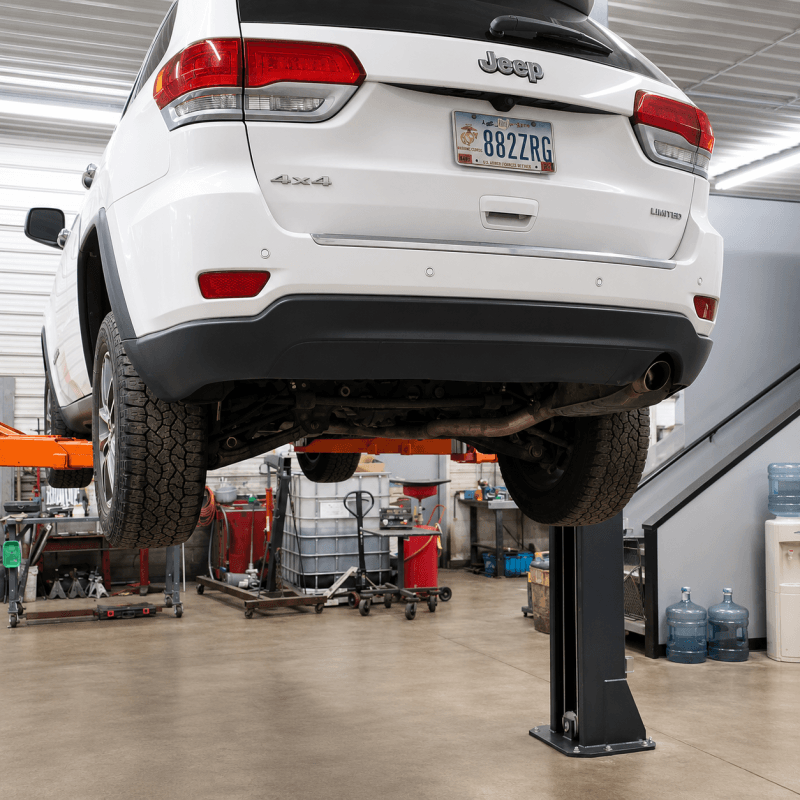

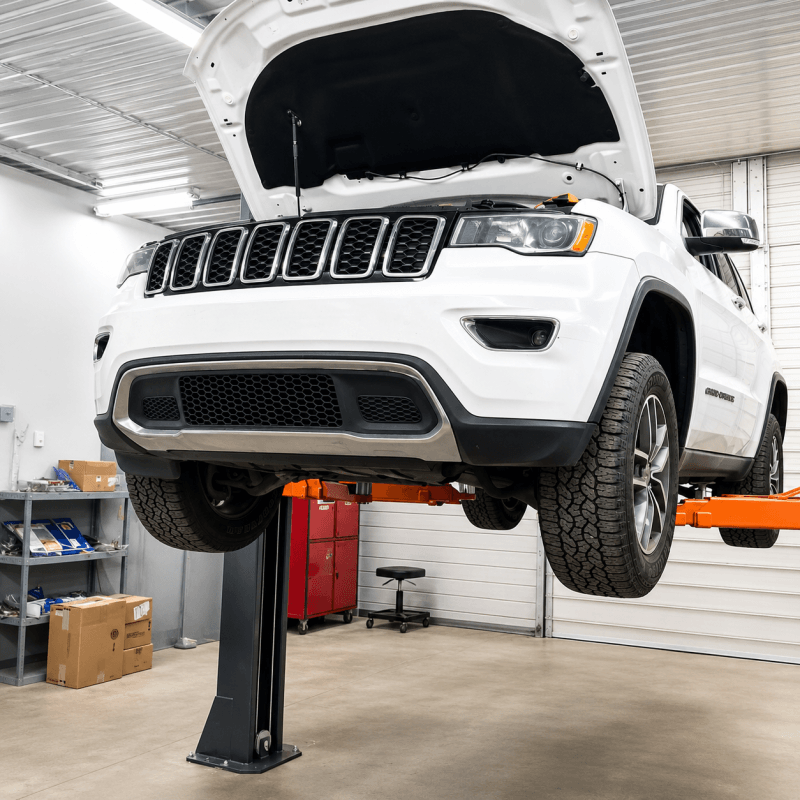

The Daytona LTPA12 12,000 lb Adjustable 2-Post Lift is engineered for professional automotive shops that require strength, flexibility, and dependable safety when servicing heavier vehicles. With a robust 12,000 lb lifting capacity, this adjustable 2-post lift is well-suited for cars, trucks, and commercial vehicles, making it a versatile solution for modern repair facilities.
Built for durability and long-term performance, the LTPA12 features dual direct-drive hydraulic cylinders with cable equalization for smooth, balanced lifting. Automatic safety locks with a single-point release system enhance operator safety, while high polymer polyethylene wear-resistant slide blocks reduce friction and maintenance. Additional shop-focused details—including a height limit switch, rubber door guards, and a durable powder coat finish—support reliable daily operation.
Ideal for professional repair shops, fleet service centers, and truck-focused garages, the Daytona LTPA12 offers adjustable width settings to accommodate different vehicle sizes and shop layouts. Three-stage front and rear arms, standard truck adapters, and the option to add a 2-foot height extension kit provide flexibility for evolving service needs, making this lift a dependable, shop-ready investment.
LTPA-12 Specification
-
Max Capacity: 12,000 lbs
-
Maximum Lifting Height: 68.9"
-
Minimum Lifting Height: 3.9"
-
Overall Height: 141.7"
-
Overall Width: 150.3" to 162.1"
-
Drive-Thru Clearance: 107", 113", or 119"
-
Width Between Columns: 122" to 133.9"
-
Internal Base Width: 140.9" to 152.7"
-
Arm Reach: 32.3" to 63.8"
-
Motor: 3 HP
-
Voltage: 240V
-
Amperage: 13A
-
Power Phase: Single Phase (PH1)
-
Frequency: 60Hz
-
Main Lift Shipping Dimensions: 138" x 22" x 41" - 2,400lbs
-
Pump Shipping Dimensions: 31" x 11" x 12"
-
Pump Shipping Weight: 60 lbs
-
Optional Height Kit Shipping Dimensions: 32" x 15" x 18"
-
Optional Height Kit Shipping Weight: 210 lbs
-
Control Box Height: 66.5"
-
Safety Lock Release Height: 59.7"
-
Base Plate Footprint: 18.7" x 20.9"
-
Base Plate Thickness: 0.8"
- Concrete Requirements: Minimum of 4"-3500psi
LTPA 12 12,000lb 2-Post Adjustable Lift Special Features
-
12,000 lb lifting capacity for cars, trucks, and commercial vehicles
-
Automatic safety locks with single-point lock release system
-
Dual direct-drive hydraulic cylinders for smooth, balanced lifting
-
High polymer polyethylene wear-resistant slide blocks
-
Three-stage front and rear arms for flexible vehicle positioning
-
Screw-up pads for precise lifting height adjustment
-
Height limit switch for added overhead protection
-
Full-length rubber door guards
-
Durable powder coat finish for long service life
-
Standard truck adapters included
-
Optional 2 ft height extension kit available (sold separately)
