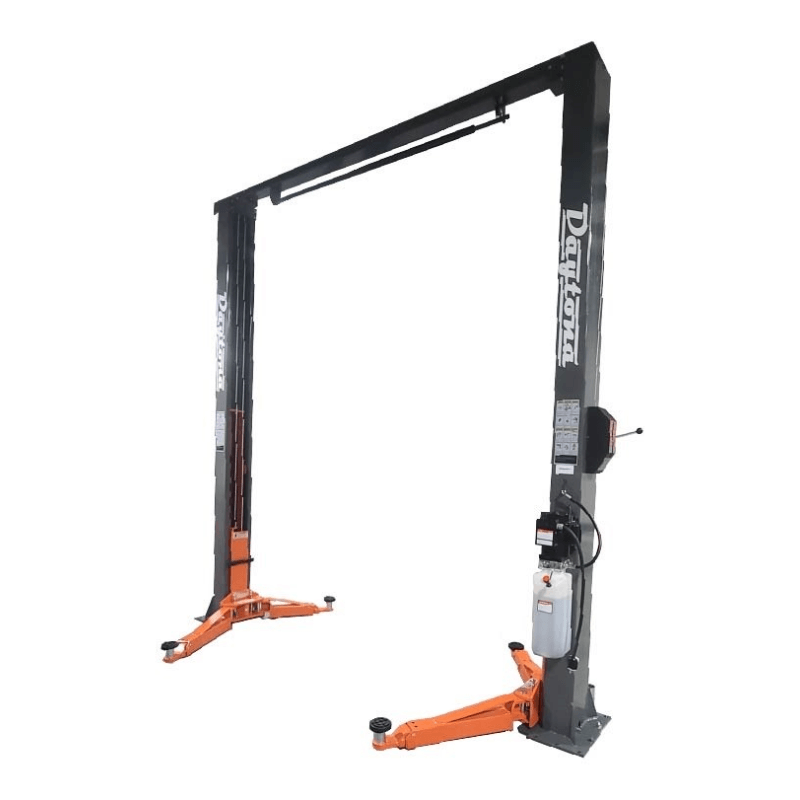

Daytona LTPO15 15,000lb 2-Post Overhead Lift
The Daytona LTPO15 15,000 lb Overhead 2-Post Lift is engineered for professional shops that service heavier vehicles and demand maximum lifting strength with proven safety. With a full 15,000 lb lifting capacity when the arms are fully extended, this overhead-style 2-post lift is ideal for trucks, commercial vehicles, and high-capacity service applications.
Built with durability and smooth operation in mind, the LTPO15 features dual direct-drive hydraulic cylinders and high polymer polyethylene wear-resistant slide blocks to reduce friction and extend service life. Automatic safety locks with a single-point lock system provide secure lifting and controlled lowering, while practical additions such as screw-up pads, a height limit switch, and full rubber door guards enhance daily shop safety and efficiency.
Designed for professional repair facilities, fleet service centers, and truck-focused shops, the Daytona LTPO15 includes standard truck adapters and comes equipped with a 2-foot height extension kit as part of the package. This overhead lift must be assembled with the included height kit, ensuring proper cable and hose fitment and delivering the clearance required for demanding heavy-duty service environments.
LTPO15 Specification
-
15,000 lb lifting capacity
-
Maximum lifting height: 74.8"
-
Minimum pad height: 3.9" – 7.48"
-
Overall height: 176.8"
-
Overall width: 152.8"
-
Overall floor width: 163.0"
-
Width between columns: 133.9"
-
Drive-thru width: 119.2"
-
Column base width: 18.1"
-
Column offset distance: 9.5"
-
Overhead clearance: 6.5"
-
Base plate thickness: 0.8"
-
Arm reach range: 35.4" – 70.8"
-
Arm sweep width: 23.6"
-
Inner arm clearance: 13.5"
-
Lower column height: 65.6"
-
Power: 240V / 3HP / 13A / Single Phase / 60Hz
- Concrete Requirements: Minimum of 8"-3000psi
-
Shipping Dimensions:
-
Lift: 155″ × 25″ × 40″ (2,700 lbs)
-
Pump: 31″ × 11″ × 12″ (60 lbs)
-
Height Kit: 26″ × 12″ × 18″ (200 lbs, included)
LTPO15 15,000lb 2-Post Overhead Lift Special Features
-
15,000 lb lifting capacity for heavy-duty vehicles
-
Overhead 2-post design for increased floor clearance
-
Automatic safety locks with single-point lock release
-
Dual direct-drive hydraulic cylinders for balanced lifting
-
High polymer polyethylene wear-resistant slide blocks
-
Three-stage front and rear arms for flexible vehicle positioning
-
Screw-up pads for precise lift adjustment
-
Height limit switch for added overhead protection
-
Full rubber door guards to prevent vehicle damage
-
Durable powder coat finish for long-term use
-
Standard truck adapters included
-
2 ft height extension kit included and required for assembly
